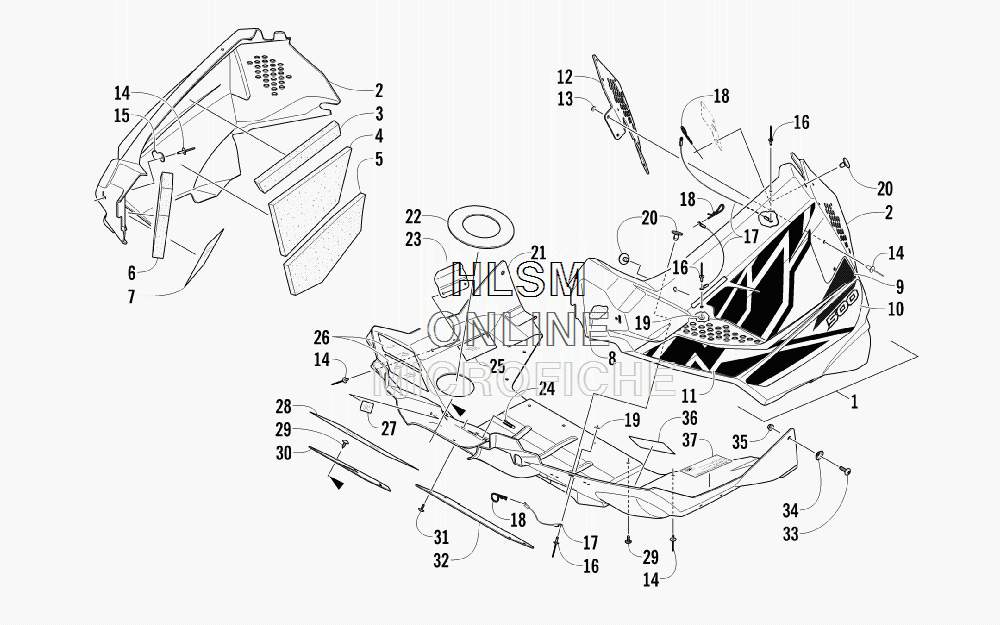

BELLY PAN ASSEMBLY для Arctic Cat SNO PRO 500 - 2012 года выпуска
-
№АртикулНазвание
-
13718-150 PANEL, SIDE - RIGHT W/DECALS (INC. 2-7 AND 9-11)PANEL, SIDE - RIGHT W/DECALS (INC. 2-7 AND 9-11)
-
13718-151 PANEL, SIDE - LEFT W/DECALS (INC. 2-6 AND 8-11)PANEL, SIDE - LEFT W/DECALS (INC. 2-6 AND 8-11)
-
23718-090 ...PANEL, SIDE - RIGHT W/O DECALS (INC. 3-7)...PANEL, SIDE - RIGHT W/O DECALS (INC. 3-7)
-
23718-091 ...PANEL, SIDE - LEFT W/O DECALS (INC. 3-6 AND 8)...PANEL, SIDE - LEFT W/O DECALS (INC. 3-6 AND 8)
-
30617-574 ......FOAM, SIDE PANEL - UPPER REAR - RIGHT......FOAM, SIDE PANEL - UPPER REAR - RIGHT
-
30617-575 ......FOAM, SIDE PANEL - UPPER REAR - LEFT......FOAM, SIDE PANEL - UPPER REAR - LEFT
-
40617-620 ......FOAM, SIDE PANEL - CENTER REAR - RIGHT......FOAM, SIDE PANEL - CENTER REAR - RIGHT
-
40617-621 ......FOAM, SIDE PANEL - CENTER REAR - LEFT......FOAM, SIDE PANEL - CENTER REAR - LEFT
-
50617-622 ......FOAM, SIDE PANEL - LOWER REAR - RIGHT......FOAM, SIDE PANEL - LOWER REAR - RIGHT
-
50617-623 ......FOAM, SIDE PANEL - LOWER REAR - LEFT......FOAM, SIDE PANEL - LOWER REAR - LEFT
-
60617-590 ......FOAM, SIDE PANEL - UPPER FORWARD - RIGHT......FOAM, SIDE PANEL - UPPER FORWARD - RIGHT
-
60617-591 ......FOAM, SIDE PANEL - UPPER FORWARD - LEFT......FOAM, SIDE PANEL - UPPER FORWARD - LEFT
-
72606-651 ......FOIL, PROTECTIVE......FOIL, PROTECTIVE
-
80617-593 ......FOAM, SIDE PANEL - LOWER FORWARD - LEFT......FOAM, SIDE PANEL - LOWER FORWARD - LEFT
-
99611-490 ...DECAL, PANEL - UPPER - RIGHT...DECAL, PANEL - UPPER - RIGHT
-
99611-491 ...DECAL, PANEL - UPPER - LEFT...DECAL, PANEL - UPPER - LEFT
-
109611-492 ...DECAL, PANEL - LOWER - RIGHT...DECAL, PANEL - LOWER - RIGHT
-
109611-493 ...DECAL, PANEL - LOWER - LEFT...DECAL, PANEL - LOWER - LEFT
-
119611-494 ...DECAL, PANEL - FORWARD - RIGHT...DECAL, PANEL - FORWARD - RIGHT
-
119611-495 ...DECAL, PANEL - FORWARD - LEFT...DECAL, PANEL - FORWARD - LEFT
-
126606-047 PANEL, REINFORCEMENTPANEL, REINFORCEMENT
-
130123-802 WASHERWASHER
-
148061-708 RIVETRIVET
-
152606-096 HOLD-DOWN, HOOD - RIGHTHOLD-DOWN, HOOD - RIGHT
-
151606-441 HOLD-DOWN, HOOD - LEFTHOLD-DOWN, HOOD - LEFT
-
168060-486 RIVETRIVET
-
170607-447 CABLECABLE
-
180605-283 CLIP, HAIRPINCLIP, HAIRPIN
-
198050-127 WASHERWASHER
-
205606-639 PIN, RETAINERPIN, RETAINER
-
216606-294 BELLY PANBELLY PAN
-
222612-507 SEAL, EXHAUST OUTLETSEAL, EXHAUST OUTLET
-
230607-892 BRACKET, LATCH - BELT GUARDBRACKET, LATCH - BELT GUARD
-
241623-030 CLIP, U-NUTCLIP, U-NUT
-
252606-558 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
262606-580 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
272606-007 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
282606-556 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
291623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
305606-954 PANEL, CLOSE-OFFPANEL, CLOSE-OFF
-
310623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
325606-872 COVER, ACCESSCOVER, ACCESS
-
338477-635 SCREW, MACHINESCREW, MACHINE
-
340623-870 SPACERSPACER
-
358427-602 NUT, LOCKNUT, LOCK
-
361611-565 DECAL, WARNING - CLUTCH GUARDDECAL, WARNING - CLUTCH GUARD
-
379611-680 DECAL, CLUTCHINGDECAL, CLUTCHING
