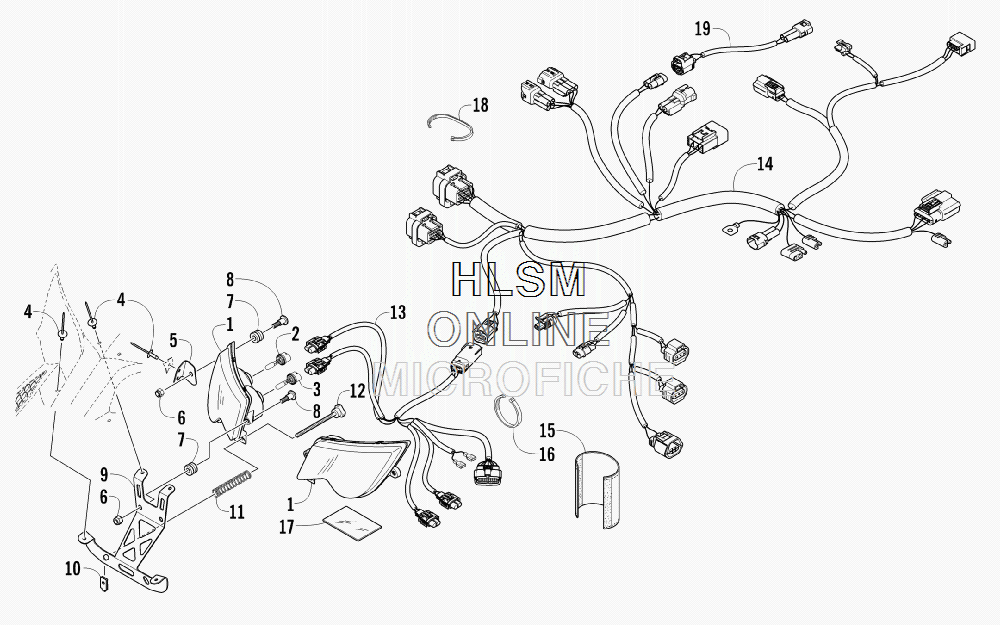

HEADLIGHT AND WIRING ASSEMBLY для Arctic Cat SNO PRO 500 - 2012 года выпуска
-
№АртикулНазвание
-
10609-852 HEADLIGHT ASSEMBLY - RIGHT (INC. 2-3)HEADLIGHT ASSEMBLY - RIGHT (INC. 2-3)
-
10609-853 HEADLIGHT ASSEMBLY - LEFT (INC. 2-3)HEADLIGHT ASSEMBLY - LEFT (INC. 2-3)
-
20409-073 ...BULB, HEADLIGHT...BULB, HEADLIGHT
-
30409-045 ...BULB, HEADLIGHT...BULB, HEADLIGHT
-
48061-508 RIVETRIVET
-
55606-390 BRACKET, HEADLIGHT - RIGHTBRACKET, HEADLIGHT - RIGHT
-
55606-391 BRACKET, HEADLIGHT - LEFTBRACKET, HEADLIGHT - LEFT
-
68427-602 NUT, LOCKNUT, LOCK
-
70423-447 GROMMETGROMMET
-
80423-356 SCREW, SHOULDERSCREW, SHOULDER
-
95606-392 BRACKET, HEADLIGHT - MIDDLEBRACKET, HEADLIGHT - MIDDLE
-
101623-052 CLIP, U-NUTCLIP, U-NUT
-
110623-360 SPRING, ADJUSTMENT - HEADLIGHTSPRING, ADJUSTMENT - HEADLIGHT
-
121623-024 SCREW, ADJUSTMENTSCREW, ADJUSTMENT
-
131686-587 HARNESS, HOODHARNESS, HOOD
-
141686-628 HARNESS, MAINHARNESS, MAIN
-
153706-761 WRAP, WIRE HARNESSWRAP, WIRE HARNESS
-
160123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
172606-556 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
180123-903 TIE, CABLE - 11.5 IN.TIE, CABLE - 11.5 IN.
-
191686-173 HARNESS, ADAPTER - COOLANT TEMPERATURE SENSORHARNESS, ADAPTER - COOLANT TEMPERATURE SENSOR
