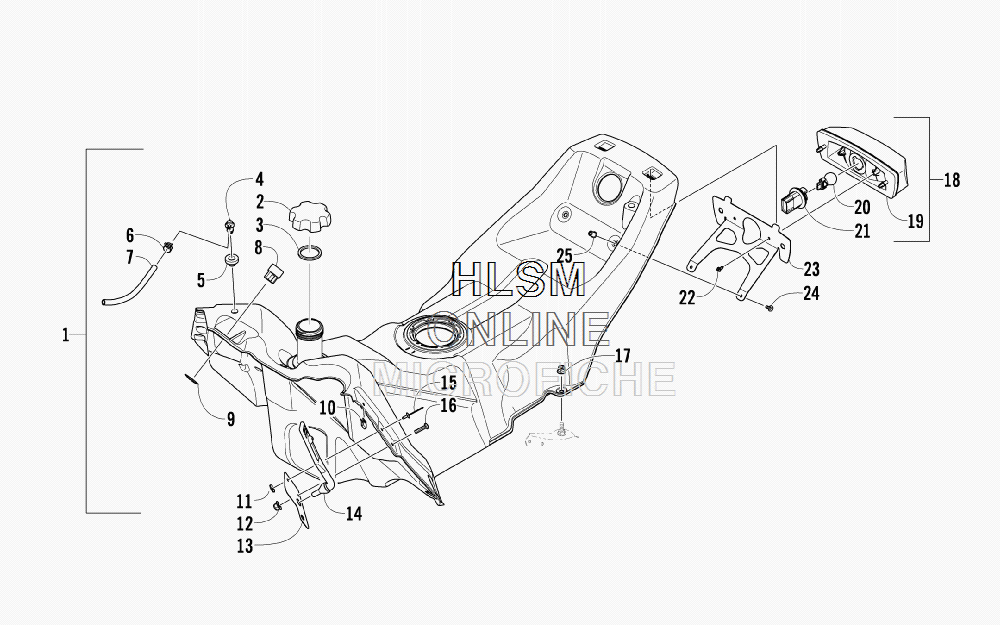

GAS TANK AND TAILLIGHT ASSEMBLY для Arctic Cat SNO PRO 500 - 2012 года выпуска
-
№АртикулНазвание
-
10770-939 TANK, GAS/SEATBASE (INC. 2-5)TANK, GAS/SEATBASE (INC. 2-5)
-
20470-438 ...CAP, GAS TANK (INC. 3)...CAP, GAS TANK (INC. 3)
-
30109-733 ......SEAL, GAS TANK CAP......SEAL, GAS TANK CAP
-
41670-787 ...VALVE, CHECK...VALVE, CHECK
-
51670-822 ...GROMMET...GROMMET
-
61623-233 CLAMP, HOSECLAMP, HOSE
-
76101-009 HOSE, GASLINE - 50 FTHOSE, GASLINE - 50 FT
-
76101-001 HOSE, GASLINE - 100 FTHOSE, GASLINE - 100 FT
-
80116-469 BUSHING, RECOILBUSHING, RECOIL
-
91623-841 NUT, PUSHNUT, PUSH
-
101623-030 CLIP, U-NUTCLIP, U-NUT
-
110123-802 WASHERWASHER
-
128427-502 NUT, LOCKNUT, LOCK
-
134706-352 BRACKET, MOUNTING - HOOD - BLACKBRACKET, MOUNTING - HOOD - BLACK
-
142606-624 STRAP, HOLD-DOWNSTRAP, HOLD-DOWN
-
158061-708 RIVETRIVET
-
168470-525 SCREW, MACHINESCREW, MACHINE
-
178427-802 NUT, LOCKNUT, LOCK
-
180509-022 TAILLIGHT - ASSEMBLY (INC. 19-21)TAILLIGHT - ASSEMBLY (INC. 19-21)
-
190509-025 ...HOUSING, TAILLIGHT...HOUSING, TAILLIGHT
-
200409-056 ...BULB, TAILLIGHT...BULB, TAILLIGHT
-
210409-057 ...SOCKET, TAILLIGHT...SOCKET, TAILLIGHT
-
220623-257 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
235606-968 BRACKET, MOUNTING - TAILLIGHTBRACKET, MOUNTING - TAILLIGHT
-
240623-902 SCREW, MACHINESCREW, MACHINE
-
250623-845 NUT, EXPANSIONNUT, EXPANSION
