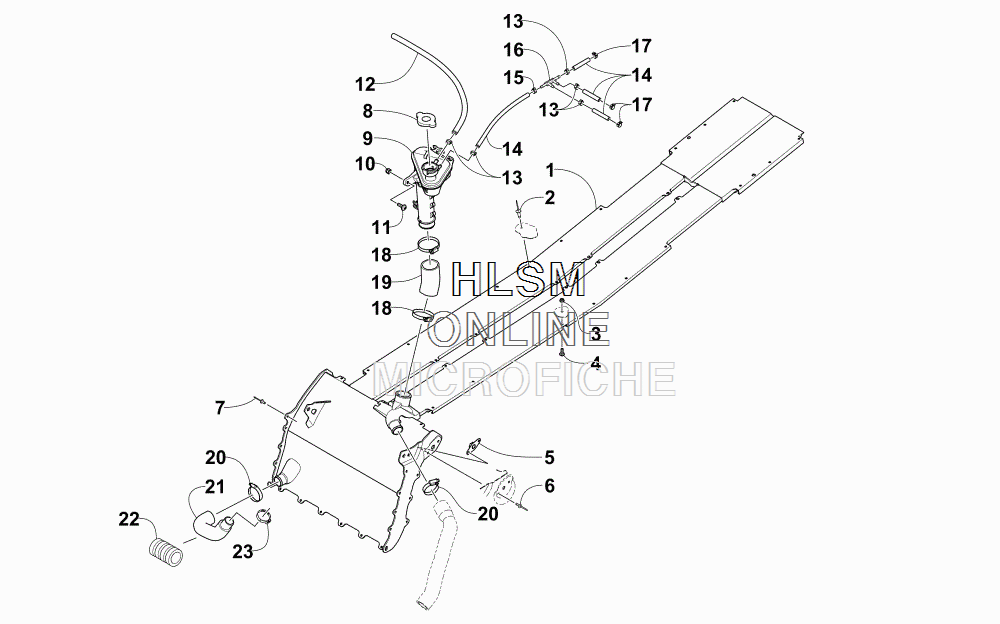

COOLING ASSEMBLY для Arctic Cat ZR 6000 RXC (GREEN) (INTERNATIONAL) [S2015ACDCCOSG] - 2015 года выпуска
-
№АртикулНазвание
-
10713-114 EXCHANGER, HEATEXCHANGER, HEAT
-
28060-702 RIVET,BLIND-DH SS62 (BLACK)RIVET,BLIND-DH SS62 (BLACK)
-
38422-502 NUT, M5 X 1 NYL Z & YNUT, M5 X 1 NYL Z & Y
-
48476-516 SCREW,MACH-TSTRH M5X0.8X16 Z & YSCREW,MACH-TSTRH M5X0.8X16 Z & Y
-
50608-631 PLATE, RETAININGPLATE, RETAINING
-
68060-708 RIVET,BLIND-DH SS66 (BLACK)RIVET,BLIND-DH SS66 (BLACK)
-
78060-706 RIVET,BLIND-DH SS64 (BLACK)RIVET,BLIND-DH SS64 (BLACK)
-
82606-284 CAP, MINI RADIATORCAP, MINI RADIATOR
-
90613-135 TANK, COOLANTTANK, COOLANT
-
108422-602 NUT,HEX-THK NYL M6X1.00 CL8 Z & YNUT,HEX-THK NYL M6X1.00 CL8 Z & Y
-
118476-625 SCREW,MACH-TSTRH M6X1.0X25 Z & YSCREW,MACH-TSTRH M6X1.0X25 Z & Y
-
120610-692 HOSE, OIL/WATER - 25 FTHOSE, OIL/WATER - 25 FT
-
120610-693 HOSE, OIL - 100 FTHOSE, OIL - 100 FT
-
131623-655 CLAMP,HOSE-CRIMP-11.3CLAMP,HOSE-CRIMP-11.3
-
140610-538 HOSE, VENT - 25 (1054-152)HOSE, VENT - 25 (1054-152)
-
151623-619 CLAMP,H0SE-CRIMP-10.5CLAMP,H0SE-CRIMP-10.5
-
160610-717 FITTING,COOLANT HOSE-DOUBLE TFITTING,COOLANT HOSE-DOUBLE T
-
170623-063 CLAMP, HOSE (SNP02)CLAMP, HOSE (SNP02)
-
180423-317 CLAMP, HOSE - 32/50 (NORMA 962)CLAMP, HOSE - 32/50 (NORMA 962)
-
190610-936 HOSE, COOLANT - FILLER NECK/HEAT EXCHANGERHOSE, COOLANT - FILLER NECK/HEAT EXCHANGER
-
202623-088 CLAMP,HOSE-23/35CLAMP,HOSE-23/35
-
210610-864 HOSE, COOLANT - ENGINE/HEAT EXCHANGERHOSE, COOLANT - ENGINE/HEAT EXCHANGER
-
220619-619 CONDUIT, FLEXIBLE - 4 IN.CONDUIT, FLEXIBLE - 4 IN.
-
231623-656 CLAMP,H0SE-CRIMP-36.1CLAMP,H0SE-CRIMP-36.1
