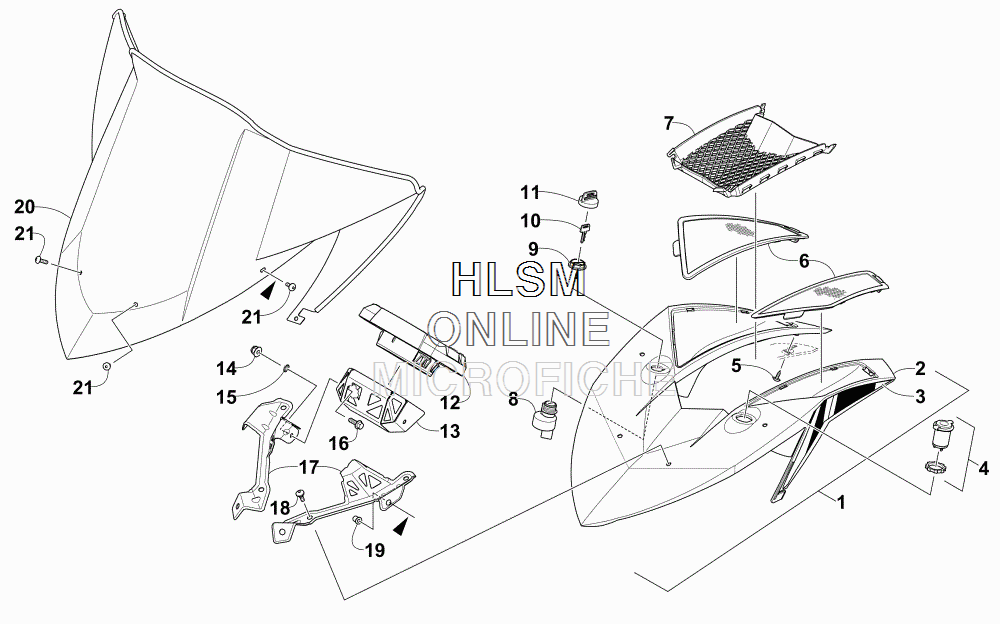

WINDSHIELD AND INSTRUMENTS ASSEMBLIES для Arctic Cat ZR 6000 RXC (GREEN) (INTERNATIONAL) [S2015ACDCCOSG] - 2015 года выпуска
-
№АртикулНазвание
-
14718-598 POD W/DECALS - (BLACK) (INC. 2-3)POD W/DECALS - (BLACK) (INC. 2-3)
-
26606-313 ...POD, INSTRUMENT - (BLACK)...POD, INSTRUMENT - (BLACK)
-
32621-350 ...DECAL, POD - RIGHT...DECAL, POD - RIGHT
-
32621-351 DECAL, POD - LEFTDECAL, POD - LEFT
-
40641-897 OUTLET, ACCESSORY - 12V DCOUTLET, ACCESSORY - 12V DC
-
51623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
60608-736 SCREEN, INTAKE - INJECTION MOLD - RIGHTSCREEN, INTAKE - INJECTION MOLD - RIGHT
-
60608-737 SCREEN, INTAKE - INJECTION MOLD - LEFTSCREEN, INTAKE - INJECTION MOLD - LEFT
-
76606-556 VENT,PODVENT,POD
-
80609-910 SWITCH, IGNITION (INC. 9-11)SWITCH, IGNITION (INC. 9-11)
-
90430-050 ...NUT, FLANGE - IGNITION SWITCH...NUT, FLANGE - IGNITION SWITCH
-
100430-042 ...KEY, IGNITION - (Y SERIES - LEFT-SIDE CUT)...KEY, IGNITION - (Y SERIES - LEFT-SIDE CUT)
-
100430-043 ...KEY, IGNITION - (Z SERIES - RIGHT-SIDE CUT)...KEY, IGNITION - (Z SERIES - RIGHT-SIDE CUT)
-
110430-054 ...COVER, KEY...COVER, KEY
-
120720-031 GAUGE, SPEEDOMETERGAUGE, SPEEDOMETER
-
136606-714 BRACKET, SPEEDOMETER GAUGE - CENTERBRACKET, SPEEDOMETER GAUGE - CENTER
-
148410-616 SCREW,CAP-HFH M6X1.25X16 CL8.8 RIE (BLACK)SCREW,CAP-HFH M6X1.25X16 CL8.8 RIE (BLACK)
-
156606-130 BRACKET, SPEEDOMETER GAUGE - RIGHTBRACKET, SPEEDOMETER GAUGE - RIGHT
-
156606-131 BRACKET, SPEEDOMETER GAUGE - LEFTBRACKET, SPEEDOMETER GAUGE - LEFT
-
168053-212 WASHER,LOCK-1/4 EXT TOOTH TYP A Z & YWASHER,LOCK-1/4 EXT TOOTH TYP A Z & Y
-
178427-602 NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & YNUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
-
180423-355 SCREW, SHOULDER-M6-1.0 X 18- (BLACK)SCREW, SHOULDER-M6-1.0 X 18- (BLACK)
-
191623-764 NUT, EXPANSIONNUT, EXPANSION
-
206606-513 WINDSHIELD - TALL - (SMOKE)WINDSHIELD - TALL - (SMOKE)
-
218477-516 SCREW,MACH-TSTRH M5X0.8X16 Z & (BLACK)SCREW,MACH-TSTRH M5X0.8X16 Z & (BLACK)
