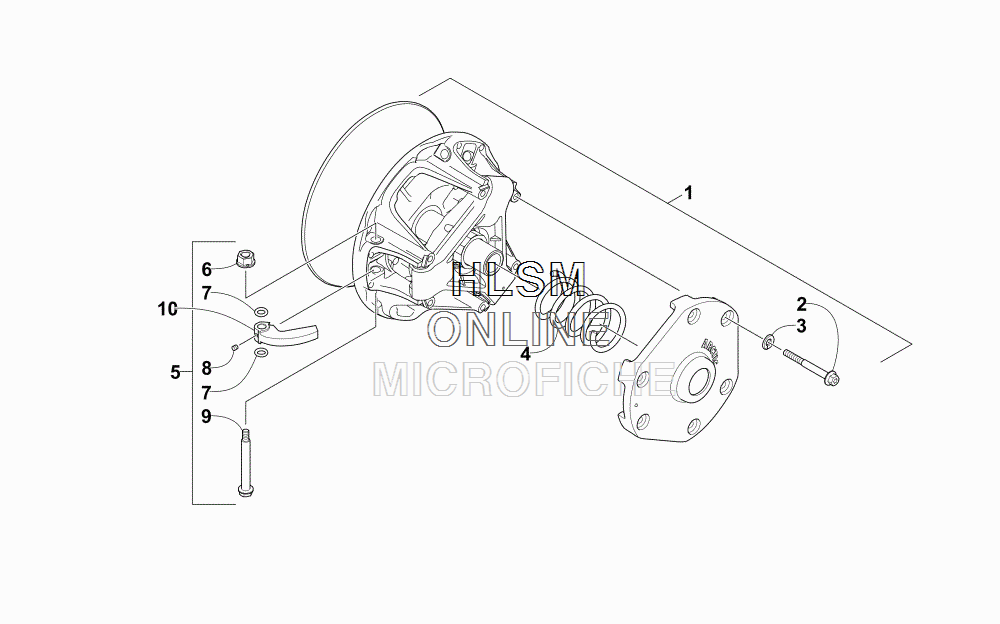

DRIVE CLUTCH для Arctic Cat ZR 6000 RXC (GREEN) (INTERNATIONAL) [S2015ACDCCOSG] - 2015 года выпуска

№

Артикул

Название
1

0746-435 CLUTCH,DRIVE-UNCAL-8.25 33MM/S (INC. 2-3)

CLUTCH,DRIVE-UNCAL-8.25 33MM/S (INC. 2-3)

108 990 ₽
2

0646-431 ...SCREW,CAP-FH SHOULDER

...SCREW,CAP-FH SHOULDER

290 ₽
3

0646-430 ...WASHER,SPR LOCK-M8

...WASHER,SPR LOCK-M8

40 ₽
4

0646-410 SPRING,CLUTCH-BLUE SPEEDWERX

SPRING,CLUTCH-BLUE SPEEDWERX

14 550 ₽
5

4639-674 KIT,CAM ARM REPAIR 05- 09(WIDE) (INC. 6-9)

KIT,CAM ARM REPAIR 05- 09(WIDE) (INC. 6-9)

8 730 ₽
6

8048-366 ...NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z & Y

...NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z & Y

110 ₽
7

1602-692 ...O-RING, 5/16 X 1/2 X 3/32 - VITON

...O-RING, 5/16 X 1/2 X 3/32 - VITON

110 ₽
8

1623-183 ......SCREW,SET-CUP PT W/THD LOC-8-32X3/16

......SCREW,SET-CUP PT W/THD LOC-8-32X3/16

250 ₽
9

0646-747 ...PIN, CAM ARM

...PIN, CAM ARM

2 700 ₽
10

0746-847 ARM,CAM-P1 WIDE-64 GR-W/SET SCREW (INC. 8)

ARM,CAM-P1 WIDE-64 GR-W/SET SCREW (INC. 8)

2 070 ₽
