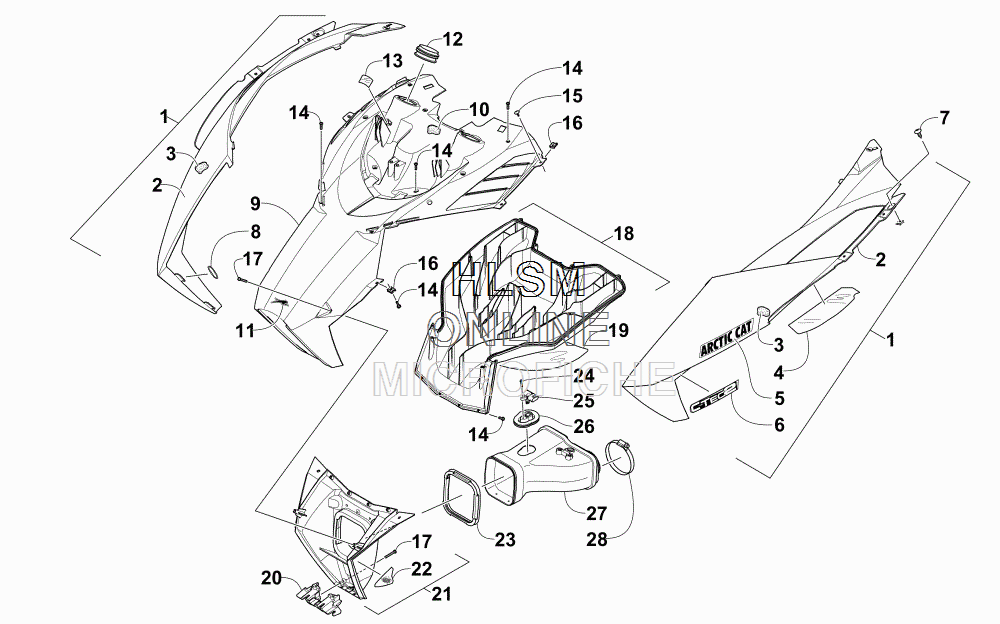

HOOD AND AIR INTAKE ASSEMBLY для Arctic Cat ZR 6000 RXC (GREEN) (INTERNATIONAL) [S2015ACDCCOSG] - 2015 года выпуска
-
№АртикулНазвание
-
14718-597 HOOD W/DECALS - LEFT - (BLACK) (INC. 2-4, ONE NO. 5, AND ONE NO. 6)HOOD W/DECALS - LEFT - (BLACK) (INC. 2-4, ONE NO. 5, AND ONE NO. 6)
-
14718-596 HOOD W/DECALS - RIGHT - (BLACK) (INC. 2-3, ONE NO. 5, AND ONE NO. 6)HOOD W/DECALS - RIGHT - (BLACK) (INC. 2-3, ONE NO. 5, AND ONE NO. 6)
-
23718-589 HOOD W/O DECALS - LEFT - (BLACK) (INC. 3-4)HOOD W/O DECALS - LEFT - (BLACK) (INC. 3-4)
-
23718-588 ...HOOD W/O DECALS - RIGHT - (BLACK) (INC. 3)...HOOD W/O DECALS - RIGHT - (BLACK) (INC. 3)
-
30617-647 ......FOAM, HOOD - LEFT......FOAM, HOOD - LEFT
-
30617-646 ......FOAM, HOOD - RIGHT......FOAM, HOOD - RIGHT
-
46606-407 ......FOIL, PROTECTIVE......FOIL, PROTECTIVE
-
52621-352 ...DECAL, HOOD - FORWARD...DECAL, HOOD - FORWARD
-
60621-906 ......DECAL, HOOD - "C-TEC"......DECAL, HOOD - "C-TEC"
-
70623-784 SCREW,SELF TAP-TSTRH #10-12X3/4 TP A (BLACK)SCREW,SELF TAP-TSTRH #10-12X3/4 TP A (BLACK)
-
81623-960 O-RING,1 1/16 ID X 1 1/4 ODO-RING,1 1/16 ID X 1 1/4 OD
-
95706-356 PLENUM, INTAKE - UPPER (INC. 10)PLENUM, INTAKE - UPPER (INC. 10)
-
100617-648 ...FOAM, INTAKE...FOAM, INTAKE
-
114411-479 DECAL - "AIRCAT"DECAL - "AIRCAT"
-
126606-386 BOOT, INTAKEBOOT, INTAKE
-
132606-007 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
141623-933 SCREW,PLASTITE-TXSPNH 10-14X3/4 Z & BSCREW,PLASTITE-TXSPNH 10-14X3/4 Z & B
-
150623-797 SCREW,SELF TAP-TSTH 10-12X1/2 WO/GPSCREW,SELF TAP-TSTH 10-12X1/2 WO/GP
-
161623-939 NUT,SPEED-#10 B "U" TYPENUT,SPEED-#10 B "U" TYPE
-
171623-929 SCREW,PLASTITE-TXSPNH 10-14X1 1/2 Z & BSCREW,PLASTITE-TXSPNH 10-14X1 1/2 Z & B
-
185706-358 PLENUM, INTAKE - LOWER REAR (INC. 19)PLENUM, INTAKE - LOWER REAR (INC. 19)
-
196606-406 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
206606-822 RETAINER, PLENUMRETAINER, PLENUM
-
215706-990 PLENUM, AIR INTAKE - LOWER FRONT - W/REFLECTOR (INC. 22)PLENUM, AIR INTAKE - LOWER FRONT - W/REFLECTOR (INC. 22)
-
220621-989 ...DECAL, REFLECTOR - (AMBER)...DECAL, REFLECTOR - (AMBER)
-
230617-624 ADAPTER, BOOTADAPTER, BOOT
-
242623-016 SCREW,SELF TAP-TSPNH 10-16X7/8 TYPE A SSSCREW,SELF TAP-TSPNH 10-16X7/8 TYPE A SS
-
250824-052 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
262670-444 BOOT,T-MAP SENSORBOOT,T-MAP SENSOR
-
271770-056 BOOT,EXTENSION-EFI ASSEMBLYBOOT,EXTENSION-EFI ASSEMBLY
-
280423-018 CLAMP,HOSE-WORM (NORMA 60-80)CLAMP,HOSE-WORM (NORMA 60-80)
