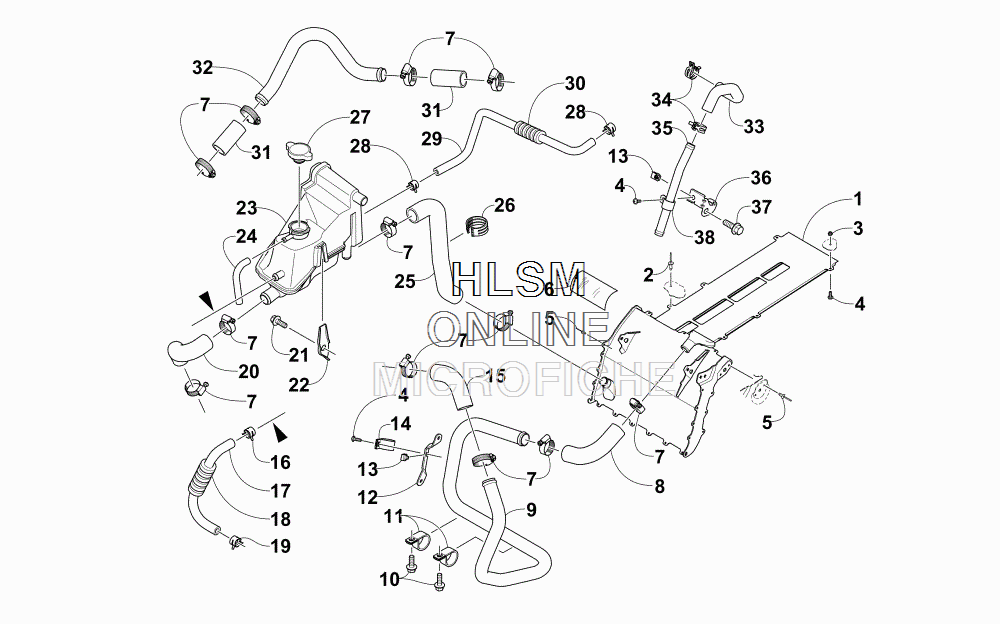

COOLING ASSEMBLY для Arctic Cat M 9000 LTD 162 GREEN INTERNATIONAL [S2016M9NLEOSG] - 2016 года выпуска
-
№АртикулНазвание
-
10713-100 EXCHANGER, HEAT - 4 STROKE HCR - WELDMENTEXCHANGER, HEAT - 4 STROKE HCR - WELDMENT
-
28060-702 RIVET - BLACKRIVET - BLACK
-
28060-682 RIVET - ZINCRIVET - ZINC
-
38422-502 NUT, LOCKNUT, LOCK
-
48476-516 SCREW, MACHINESCREW, MACHINE
-
58060-706 RIVET - BLACKRIVET - BLACK
-
58060-686 RIVET - ZINCRIVET - ZINC
-
60619-206 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
72623-088 CLAMP, HOSECLAMP, HOSE
-
80610-866 HOSE, COOLANT - COOLANT TUBE/HEAT EXCHANGERHOSE, COOLANT - COOLANT TUBE/HEAT EXCHANGER
-
90613-050 TUBE, COOLANT - ENGINE/HEAT EXCHANGERTUBE, COOLANT - ENGINE/HEAT EXCHANGER
-
108409-017 SCREW, CAPSCREW, CAP
-
111623-916 CLAMP, ROUTINGCLAMP, ROUTING
-
120608-668 BRACKET, MOUNTING - COOLANT TUBEBRACKET, MOUNTING - COOLANT TUBE
-
131623-637 CLIP, U-NUTCLIP, U-NUT
-
140423-044 CLAMP, ROUTINGCLAMP, ROUTING
-
150610-865 HOSE, COOLANT - THERMOSTAT/COOLANT TUBEHOSE, COOLANT - THERMOSTAT/COOLANT TUBE
-
161623-973 CLAMP, HOSECLAMP, HOSE
-
170610-845 HOSE, COOLANTHOSE, COOLANT
-
181619-356 CONDUIT, HIGH TEMPCONDUIT, HIGH TEMP
-
191623-281 CLAMP, HOSECLAMP, HOSE
-
200610-849 HOSE, COOLANT - ENGINE/COOLANT-OIL SEPARATOR TANKHOSE, COOLANT - ENGINE/COOLANT-OIL SEPARATOR TANK
-
218408-026 SCREW, CAPSCREW, CAP
-
220613-048 BRACKET, MOUNTING - COOLANT-OIL SEPARATOR TANKBRACKET, MOUNTING - COOLANT-OIL SEPARATOR TANK
-
230613-070 TANK, COOLANT-OIL SEPARATOR - ASSEMBLYTANK, COOLANT-OIL SEPARATOR - ASSEMBLY
-
240613-120 HOSE, VENTHOSE, VENT
-
250610-842 HOSE, COOLANT - HEAT EXCHANGER/COOLANT-OIL SEPARATOR TANKHOSE, COOLANT - HEAT EXCHANGER/COOLANT-OIL SEPARATOR TANK
-
260623-540 TIE, CABLE - TRIPLETIE, CABLE - TRIPLE
-
272606-284 CAPCAP
-
281623-278 CLAMP, HOSECLAMP, HOSE
-
290610-841 HOSE, COOLANT - COOLANT-OIL SEPARATOR TANK/THROTTLE BODYHOSE, COOLANT - COOLANT-OIL SEPARATOR TANK/THROTTLE BODY
-
300619-776 CONDUIT, FLEXIBLE - 5 FTCONDUIT, FLEXIBLE - 5 FT
-
310610-840 HOSEHOSE
-
320613-049 TUBE, COOLANT - CYLINDER HEAD/PUMPTUBE, COOLANT - CYLINDER HEAD/PUMP
-
330610-867 HOSE, COOLANTHOSE, COOLANT
-
341623-285 CLAMP, HOSECLAMP, HOSE
-
350613-051 TUBE, COOLANTTUBE, COOLANT
-
360613-138 BRACKET, RETAININGBRACKET, RETAINING
-
378476-516 SCREW, MACHINESCREW, MACHINE
-
382623-006 CLAMP, CABLECLAMP, CABLE
