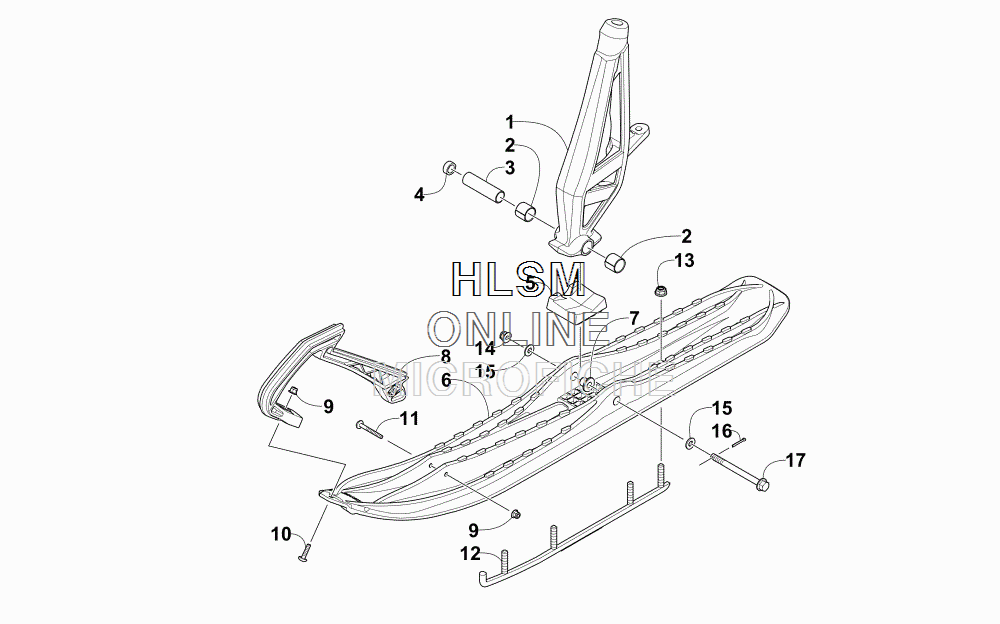

SKI AND SPINDLE ASSEMBLY для Arctic Cat M 9000 LTD 162 GREEN INTERNATIONAL [S2016M9NLEOSG] - 2016 года выпуска
-
№АртикулНазвание
-
13703-426 SPINDLE, STEERING - RIGHT - BLACK (INC. 2)SPINDLE, STEERING - RIGHT - BLACK (INC. 2)
-
13703-427 SPINDLE, STEERING - LEFT - BLACK (INC. 2)SPINDLE, STEERING - LEFT - BLACK (INC. 2)
-
20603-158 ...BEARING...BEARING
-
33603-321 AXLE, SPINDLEAXLE, SPINDLE
-
42603-208 SPACERSPACER
-
53603-237 DAMPER, SKI - RUBBERDAMPER, SKI - RUBBER
-
63603-518 SKI, PLASTIC - BLACKSKI, PLASTIC - BLACK
-
72603-746 INSERTINSERT
-
83603-228 HANDLE, PLASTIC - GREENHANDLE, PLASTIC - GREEN
-
98427-602 NUT, LOCKNUT, LOCK
-
108476-625 SCREW, MACHINESCREW, MACHINE
-
118476-650 SCREW, MACHINESCREW, MACHINE
-
120703-871 WEARBARWEARBAR
-
138047-486 NUT, LOCKNUT, LOCK
-
140423-744 NUT, LOCKNUT, LOCK
-
151623-801 WASHERWASHER
-
160123-458 PIN, COTTERPIN, COTTER
-
171623-781 BOLT, SKI-HFH M10- 1.25 X 137 CL10.9BOLT, SKI-HFH M10- 1.25 X 137 CL10.9
