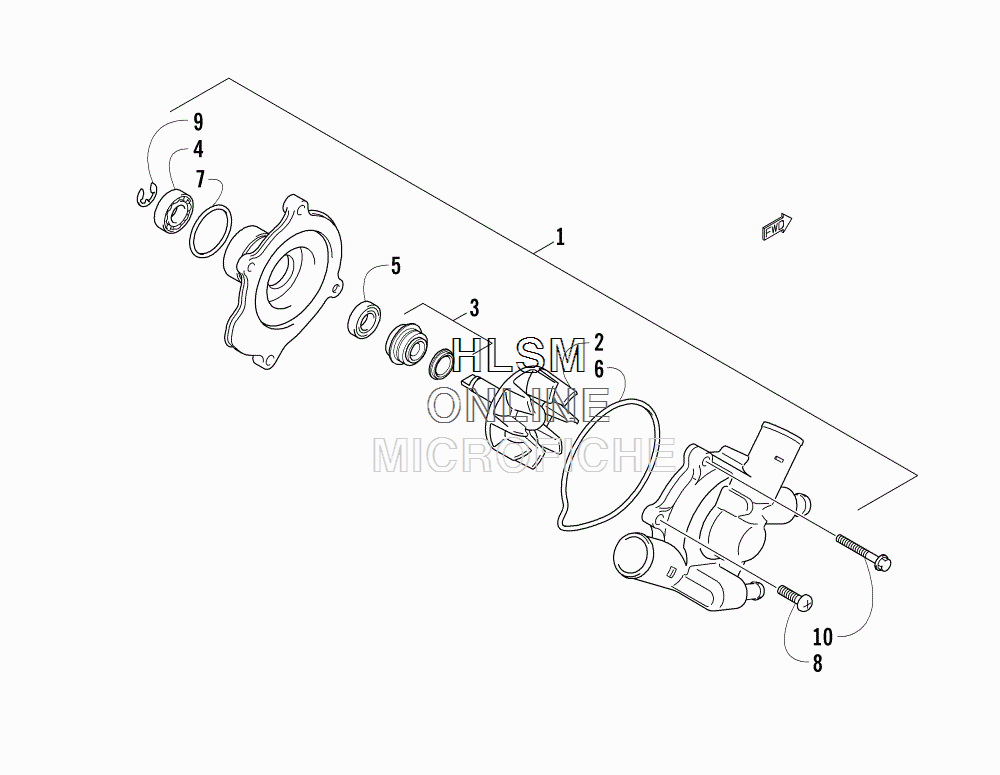

WATER PUMP ASSEMBLY для Arctic Cat M 9000 LTD 162 GREEN INTERNATIONAL [S2016M9NLEOSG] - 2016 года выпуска
-
№АртикулНазвание
-
13007-178 PUMP, WATER - ASSEMBLY (INC. 2-9)PUMP, WATER - ASSEMBLY (INC. 2-9)
-
23007-179 ...IMPELLER/SHAFT...IMPELLER/SHAFT
-
33007-180 ...SEAL...SEAL
-
43003-615 ...BEARING...BEARING
-
53402-465 ...SEAL, OIL...SEAL, OIL
-
63007-181 ...O-RING...O-RING
-
73423-404 ...O-RING...O-RING
-
83007-511 ...SCREW...SCREW
-
93007-512 ...E-RING...E-RING
-
103007-503 BOLTBOLT
