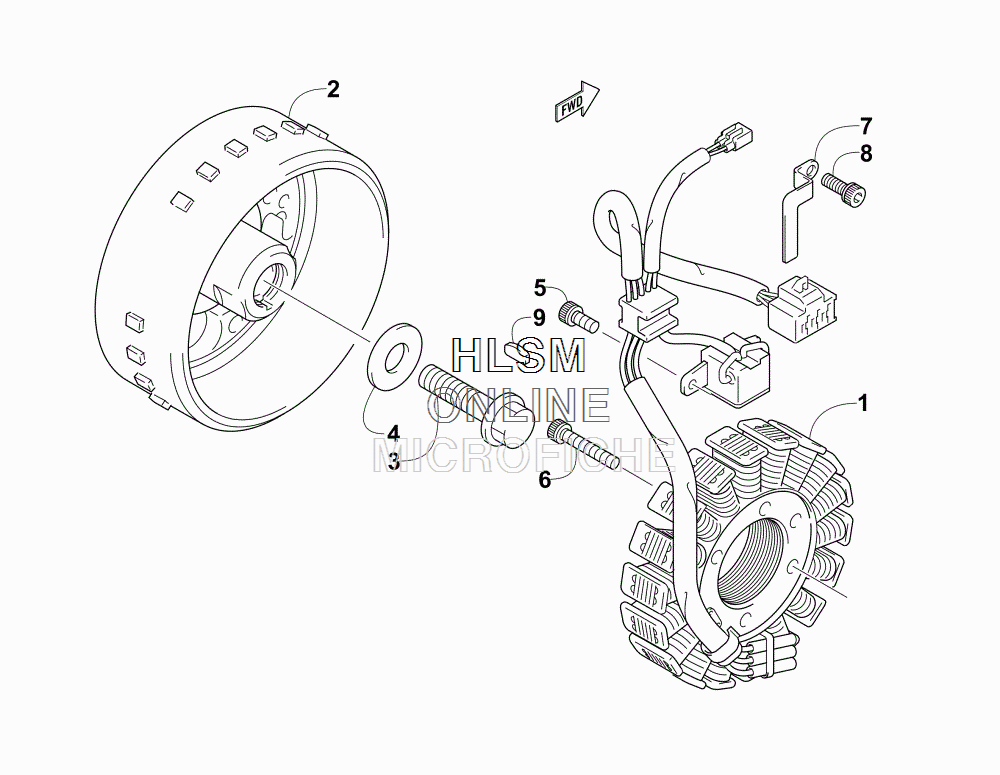

MAGNETO ASSEMBLY для Arctic Cat M 9000 LTD 162 GREEN INTERNATIONAL [S2016M9NLEOSG] - 2016 года выпуска
-
№АртикулНазвание
-
13007-231 STATORSTATOR
-
23007-232 ROTOR/FLYWHEELROTOR/FLYWHEEL
-
33007-233 BOLT, FLYWHEEL (12X40)BOLT, FLYWHEEL (12X40)
-
43007-234 WASHERWASHER
-
53007-519 BOLTBOLT
-
63007-450 BOLTBOLT
-
73007-235 CLAMP, LEAD WIRECLAMP, LEAD WIRE
-
83007-519 BOLTBOLT
-
93004-540 KEY, WOODRUFFKEY, WOODRUFF
