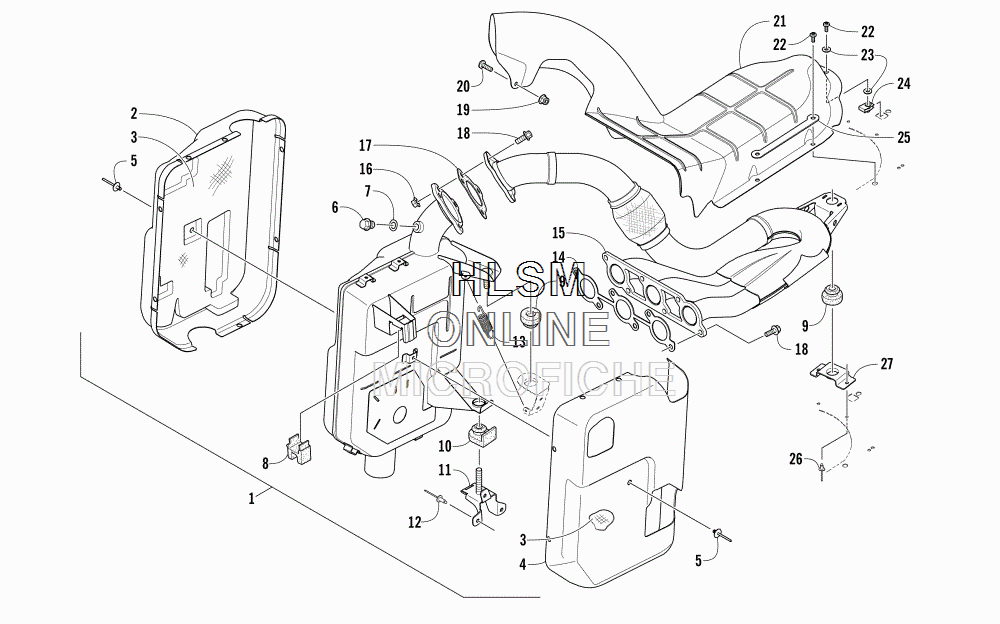

EXHAUST ASSEMBLY для Arctic Cat XF 7000 CROSSTOUR ORANGE - 2017 года выпуска
-
№АртикулНазвание
-
11712-964 RESONATOR, EXHAUST - ASSEMBLY (INC. 2-5)RESONATOR, EXHAUST - ASSEMBLY (INC. 2-5)
-
22612-822 ...SHIELD, HEAT - RIGHT...SHIELD, HEAT - RIGHT
-
32612-820 ...PACKING, RESONATOR...PACKING, RESONATOR
-
42612-823 ...SHIELD, HEAT - LEFT...SHIELD, HEAT - LEFT
-
51623-799 ...RIVET...RIVET
-
62602-099 PLUGPLUG
-
70923-016 GASKETGASKET
-
82612-908 GROMMET - UPPERGROMMET - UPPER
-
92612-186 GROMMETGROMMET
-
102612-912 GROMMETGROMMET
-
111712-790 BRACKET, MOUNTING - LOWERBRACKET, MOUNTING - LOWER
-
128060-708 RIVETRIVET
-
130612-668 SPRINGSPRING
-
143020-136 GASKET, EXHAUSTGASKET, EXHAUST
-
151712-987 MANIFOLD EXHAUSTMANIFOLD EXHAUST
-
162623-238 NUT, LOCKNUT, LOCK
-
172612-663 GASKET, EXHAUSTGASKET, EXHAUST
-
181623-918 SCREW, CAPSCREW, CAP
-
198427-602 NUT, LOCKNUT, LOCK
-
208476-625 SCREW, CAPSCREW, CAP
-
212612-880 SHIELD, HEATSHIELD, HEAT
-
228470-516 SCREW, MACHINESCREW, MACHINE
-
238050-217 WASHERWASHER
-
241623-637 CLIP, U-NUTCLIP, U-NUT
-
252612-969 PLATE, MOUNTING - HEAT SHIELDPLATE, MOUNTING - HEAT SHIELD
-
268060-686 RIVETRIVET
-
272612-963 BRACKET, MOUNTING - MANIFOLDBRACKET, MOUNTING - MANIFOLD
