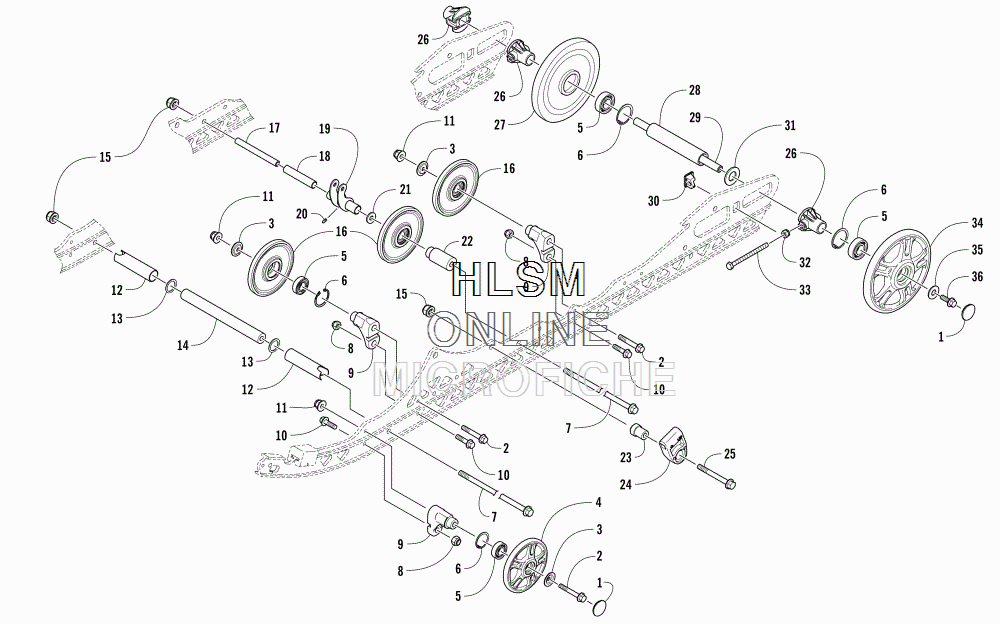

IDLER WHEEL ASSEMBLY для Arctic Cat XF 7000 CROSSTOUR ORANGE - 2017 года выпуска
-
№АртикулНазвание
-
11604-952 CAP, IDLER WHEELCAP, IDLER WHEEL
-
28413-675 SCREW, CAPSCREW, CAP
-
32623-025 WASHERWASHER
-
43604-386 WHEEL, IDLER - BLACK (INC. 5-6)WHEEL, IDLER - BLACK (INC. 5-6)
-
53604-033 ...BEARING...BEARING
-
60623-946 ...RING, RETAINING...RING, RETAINING
-
71423-064 SCREW, CAPSCREW, CAP
-
88422-602 NUTNUT
-
93604-899 BLOCK, MOUNTING - IDLER WHEELBLOCK, MOUNTING - IDLER WHEEL
-
108413-620 SCREW, CAPSCREW, CAP
-
118427-602 NUT, LOCKNUT, LOCK
-
123604-083 SPACERSPACER
-
130623-912 WASHERWASHER
-
143604-269 AXLEAXLE
-
152623-202 NUT, LOCK W/WASHERNUT, LOCK W/WASHER
-
163604-039 WHEEL, IDLER (INC. 5-6)WHEEL, IDLER (INC. 5-6)
-
173604-285 AXLEAXLE
-
183604-325 SPACERSPACER
-
191704-674 PIVOT, SHOCK (INC. 20)PIVOT, SHOCK (INC. 20)
-
201623-010 ...FITTING, GREASE...FITTING, GREASE
-
211623-794 WASHERWASHER
-
223604-327 BLOCK, MOUNTING - IDLER WHEELBLOCK, MOUNTING - IDLER WHEEL
-
233604-204 BLOCK, SLIDEBLOCK, SLIDE
-
242604-516 SLIDE, SPRINGSLIDE, SPRING
-
258408-055 SCREW, CAPSCREW, CAP
-
262704-337 BUSHING, ADJUSTERBUSHING, ADJUSTER
-
273604-060 WHEEL, IDLER (INC. 5-6)WHEEL, IDLER (INC. 5-6)
-
281604-940 SPACERSPACER
-
294604-154 AXLE, REAR WHEELAXLE, REAR WHEEL
-
303604-647 ADJUSTER, TRACKADJUSTER, TRACK
-
310623-921 WASHERWASHER
-
328422-802 NUT, LOCKNUT, LOCK
-
331623-682 SCREW, CAPSCREW, CAP
-
343604-063 WHEEL, IDLER - BLACK (INC. 5-6)WHEEL, IDLER - BLACK (INC. 5-6)
-
351623-931 WASHERWASHER
-
368413-031 SCREW, CAPSCREW, CAP
