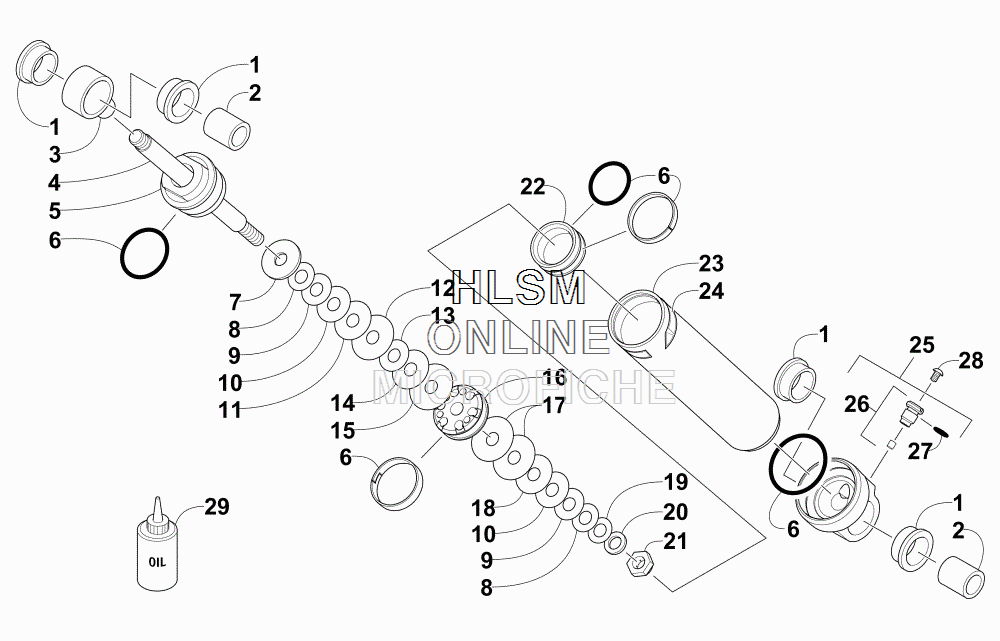

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat XF 7000 CROSSTOUR ORANGE - 2017 года выпуска
-
№АртикулНазвание
-
-2704-684 SHOCK ABSORBERSHOCK ABSORBER
-
13604-738 BUSHINGBUSHING
-
23604-737 SLEEVESLEEVE
-
33604-796 EYELET, SHOCKEYELET, SHOCK
-
43604-810 ROD, SHOCKROD, SHOCK
-
54604-126 BEARING - ASSEMBLYBEARING - ASSEMBLY
-
64604-121 KIT, SEAL/REBUILDKIT, SEAL/REBUILD
-
73604-789 WASHER, TOP OUTWASHER, TOP OUT
-
83603-105 VALVE, 0.800 X 0.010 IN.VALVE, 0.800 X 0.010 IN.
-
93603-115 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
103603-125 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
113603-145 VALVE, 1.100 X 0.010 IN.VALVE, 1.100 X 0.010 IN.
-
123603-175 VALVE, 1.250 X 0.010 IN.VALVE, 1.250 X 0.010 IN.
-
133603-112 VALVE, 0.900 X 0.006 IN.VALVE, 0.900 X 0.006 IN.
-
143603-144 VALVE, 1.100 X 0.008 IN.VALVE, 1.100 X 0.008 IN.
-
153603-186 VALVE, 1.300 X 0.012 IN.VALVE, 1.300 X 0.012 IN.
-
162603-998 PISTON, 0.063 IN. - ORIFICEPISTON, 0.063 IN. - ORIFICE
-
173603-176 VALVE, 1.250 X 0.012 IN.VALVE, 1.250 X 0.012 IN.
-
183603-146 VALVE, 1.100 X 0.012 IN.VALVE, 1.100 X 0.012 IN.
-
193603-095 VALVE, 0.700 X 0.010 IN.VALVE, 0.700 X 0.010 IN.
-
203604-775 WASHER, BACKUPWASHER, BACKUP
-
213604-739 NUTNUT
-
223604-772 PISTON, FLOATINGPISTON, FLOATING
-
233604-811 BODY, SHOCKBODY, SHOCK
-
241621-728 DECAL, WARNING - HIGH PRESSUREDECAL, WARNING - HIGH PRESSURE
-
252704-257 END CAP, SHOCK - ASSEMBLY (INC. 26-27)END CAP, SHOCK - ASSEMBLY (INC. 26-27)
-
263604-751 ...VALVE, PRESSURE (INC. 27)...VALVE, PRESSURE (INC. 27)
-
273604-733 ......O-RING, VALVE......O-RING, VALVE
-
283604-750 SCREW, MACHINESCREW, MACHINE
-
295639-530 OIL, SHOCK - 1 QTOIL, SHOCK - 1 QT
