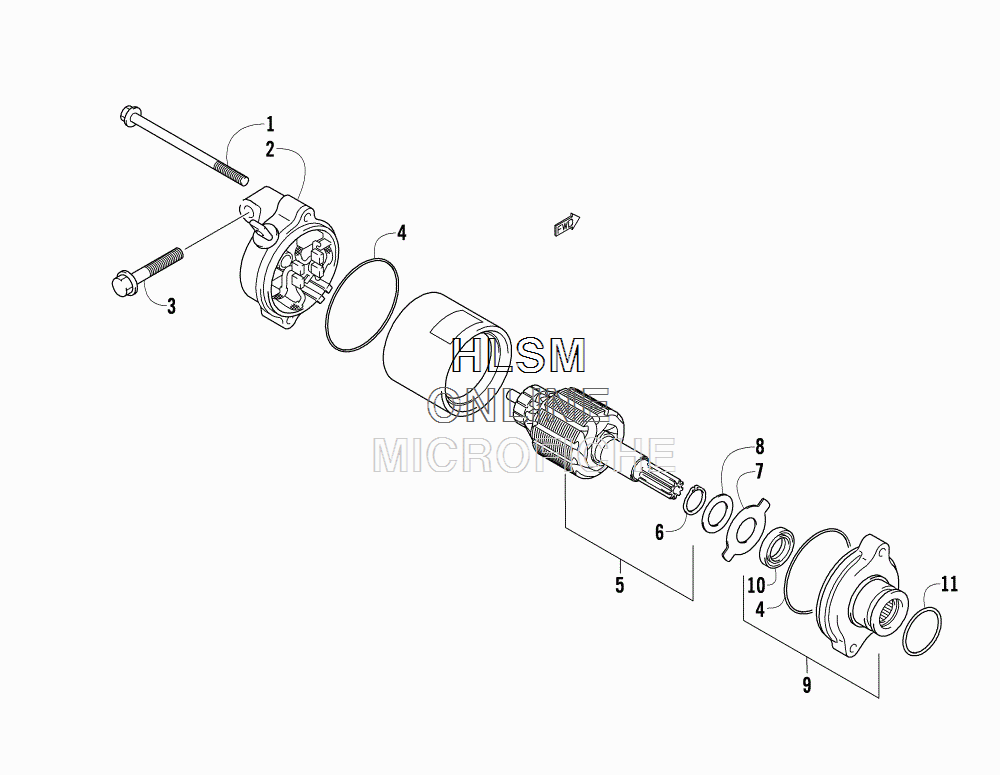

STARTER MOTOR ASSEMBLY для Arctic Cat ZR 5000 LXR 137 BLACK - 2017 года выпуска
-
№АртикулНазвание
-
-3007-219 COMPLETE STARTER MOTOR ASSEMBLYCOMPLETE STARTER MOTOR ASSEMBLY
-
13007-225 SCREW, CAPSCREW, CAP
-
23007-223 BRUSH ASSEMBLYBRUSH ASSEMBLY
-
33007-401 SCREW, CAPSCREW, CAP
-
43007-224 O-RINGO-RING
-
53007-226 ARMATURE ASSEMBLY (INC. 6)ARMATURE ASSEMBLY (INC. 6)
-
63007-227 ...RING, SNAP...RING, SNAP
-
73007-228 PLATE, LOCKINGPLATE, LOCKING
-
83007-229 SHIMSHIM
-
93007-220 HOUSING - ASSEMBLY (INC. 10)HOUSING - ASSEMBLY (INC. 10)
-
103007-221 ...SEAL, OIL...SEAL, OIL
-
113007-222 O-RINGO-RING
