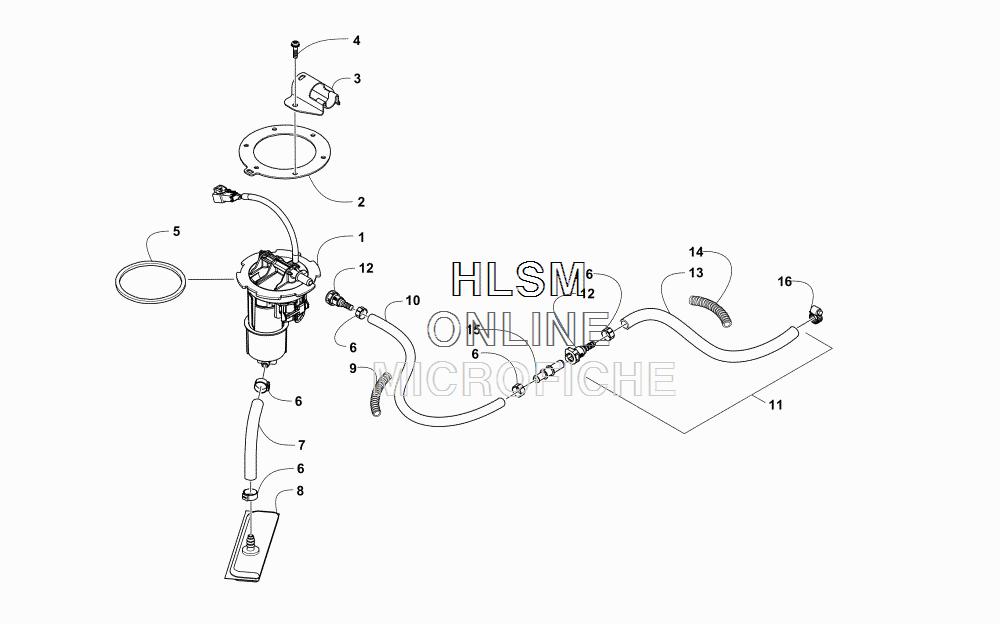

FUEL PUMP ASSEMBLY для Arctic Cat ZR 6000 R SX GREEN - 2017 года выпуска
-
№АртикулНазвание
-
12670-604 PUMP, FUELPUMP, FUEL
-
22670-042 PLATE, RETAINING - FUEL PUMPPLATE, RETAINING - FUEL PUMP
-
36606-176 GUARD, FITTING - FUEL PUMPGUARD, FITTING - FUEL PUMP
-
40423-898 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
50470-838 SEALSEAL
-
60610-563 CLAMP, HOSECLAMP, HOSE
-
72670-606 HOSE, FUEL PICKUPHOSE, FUEL PICKUP
-
82670-605 FUEL PICKUPFUEL PICKUP
-
92706-415 LOOMLOOM
-
100610-971 HOSE, FUEL - 10 FTHOSE, FUEL - 10 FT
-
111770-193 FITTING, QUICK-CONNECT - ASSEMBLY (INC. ONE NO. 6, ONE NO. 12, AND 13-14)FITTING, QUICK-CONNECT - ASSEMBLY (INC. ONE NO. 6, ONE NO. 12, AND 13-14)
-
122670-141 ...FITTING, QUICK-CONNECT...FITTING, QUICK-CONNECT
-
130610-691 ...HOSE, GASLINE - 10 FT...HOSE, GASLINE - 10 FT
-
141619-348 ...CONDUIT - 5 FT...CONDUIT - 5 FT
-
152670-537 FITTING, QUICK - CONNECTFITTING, QUICK - CONNECT
-
160623-373 CLAMP, HOSECLAMP, HOSE
Все узлы модели:
- A-ARM ASSEMBLY
- AIR SILENCER ASSEMBLY
- BELT GUARD ASSEMBLY
- CHAIN CASE ASSEMBLY
- CONSOLE ASSEMBLY
- COOLING ASSEMBLY
- CRANKCASE ASSEMBLY
- CYLINDER AND HEAD ASSEMBLY
- DRIVE CLUTCH
- DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES
- DRIVEN CLUTCH
- ENGINE AND RELATED PARTS
- EXHAUST ASSEMBLY
- FRONT BUMPER AND FRAME ASSEMBLY
- FRONT SHOCK ABSORBER ASSEMBLY
- FRONT SUSPENSION SHOCK ABSORBER
- • FUEL PUMP ASSEMBLY
- GAS TANK AND TAILLIGHT ASSEMBLY
- HANDLEBAR ASSEMBLY
- HEADLIGHT AND WIRING ASSEMBLY
- HYDRAULIC BRAKE CONTROL ASSEMBLY
- IDLER WHEEL ASSEMBLY
- MAGNETO
- PISTON AND CRANKSHAFT
- REAR SUSPENSION FRONT ARM ASSEMBLY
- REAR SUSPENSION FRONT ARM SHOCK ABSORBER
- REAR SUSPENSION REAR ARM ASSEMBLY
- REAR SUSPENSION REAR ARM SHOCK ABSORBER
- RECOIL STARTER
- REED VALVE ASSEMBLY
- SEAT ASSEMBLY
- SKI AND SPINDLE ASSEMBLY
- SKID PLATE AND SIDE PANEL ASSEMBLY
- SLIDE RAIL AND TRACK ASSEMBLY
- STEERING POST ASSEMBLY
- STEERING SUPPORT ASSEMBLY
- THROTTLE BODY ASSEMBLY
- THROTTLE CONTROL ASSEMBLY
- TIE ROD ASSEMBLY
- TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY
- WATER PUMP AND THERMOSTAT
- WINDSHIELD AND INSTRUMENTS ASSEMBLIES
