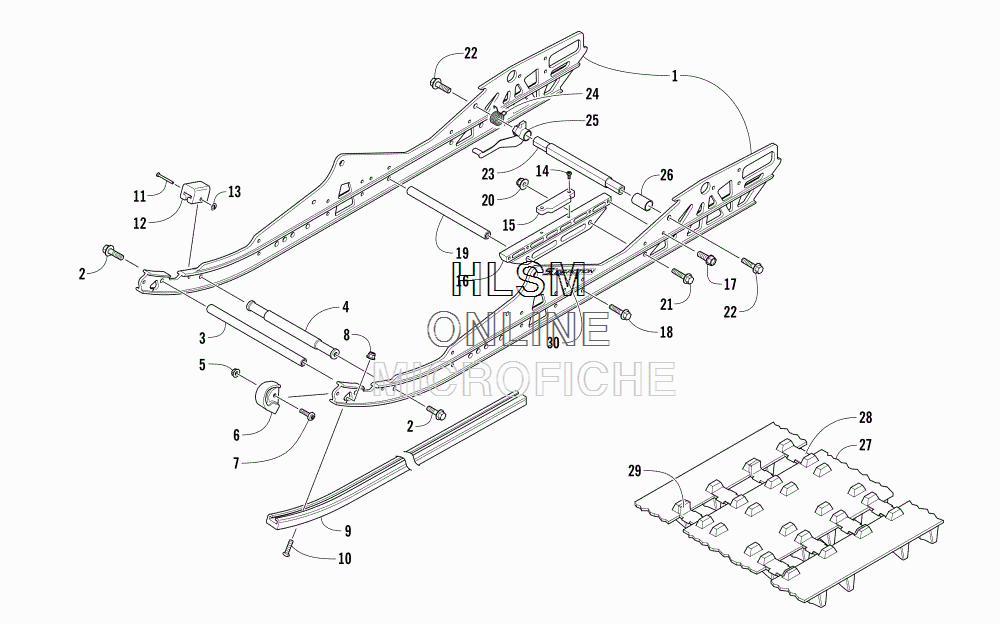

SLIDE RAIL AND TRACK ASSEMBLY для Arctic Cat ZR 6000 R SX GREEN - 2017 года выпуска
-
№АртикулНазвание
-
-3704-141 COMPLETE SKID FRAME ASSEMBLYCOMPLETE SKID FRAME ASSEMBLY
-
13704-169 RAIL, FORMED - GREENRAIL, FORMED - GREEN
-
28408-826 SCREW, CAPSCREW, CAP
-
34604-252 AXLEAXLE
-
43604-679 AXLEAXLE
-
58427-602 NUT, LOCKNUT, LOCK
-
64604-093 END CAP, SLIDE RAILEND CAP, SLIDE RAIL
-
78476-630 SCREW, MACHINESCREW, MACHINE
-
88047-366 NUT, LOCKNUT, LOCK
-
93604-929 WEARSTRIP, SLIDE RAIL - BLACKWEARSTRIP, SLIDE RAIL - BLACK
-
100123-859 SCREW, MACHINESCREW, MACHINE
-
110123-767 RIVET, SOLIDRIVET, SOLID
-
120104-631 PAD, SHOCKPAD, SHOCK
-
130123-766 NUT, PUSHNUT, PUSH
-
141623-175 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
153604-793 PAD, SHOCKPAD, SHOCK
-
163604-692 BRACE, RAILBRACE, RAIL
-
171623-948 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
188408-841 SCREW, CAPSCREW, CAP
-
194604-253 AXLEAXLE
-
208427-802 NUTNUT
-
218408-835 SCREW, CAPSCREW, CAP
-
228413-031 SCREW, CAPSCREW, CAP
-
234604-220 CROSSBRACECROSSBRACE
-
244604-222 SPRINGSPRING
-
252704-976 ADJUSTER, REAR ARMADJUSTER, REAR ARM
-
262704-978 SPACERSPACER
-
272602-964 TRACK ASSEMBLY (INC. 28-29)TRACK ASSEMBLY (INC. 28-29)
-
282602-384 ...CLIP, WEAR...CLIP, WEAR
-
292602-383 ...CLIP, GUIDE...CLIP, GUIDE
-
300621-907 DECAL, "SLIDE ACTION"DECAL, "SLIDE ACTION"
