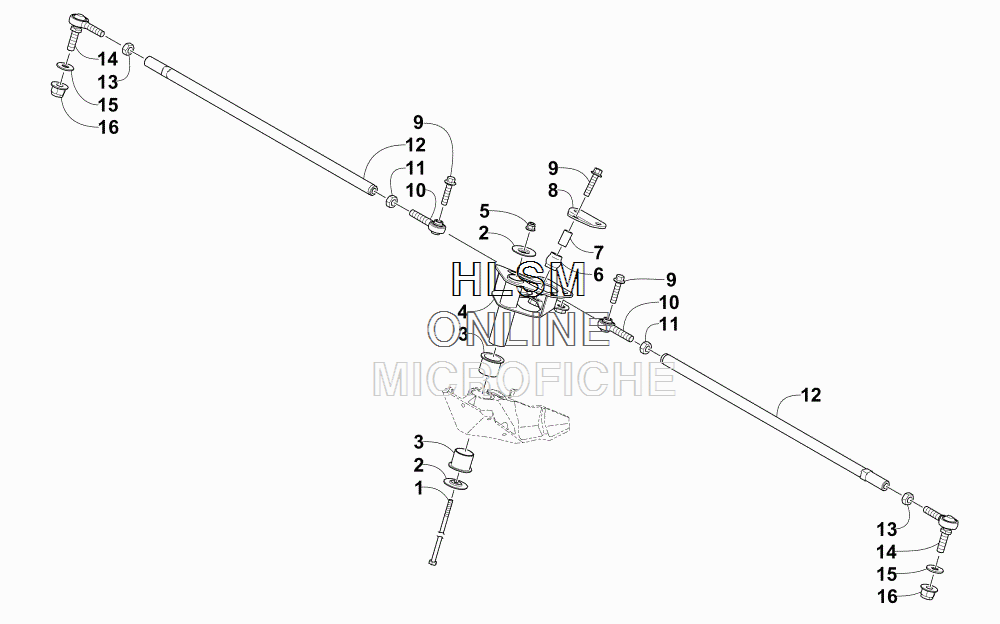

TIE ROD ASSEMBLY для Arctic Cat ZR 6000 R SX GREEN - 2017 года выпуска
-
№АртикулНазвание
-
11623-964 SCREW, CAPSCREW, CAP
-
21623-807 WASHERWASHER
-
31605-161 BUSHINGBUSHING
-
41705-419 ARM, STEERINGARM, STEERING
-
58427-602 NUT, LOCKNUT, LOCK
-
61605-083 BUSHINGBUSHING
-
71605-164 AXLEAXLE
-
81605-080 PLATE, RETAININGPLATE, RETAINING
-
98408-836 SCREW, CAPSCREW, CAP
-
101605-032 BALL JOINT, TIE ROD - RIGHT-HAND THREADBALL JOINT, TIE ROD - RIGHT-HAND THREAD
-
118420-002 NUT - RIGHT-HAND THREADNUT - RIGHT-HAND THREAD
-
121605-147 TUBE, TIE ROD - SPINDLETUBE, TIE ROD - SPINDLE
-
130423-013 NUT - LEFT-HAND THREADNUT - LEFT-HAND THREAD
-
141605-019 BALL JOINT, STEERING - LEFT-HAND THREADBALL JOINT, STEERING - LEFT-HAND THREAD
-
151623-803 WASHERWASHER
-
168427-002 NUT, LOCKNUT, LOCK
