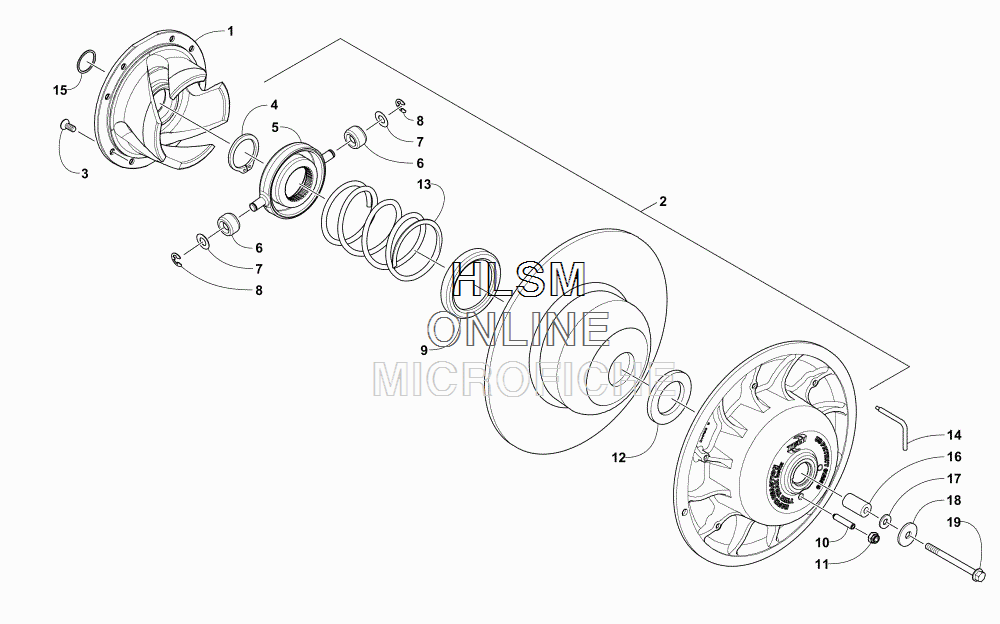

DRIVEN CLUTCH для Arctic Cat ZR 6000 R XC GREEN - 2017 года выпуска
-
№АртикулНазвание
-
-0726-408 CLUTCH, DRIVEN - ASSEMBLYCLUTCH, DRIVEN - ASSEMBLY
-
10648-854 CAM ASSEMBLY 44/42CAM ASSEMBLY 44/42
-
20726-410 CLUTCH, DRIVEN - UNCALIBRATED (INC. 3-12)CLUTCH, DRIVEN - UNCALIBRATED (INC. 3-12)
-
30648-748 ...SCREW, MACHINE...SCREW, MACHINE
-
40648-771 ...RING, RETAINING...RING, RETAINING
-
60648-699 ......ROLLER, CLUTCH......ROLLER, CLUTCH
-
70648-700 ......WASHER, THRUST......WASHER, THRUST
-
80648-701 ......RING, RETAINING......RING, RETAINING
-
90648-703 ...WASHER, THRUST...WASHER, THRUST
-
100648-907 ...SCREW, SET...SCREW, SET
-
110648-777 ...NUT, LOCK...NUT, LOCK
-
120648-855 ...SPACER...SPACER
-
130648-853 SPRING, DRIVEN CLUTCH - 180/260SPRING, DRIVEN CLUTCH - 180/260
-
140644-424 TOOL, DRIVE BELT DEFLECTIONTOOL, DRIVE BELT DEFLECTION
-
150616-032 O-RINGO-RING
-
160648-819 SHAFT, STUBSHAFT, STUB
-
170123-053 WASHER, FLATWASHER, FLAT
-
180123-019 WASHER, FLATWASHER, FLAT
-
198408-881 SCREW, CAPSCREW, CAP
