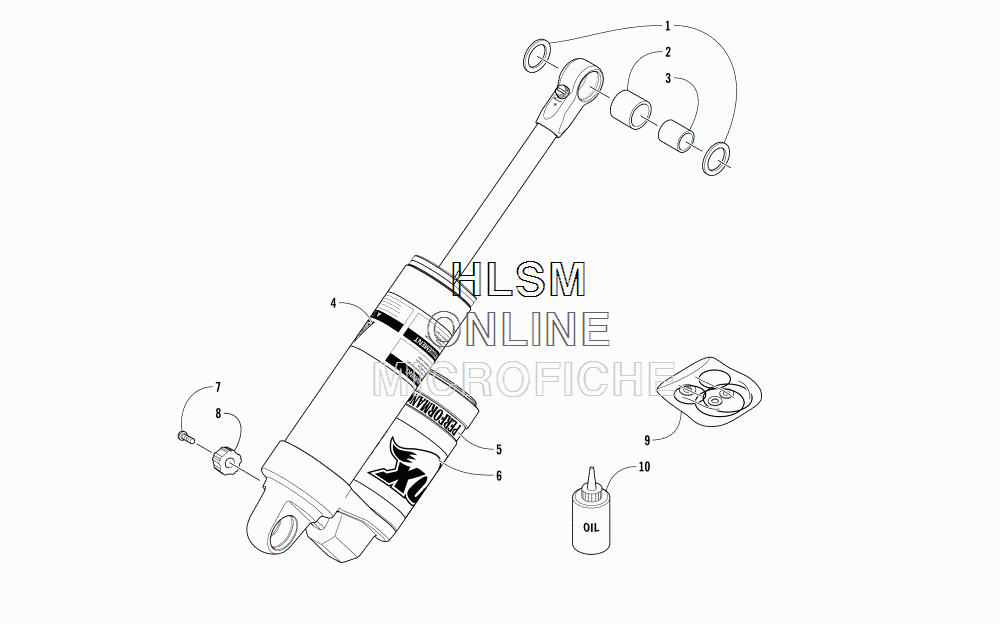

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat ZR 6000 R XC GREEN - 2017 года выпуска
-
№АртикулНазвание
-
-3704-178 SHOCK ABSORBERSHOCK ABSORBER
-
14604-206 SPACERSPACER
-
23603-399 BUSHING, EYELETBUSHING, EYELET
-
34604-205 SLEEVESLEEVE
-
43603-418 DECAL, WARNINGDECAL, WARNING
-
53603-365 DECAL, "PERFORMANCE SERIES"DECAL, "PERFORMANCE SERIES"
-
63603-437 DECAL, RESERVOIRDECAL, RESERVOIR
-
73603-377 SCREW, MACHINESCREW, MACHINE
-
83603-385 KNOB, DAMPING ADJUSTER - LOW SPEEDKNOB, DAMPING ADJUSTER - LOW SPEED
-
94604-318 KIT, REBUILD - SHOCKKIT, REBUILD - SHOCK
-
105639-530 OIL, SHOCK - 1 QTOIL, SHOCK - 1 QT
