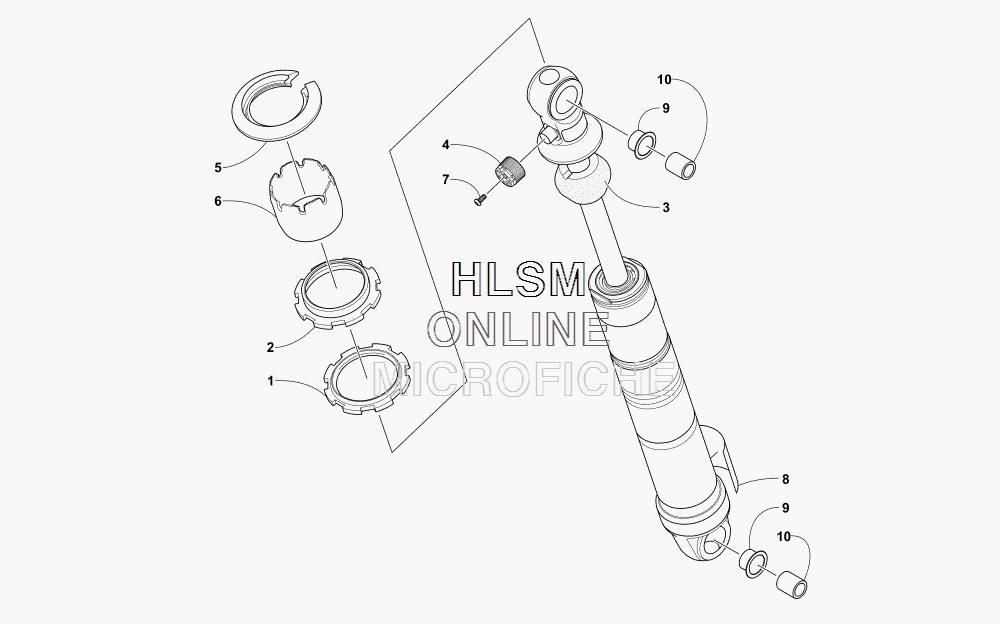

FRONT SUSPENSION SHOCK ABSORBER для Arctic Cat ZR 9000 SNO PRO 137 GREEN - 2017 года выпуска
-
№АртикулНазвание
-
-3703-592 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
-
13603-026 PRELOAD RINGPRELOAD RING
-
23603-027 PRELOAD RING, BACK-UPPRELOAD RING, BACK-UP
-
33603-024 BUMPER, SHAFTBUMPER, SHAFT
-
43603-386 KNOB, REBOUNDKNOB, REBOUND
-
54604-186 RETAINER, SPRINGRETAINER, SPRING
-
64604-016 GUIDE, SPRINGGUIDE, SPRING
-
73603-377 SCREW, MACHINESCREW, MACHINE
-
83603-570 DECAL, BODYDECAL, BODY
-
91604-222 BUSHINGBUSHING
-
102604-223 SLEEVESLEEVE
-
114604-185 KIT, SEAL/CAP REBUILDKIT, SEAL/CAP REBUILD
