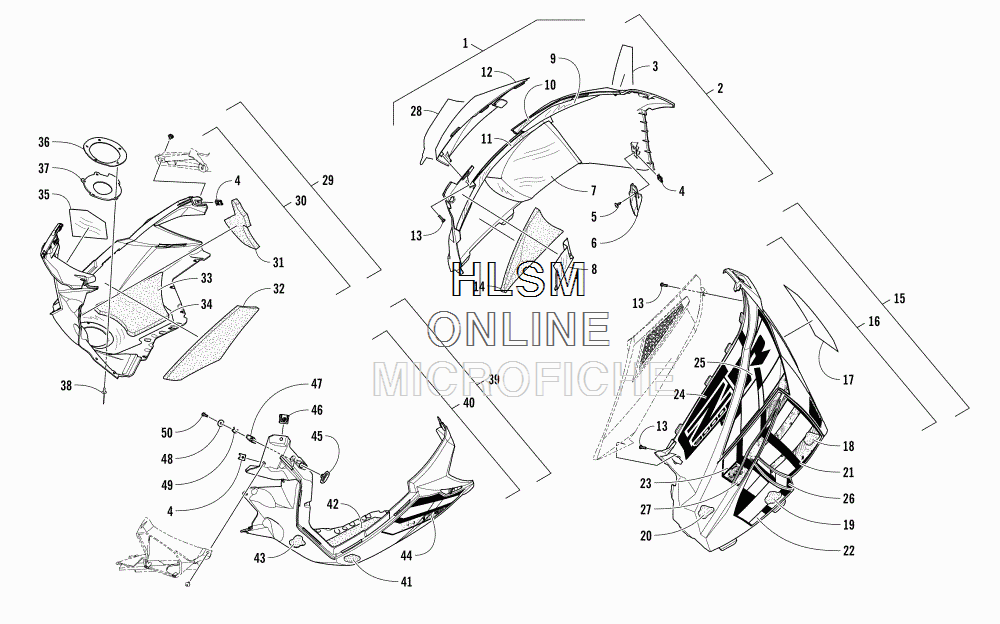

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat ZR 9000 SNO PRO 137 GREEN - 2017 года выпуска

№

Артикул

Название
1

5718-280 PANEL, SIDE W/DECALS - RIGHT - BLACK (INC. 2-14 AND 21-28)

PANEL, SIDE W/DECALS - RIGHT - BLACK (INC. 2-14 AND 21-28)

64 060 ₽
2

5718-030 ...PANEL, SIDE W/WARNING DECAL - RIGHT - BLACK (INC. 3-14)

...PANEL, SIDE W/WARNING DECAL - RIGHT - BLACK (INC. 3-14)

50 750 ₽
3

3621-487 ......DECAL, WARNING - ENGLISH

......DECAL, WARNING - ENGLISH

1 660 ₽
4

1623-939 ......NUT, U

......NUT, U

190 ₽
5

2623-166 ......SCREW, SELF-TAPPING

......SCREW, SELF-TAPPING

230 ₽
6

7606-292 ......HOOK, MOUNTING - RIGHT

......HOOK, MOUNTING - RIGHT

440 ₽
6

7606-293 ......HOOK, MOUNTING - LEFT

......HOOK, MOUNTING - LEFT

440 ₽
7

7606-076 ......FOIL, PROTECTIVE - LOWER - REAR - RIGHT

......FOIL, PROTECTIVE - LOWER - REAR - RIGHT

4 360 ₽
8

7606-498 ......FOIL, PROTECTIVE - UPPER FRONT - RIGHT

......FOIL, PROTECTIVE - UPPER FRONT - RIGHT

1 660 ₽
9

7606-288 ......FOIL, PROTECTIVE - UPPER - RIGHT

......FOIL, PROTECTIVE - UPPER - RIGHT

1 660 ₽
10

7606-432 ......FOIL, PROTECTIVE - RIGHT

......FOIL, PROTECTIVE - RIGHT

520 ₽
11

7606-116 ......FOIL, PROTECTIVE - MIDDLE - RIGHT

......FOIL, PROTECTIVE - MIDDLE - RIGHT

4 360 ₽
12

7606-091 ......VENT, SIDE PANEL

......VENT, SIDE PANEL

4 360 ₽
13

2623-211 ......SCREW

......SCREW

190 ₽
14

0617-754 ......FOAM, SIDE PANEL - LOWER FRONT - RIGHT

......FOAM, SIDE PANEL - LOWER FRONT - RIGHT

2 280 ₽
15

5718-281 PANEL, SIDE W/DECALS - LEFT - BLACK (INC. 4-6 AND 16-28)

PANEL, SIDE W/DECALS - LEFT - BLACK (INC. 4-6 AND 16-28)

54 700 ₽
16

5718-031 ...PANEL, SIDE W/WARNING DECAL - LEFT - BLACK (INC. 4-6 AND 17-20)

...PANEL, SIDE W/WARNING DECAL - LEFT - BLACK (INC. 4-6 AND 17-20)

22 250 ₽
17

3621-486 ......DECAL, WARNING - FRENCH

......DECAL, WARNING - FRENCH

1 660 ₽
18

0617-757 ......FOAM, SIDE PANEL - LOWER REAR - LEFT

......FOAM, SIDE PANEL - LOWER REAR - LEFT

2 280 ₽
19

0617-755 ......FOAM, SIDE PANEL - LOWER FRONT - LEFT

......FOAM, SIDE PANEL - LOWER FRONT - LEFT

2 280 ₽
20

0617-759 ......FOAM, SIDE PANEL - MIDDLE - LEFT

......FOAM, SIDE PANEL - MIDDLE - LEFT

2 280 ₽
21

3621-700 ...DECAL, SIDE PANEL - LOWER REAR - RIGHT

...DECAL, SIDE PANEL - LOWER REAR - RIGHT

4 780 ₽
21

3621-701 ...DECAL, SIDE PANEL - LOWER REAR - LEFT

...DECAL, SIDE PANEL - LOWER REAR - LEFT

4 780 ₽
22

3621-706 ...DECAL, SIDE PANEL - LOWER FRONT - RIGHT

...DECAL, SIDE PANEL - LOWER FRONT - RIGHT

4 780 ₽
22

3621-707 ...DECAL, SIDE PANEL - LOWER FRONT - LEFT

...DECAL, SIDE PANEL - LOWER FRONT - LEFT

4 780 ₽
23

3621-698 ...DECAL, SIDE PANEL - MID FRONT - RIGHT

...DECAL, SIDE PANEL - MID FRONT - RIGHT

2 070 ₽
23

3621-699 ...DECAL, SIDE PANEL - MID FRONT - LEFT

...DECAL, SIDE PANEL - MID FRONT - LEFT

2 070 ₽
24

3621-694 ...DECAL, SIDE PANEL - UPPER REAR - RIGHT

...DECAL, SIDE PANEL - UPPER REAR - RIGHT

3 110 ₽
24

3621-695 ...DECAL, SIDE PANEL - UPPER FRONT - LEFT

...DECAL, SIDE PANEL - UPPER FRONT - LEFT

5 820 ₽
25

3621-696 ...DECAL, SIDE PANEL - UPPER REAR - RIGHT

...DECAL, SIDE PANEL - UPPER REAR - RIGHT

4 780 ₽
25

3621-697 ...DECAL, SIDE PANEL - UPPER REAR - LEFT

...DECAL, SIDE PANEL - UPPER REAR - LEFT

4 780 ₽
26

3621-702 ...DECAL, SIDE PANEL - LOWER CENTER - RIGHT

...DECAL, SIDE PANEL - LOWER CENTER - RIGHT

2 490 ₽
26

3621-703 ...DECAL, SIDE PANEL - LOWER CENTER - LEFT

...DECAL, SIDE PANEL - LOWER CENTER - LEFT

2 490 ₽
27

3621-704 ...DECAL, SIDE PANEL - LOWER MID - RIGHT

...DECAL, SIDE PANEL - LOWER MID - RIGHT

1 660 ₽
27

3621-705 ...DECAL, SIDE PANEL - LOWER MID - LEFT

...DECAL, SIDE PANEL - LOWER MID - LEFT

1 660 ₽
28

3621-710 ...DECAL, SIDE PANEL - VENT LOWER - RIGHT

...DECAL, SIDE PANEL - VENT LOWER - RIGHT

3 110 ₽
29

5718-282 PLATE, SKID W/DECALS - RIGHT - BLACK (INC. 4, 30-35, AND 44-50)

PLATE, SKID W/DECALS - RIGHT - BLACK (INC. 4, 30-35, AND 44-50)

20 790 ₽
30

4718-970 ...PLATE, SKID W/O DECALS - RIGHT - BLACK (INC. 4, 31-35, AND 44-50)

...PLATE, SKID W/O DECALS - RIGHT - BLACK (INC. 4, 31-35, AND 44-50)

18 920 ₽
31

0617-760 ......FOAM, SKID PLATE - FRONT - RIGHT

......FOAM, SKID PLATE - FRONT - RIGHT

2 280 ₽
32

0617-762 ......FOAM, SKID PLATE - MIDDLE - RIGHT

......FOAM, SKID PLATE - MIDDLE - RIGHT

2 280 ₽
33

0617-764 ......FOAM, SKID PLATE - LOWER - RIGHT

......FOAM, SKID PLATE - LOWER - RIGHT

3 110 ₽
34

3612-192 ......FOIL, SKID PLATE - RIGHT

......FOIL, SKID PLATE - RIGHT

2 910 ₽
35

3612-274 ......FOIL, SKID PLATE - RIGHT

......FOIL, SKID PLATE - RIGHT

0 ₽
36

3612-193 PLATE, EXHAUST OUTLET

PLATE, EXHAUST OUTLET

690 ₽
37

3612-191 SEAL, EXHAUST OUTLET

SEAL, EXHAUST OUTLET

1 870 ₽
38

8061-708 RIVET

RIVET

150 ₽
39

5718-283 PLATE, SKID W/DECALS - LEFT - BLACK (INC. 4 AND 40-50)

PLATE, SKID W/DECALS - LEFT - BLACK (INC. 4 AND 40-50)

20 790 ₽
40

4718-971 ...PLATE, SKID W/O DECALS - LEFT - BLACK (INC. 4, 41-43, AND 45-50)

...PLATE, SKID W/O DECALS - LEFT - BLACK (INC. 4, 41-43, AND 45-50)

18 920 ₽
41

0617-765 ......FOAM, SKID PLATE - LOWER - LEFT

......FOAM, SKID PLATE - LOWER - LEFT

2 280 ₽
42

0617-763 ......FOAM, SKID PLATE - MIDDLE - LEFT

......FOAM, SKID PLATE - MIDDLE - LEFT

2 280 ₽
43

0617-761 ......FOAM, SKID PLATE - FRONT - LEFT

......FOAM, SKID PLATE - FRONT - LEFT

2 280 ₽
44

3621-708 ...DECAL, SKID PLATE - FRONT - RIGHT

...DECAL, SKID PLATE - FRONT - RIGHT

3 110 ₽
44

3621-709 ...DECAL, SKID PLATE - FRONT - LEFT

...DECAL, SKID PLATE - FRONT - LEFT

3 110 ₽
45

7606-265 ...KNOB, HOLDDOWN

...KNOB, HOLDDOWN

230 ₽
46

2623-005 ...CLIP, RETAINING

...CLIP, RETAINING

400 ₽
47

7606-296 ...PLATE, BACKING

...PLATE, BACKING

230 ₽
48

2623-171 ...WASHER, FLAT

...WASHER, FLAT

150 ₽
49

2623-155 ...CLIP, RETAINING

...CLIP, RETAINING

440 ₽
50

1623-933 ...SCREW, SELF-TAPPING

...SCREW, SELF-TAPPING

40 ₽
