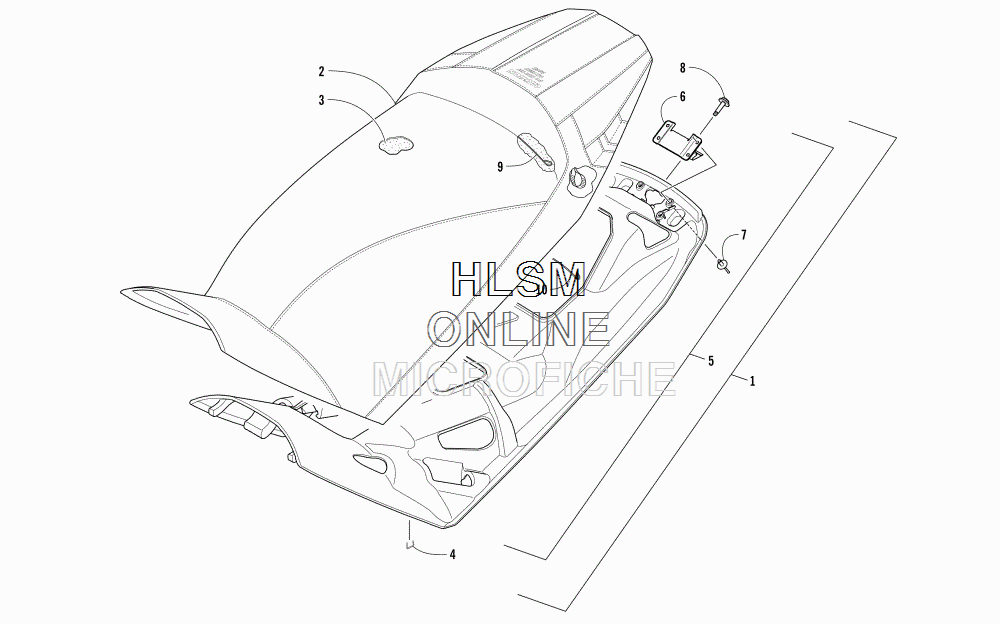

SEAT ASSEMBLY для Arctic Cat ZR 9000 SNO PRO 137 GREEN - 2017 года выпуска
-
№АртикулНазвание
-
16706-257 COMPLETE SEAT ASSEMBLY (INC. 2-7 AND 9-10)COMPLETE SEAT ASSEMBLY (INC. 2-7 AND 9-10)
-
26706-258 ...COVER, SEAT (INC. 9)...COVER, SEAT (INC. 9)
-
30717-214 ...FOAM, SEAT...FOAM, SEAT
-
40624-528 ...STAPLE...STAPLE
-
56706-251 ...SEAT-BASE (INC. 6-7)...SEAT-BASE (INC. 6-7)
-
66606-833 ......LATCH, SEAT......LATCH, SEAT
-
78061-708 ......RIVET......RIVET
-
80423-609 SCREW, MACHINESCREW, MACHINE
-
93606-369 WIRE, SEATWIRE, SEAT
-
106606-461 WIRE, SEATWIRE, SEAT
