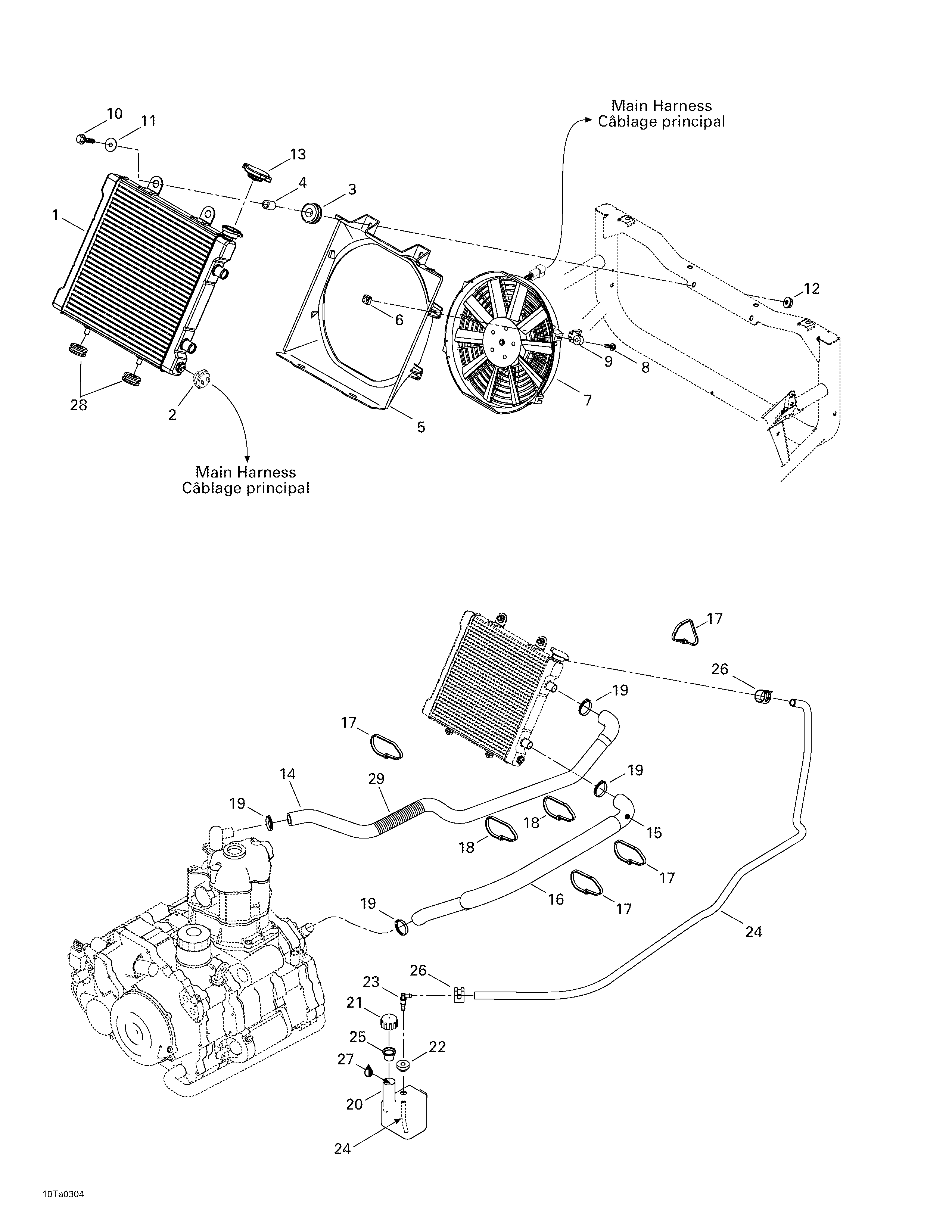

01- Cooling System для BRP Traxter Autoshift XT - 2003
-
№АртикулНазвание
-
1709200088 Radiator Ass'y. Includes 1 - 2.Radiator Ass'y. Includes 1 - 2.
-
2709200089 Temperature SensorTemperature Sensor
-
3293720053 GrommetGrommet
-
4293900019 BushingBushing
-
5709200013 Outllet DeflectorOutllet Deflector
-
6232862412 Square Nut M6Square Nut M6
-
7709200004 Fan Ass'yFan Ass'y
-
8207562044 Hex. Flanged Screw M6 x20 (Scotch Grip)Hex. Flanged Screw M6 x20 (Scotch Grip)
-
9709200017 Fan SupportFan Support
-
10207663044 Hex. Flanged Screw M6 x 30Hex. Flanged Screw M6 x 30
-
11391302000 Flat WasherFlat Washer
-
12233261414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
13709200033 Radiator Pressure CapRadiator Pressure Cap
-
14709200060 Radiator Inlet HoseRadiator Inlet Hose
-
15709200043 Radiator Outlet HoseRadiator Outlet Hose
-
16709200032 Protective ShieldProtective Shield
-
17414115200 Tie Rap 180 mmTie Rap 180 mm
-
18293750008 Tie Rap 350 mmTie Rap 350 mm
-
19293650109 Spring ClampSpring Clamp
-
20709200099 Coolant TankCoolant Tank
-
21709200009 Tank CapTank Cap
-
22570135100 GrommetGrommet
-
23414580600 Elbow Male ConnectorElbow Male Connector
-
24415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
25709200034 Protector CapProtector Cap
-
26414554800 Spring ClampSpring Clamp
-
27293600024 AntifreezeAntifreeze
-
28293720053 GrommetGrommet
-
29709200031 Protective ShieldProtective Shield
