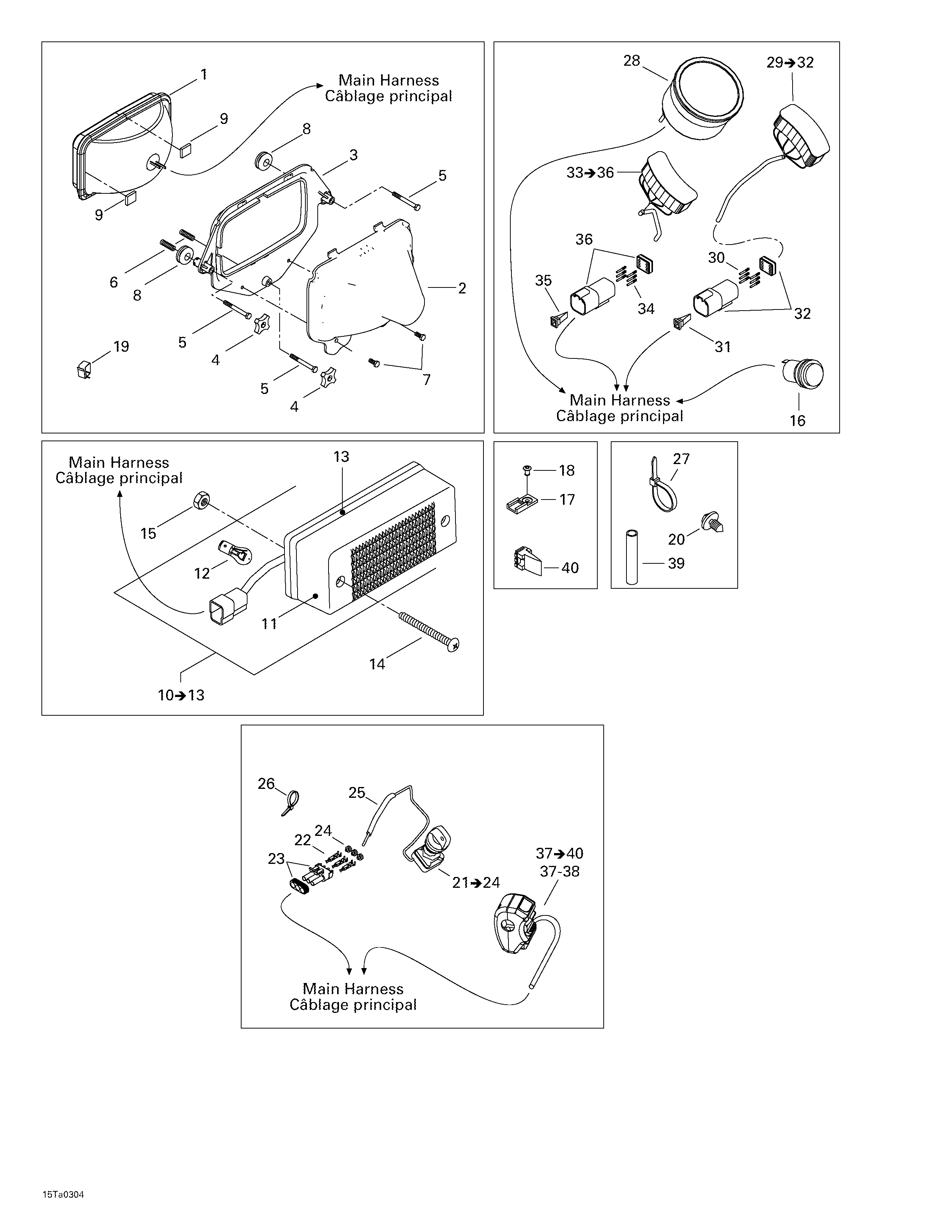

10- Electrical Accessories для BRP Traxter Autoshift XT - 2003
-
№АртикулНазвание
-
1710000001 HeadlampHeadlamp
-
2705000023 ProtectorProtector
-
3705000474 Headlamp SupportHeadlamp Support
-
4572106600 HandleHandle
-
5250000008 Hex. Screw K40 x 40Hex. Screw K40 x 40
-
6517168600 SpringSpring
-
7241641040 Flanged Screw K40 x 10Flanged Screw K40 x 10
-
8293720053 GrommetGrommet
-
9293830088 Rubber PadRubber Pad
-
10710000102 Tail Lamp Housing. Includes 10 - 13.Tail Lamp Housing. Includes 10 - 13.
-
11710000055 Lens (Red)Lens (Red)
-
12410504100 Tail Lamp BulbTail Lamp Bulb
-
13710000129 GasketGasket
-
14208656091 Screw M5 x 60Screw M5 x 60
-
15233251414 Elastic Flanged Stop Nut M5Elastic Flanged Stop Nut M5
-
16710000024 DC Outlet PlugDC Outlet Plug
-
17409014200 ClipClip
-
18390402400 RivetRivet
-
19414227300 ClipClip
-
20293730018 Dart-MountDart-Mount
-
21710000042 Ignition Switch. Includes 21 - 24.Ignition Switch. Includes 21 - 24.
-
21710000137 Blank Key (''A'' Type). Includes 21 - 24.Blank Key (''A'' Type). Includes 21 - 24.
-
21710000101 Blank Key (''B'' Type). Includes 21 - 24.Blank Key (''B'' Type). Includes 21 - 24.
-
22278000223 Female Terminal (18 Gauge)Female Terminal (18 Gauge)
-
23278000273 Male Housing (3 Circuits)Male Housing (3 Circuits)
-
24278000218 Wire Seal (16-18 Gauge) (Green)Wire Seal (16-18 Gauge) (Green)
-
25710000171 Protector TubeProtector Tube
-
26293750002 Tie Rap 130 mmTie Rap 130 mm
-
27293750002 Tie Rap 130 mmTie Rap 130 mm
-
27293750008 Tie Rap 350 mmTie Rap 350 mm
-
27414115200 Tie Rap 180 mmTie Rap 180 mm
-
28710000328 SpeedometerSpeedometer
-
29710000089 R.H. Warning Lamp. Includes 29 - 32.R.H. Warning Lamp. Includes 29 - 32.
-
30409014800 Male TerminalMale Terminal
-
31409014600 Male Lock (6 Circuits)Male Lock (6 Circuits)
-
32409015200 Male Housing (6 Circuits)Male Housing (6 Circuits)
-
33710000008 L.H. Warning Lamp. Includes 33 - 36.L.H. Warning Lamp. Includes 33 - 36.
-
34409014800 Male TerminalMale Terminal
-
35409014600 Male Lock (6 Circuits)Male Lock (6 Circuits)
-
36409015200 Male Housing (6 Circuits)Male Housing (6 Circuits)
-
37710000088 Multi-function Switch. Includes 37 - 40.Multi-function Switch. Includes 37 - 40.
-
38710000173 Back CoverBack Cover
-
39415080000 Tubing 16 mm. P-XT.Tubing 16 mm. P-XT.
-
40278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
