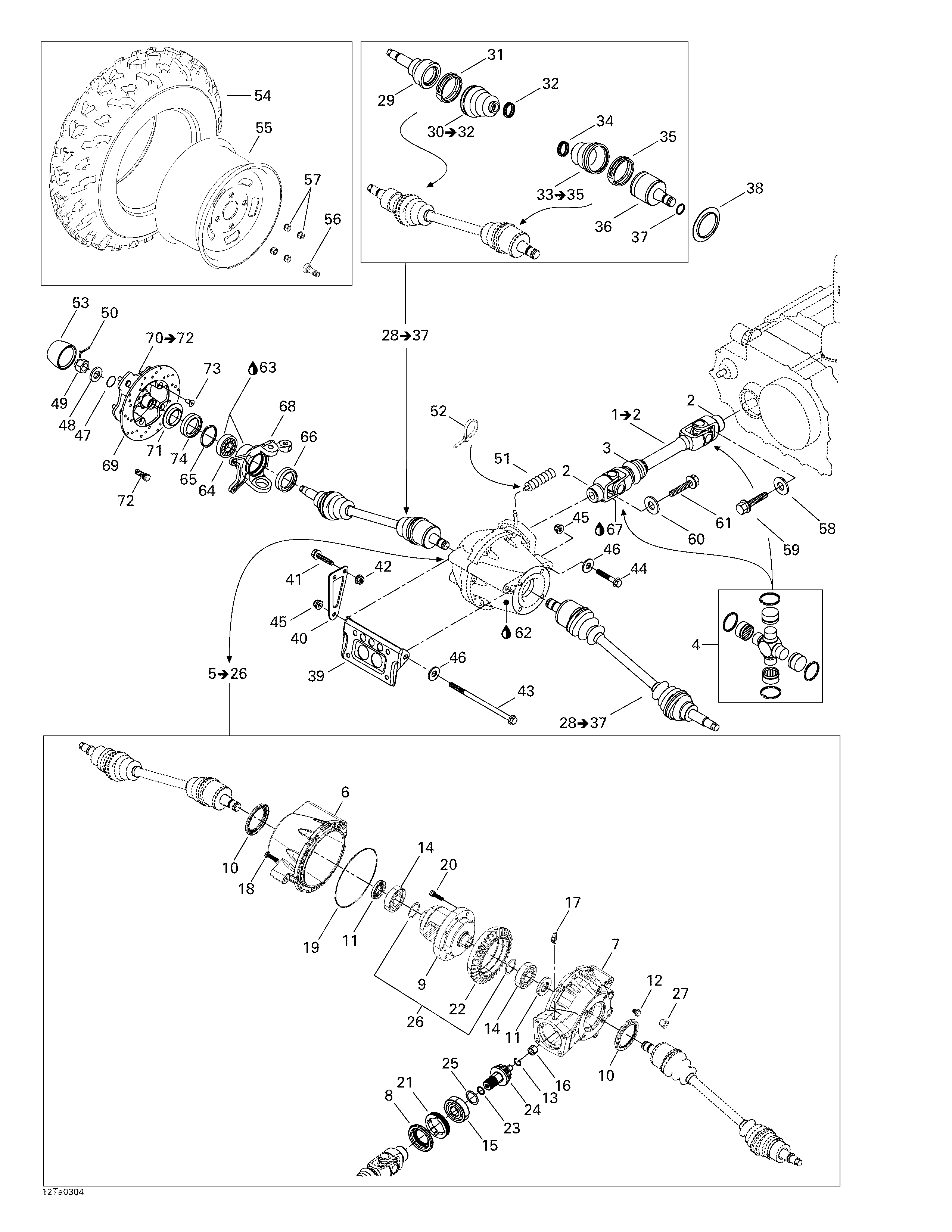

05- Drive System, Front для BRP Traxter Autoshift XT - 2003
-
№АртикулНазвание
-
1703500001 Front Propeller Shaft Kit. Includes 1 - 2.Front Propeller Shaft Kit. Includes 1 - 2.
-
2705400036 Wear SleeveWear Sleeve
-
3705400051 ProtectorProtector
-
4703500002 Universal Joint Packing KitUniversal Joint Packing Kit
-
6705400099 Differential CapDifferential Cap
-
7705500177 Differential CarrierDifferential Carrier
-
8705400027 Oil SealOil Seal
-
9705400004 DifferentialDifferential
-
10705400019 V Oil SealV Oil Seal
-
11705500255 Oil SealOil Seal
-
12705500245 Drain PlugDrain Plug
-
13705500269 Retaining RingRetaining Ring
-
14705500259 Ball BearingBall Bearing
-
15705500260 Ball BearingBall Bearing
-
16705500261 Needle BearingNeedle Bearing
-
17705500262 Vent ValveVent Valve
-
18705500264 ScrewScrew
-
19705500265 SealSeal
-
20705400101 Ring Gear ScrewRing Gear Screw
-
21705500266 NutNut
-
22705400103 Gear (36 Teeth)Gear (36 Teeth)
-
23705500267 O-RingO-Ring
-
24705500268 Gear (10 Teeth)Gear (10 Teeth)
-
25703500049 Pinion Gear ShimPinion Gear Shim
-
26703500050 Differential Shim KitDifferential Shim Kit
-
27705500228 Filler/Level PlugFiller/Level Plug
-
28705400125 R.H. CV Joint. Includes 28 - 37.R.H. CV Joint. Includes 28 - 37.
-
705400124 LH CV JointLH CV Joint
-
29705400093 CV JointCV Joint
-
30705400127 Wheel Boot Kit. Includes 30 - 32.Wheel Boot Kit. Includes 30 - 32.
-
31705400180 Clamp (Big)Clamp (Big)
-
32705400064 Clamp (Small)Clamp (Small)
-
33705400126 Differential Boot Kit. Includes 33 - 35.Differential Boot Kit. Includes 33 - 35.
-
34705400064 Clamp (Small)Clamp (Small)
-
35705400181 Clamp (Big)Clamp (Big)
-
36705400128 R.H. Plunging JointR.H. Plunging Joint
-
705400129 LH Plunging JointLH Plunging Joint
-
37705400042 CirclipCirclip
-
38705400016 Wear SleeveWear Sleeve
-
39705400068 BracketBracket
-
40705400069 Differential BracketDifferential Bracket
-
41207682044 Hex. Flanged Screw M8 x 20Hex. Flanged Screw M8 x 20
-
42233281414 Elastic Flanged Stop Nut M8Elastic Flanged Stop Nut M8
-
43250000024 Hex. Flanged Screw M10 x 200 (Scotch Grip)Hex. Flanged Screw M10 x 200 (Scotch Grip)
-
44207506044 Hex. Flanged Screw M10 x 60 (Scotch Grip)Hex. Flanged Screw M10 x 60 (Scotch Grip)
-
45233101414 Elastic Flanged Stop Nut M10Elastic Flanged Stop Nut M10
-
46250200003 Flat WasherFlat Washer
-
47705500271 O-RingO-Ring
-
48250200019 WasherWasher
-
49232291413 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
50250400016 Cotter PinCotter Pin
-
51705400066 Rubber BellowRubber Bellow
-
52293750001 Tie Rap, 94 mmTie Rap, 94 mm
-
53705400012 Wheel CapWheel Cap
-
54705400009 Front TireFront Tire
-
55705400010 Front RimFront Rim
-
56705400053 Valve, RimValve, Rim
-
57705400013 Nut M10Nut M10
-
58211200041 WasherWasher
-
59207581646 Hex. Flanged Screw M8 x 16 (Scotch Grip)Hex. Flanged Screw M8 x 16 (Scotch Grip)
-
60250200014 WasherWasher
-
61250000060 Hex. Flanged Screw M10 x 16 (Scotch Grip)Hex. Flanged Screw M10 x 16 (Scotch Grip)
-
62293600011 Redline Pump Oil, 75W90, 12 x 6 ozRedline Pump Oil, 75W90, 12 x 6 oz
-
63293550010 Synthtic Grease, 400 gSynthtic Grease, 400 g
-
64705400088 Angle BearingAngle Bearing
-
65293370019 CirclipCirclip
-
66293250090 SealSeal
-
67293800005 Loctite 271Loctite 271
-
68709400095 R.H. KnuckleR.H. Knuckle
-
709400097 LH KnuckleLH Knuckle
-
69705600168 Brake Disk (Front)Brake Disk (Front)
-
70705500254 Front Wheel Hub. Includes 70 - 72.Front Wheel Hub. Includes 70 - 72.
-
71705500100 Wear SleeveWear Sleeve
-
72250300020 Wheel Stud M10Wheel Stud M10
-
73235381646 Torx Screw M8 x 16 (Scotch Grip)Torx Screw M8 x 16 (Scotch Grip)
-
74705500099 Oil SealOil Seal
