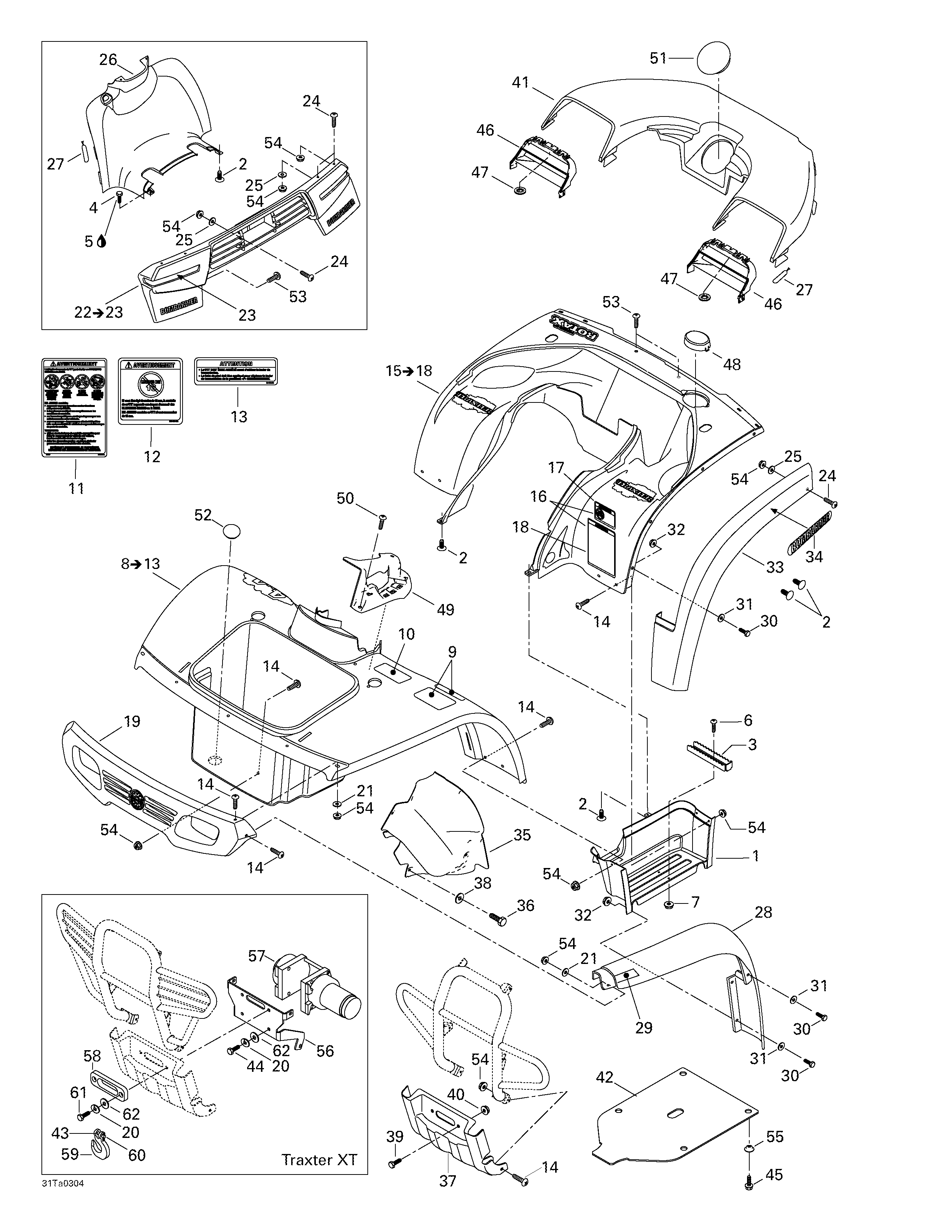

09- Body And Accessories для BRP Traxter Autoshift XT - 2003
-
№АртикулНазвание
-
1705000592 Footwell R.HFootwell R.H
-
705000593 Footwell L.HFootwell L.H
-
2293730011 DartDart
-
3705000631 FootpegFootpeg
-
4207661244 Hex. Flanged Screw M6 x 12Hex. Flanged Screw M6 x 12
-
5293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
6211000123 Phillips Screw M6 x 20Phillips Screw M6 x 20
-
7233261414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
8703500140 Front Fender Kit (Yellow). Includes 8 - 13. P-XT.Front Fender Kit (Yellow). Includes 8 - 13. P-XT.
-
703500137 Front Fender Kit (Yellow). P-STD.Front Fender Kit (Yellow). P-STD.
-
703500227 Front Fender Kit (Red). P-STD.Front Fender Kit (Red). P-STD.
-
703500142 Front Fender Kit (Green). P-XT.Front Fender Kit (Green). P-XT.
-
703500241 Front Fender Kit (Green). P-STD.Front Fender Kit (Green). P-STD.
-
9704900034 Warning Label (English)Warning Label (English)
-
10704900007 Warning Label (Drive Select Lever) (English)Warning Label (Drive Select Lever) (English)
-
11704900002 Warning Label (Injuries/Death) (French)Warning Label (Injuries/Death) (French)
-
12704900012 Warning Label (Under 16) (French)Warning Label (Under 16) (French)
-
13704900008 Warning Label (Drive Select Lever) (French)Warning Label (Drive Select Lever) (French)
-
14211000123 Phillips Screw M6 x 20Phillips Screw M6 x 20
-
15703500217 Rear Fender Kit (Red). Includes 15 - 18. P-STD.Rear Fender Kit (Red). Includes 15 - 18. P-STD.
-
703500114 Rear Fender Kit (Green) (English). P-STD.Rear Fender Kit (Green) (English). P-STD.
-
703500141 Rear Fender Kit (Green) (English). P-XT.Rear Fender Kit (Green) (English). P-XT.
-
703500112 Rear Fender Kit (Yellow) (English). P-STD.Rear Fender Kit (Yellow) (English). P-STD.
-
703500139 Rear Fender Kit (Yellow) (English). P-XT.Rear Fender Kit (Yellow) (English). P-XT.
-
16704900116 Warning Label (Passenger) (English). P-STD.Warning Label (Passenger) (English). P-STD.
-
704900119 Warning Label (Passenger) (English). P-XT.Warning Label (Passenger) (English). P-XT.
-
17704900006 Label (Passenger) (French)Label (Passenger) (French)
-
18704900120 Warning Label. (Tire Pressure) (French) P-STD.Warning Label. (Tire Pressure) (French) P-STD.
-
704900121 Warning Label. (Tire Pressure) (French) P-XT.Warning Label. (Tire Pressure) (French) P-XT.
-
19705000594 Front FaciaFront Facia
-
20234181401 Lock Washer. P-XT.Lock Washer. P-XT.
-
21224060201 Flat WasherFlat Washer
-
22703500208 Rear Facia. Includes 22 - 23.Rear Facia. Includes 22 - 23.
-
23704900085 Rear Reflector Band (Red) R.HRear Reflector Band (Red) R.H
-
704900086 Rear Reflector Band (Red) L.HRear Reflector Band (Red) L.H
-
24211000123 Screw M6 x 20Screw M6 x 20
-
25224060201 Flat WasherFlat Washer
-
26705000596 Tank CoverTank Cover
-
27570023800 LatchLatch
-
28705000597 L.H. Front MudguardL.H. Front Mudguard
-
705000598 R.H. Front MudguardR.H. Front Mudguard
-
29705000083 L.H. Front Reflector (Orange)L.H. Front Reflector (Orange)
-
705000026 R.H. Front Reflector (Orange)R.H. Front Reflector (Orange)
-
30207162044 Hex. Screw M6 x 20Hex. Screw M6 x 20
-
31224060201 Flat WasherFlat Washer
-
32233261414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
33705000599 L.H. Rear MudguardL.H. Rear Mudguard
-
705000600 R.H. Rear MudguardR.H. Rear Mudguard
-
34704900026 Bombardier LabelBombardier Label
-
35705000133 L.H. ProtectorL.H. Protector
-
705000134 R.H. ProtectorR.H. Protector
-
36210261680 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
37705000601 Protection PlateProtection Plate
-
38224061201 Flat WasherFlat Washer
-
39207602544 Hex. Flanged Screw M10 x 25Hex. Flanged Screw M10 x 25
-
40233201414 Elastic Flanged Stop Nut M10. P-STD.Elastic Flanged Stop Nut M10. P-STD.
-
41705000576 Fender Cover (Red)Fender Cover (Red)
-
705000193 Fender Cover (Green)Fender Cover (Green)
-
705000179 Fender Cover (Yellow)Fender Cover (Yellow)
-
42705200535 Skid PlateSkid Plate
-
43250400021 Clevis Pin. P-XT.Clevis Pin. P-XT.
-
44250000042 Screw Socket. P-XT.Screw Socket. P-XT.
-
45207582044 Hex. Flanged Screw M8 x 20 (Scotch Grip)Hex. Flanged Screw M8 x 20 (Scotch Grip)
-
46705000180 L.H. Grill (Black)L.H. Grill (Black)
-
705000181 R.H. Grill (Black)R.H. Grill (Black)
-
47250100000 Push NutPush Nut
-
48705000132 Cap CoverCap Cover
-
49705000081 IndicatorIndicator
-
50414745900 ScrewScrew
-
51705000207 CapCap
-
52570041600 Rubber CoverRubber Cover
-
53732600009 Phillips Screw M6 x 18Phillips Screw M6 x 18
-
54233261414 Elastic Flanged Stop Nut M6Elastic Flanged Stop Nut M6
-
55705200533 CupCup
-
56705000184 Mounting Plate. P-XT.Mounting Plate. P-XT.
-
57705000185 Winch. P-XT.Winch. P-XT.
-
58705000194 Cable Guide. P-XT.Cable Guide. P-XT.
-
59705000618 Hook. P-XT.Hook. P-XT.
-
60250400022 Cotter Pin. P-XT.Cotter Pin. P-XT.
-
61250000041 Screw Socket. P-XT.Screw Socket. P-XT.
-
62234081410 Flat Washer. P-XT.Flat Washer. P-XT.
