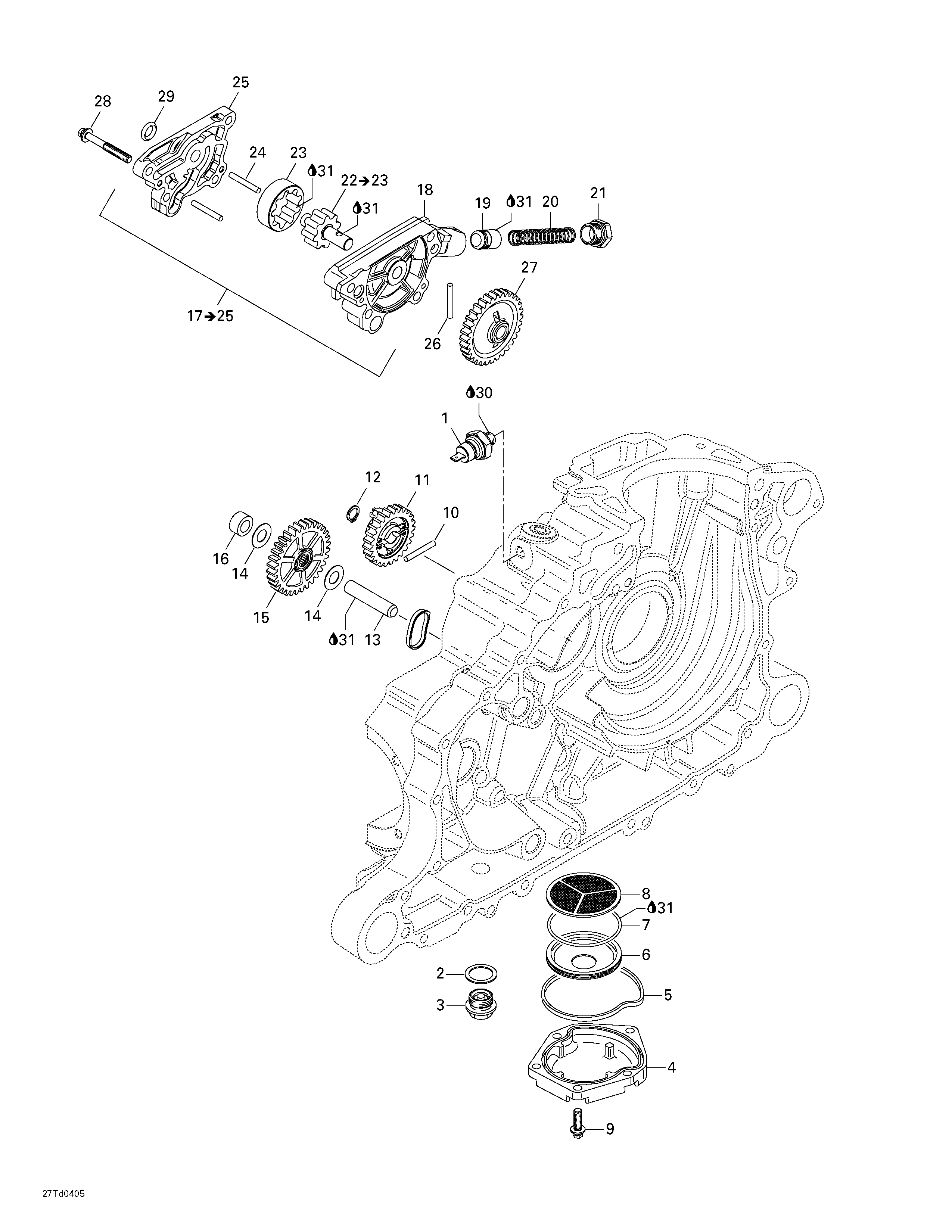

01- Engine Lubrication для BRP Quest XT - 2004
-
№АртикулНазвание
-
1710000313 Oil Pressure SwitchOil Pressure Switch
-
2420552280 O RingO Ring
-
3420840277 Drain PlugDrain Plug
-
4420211940 Oil Sieve CoverOil Sieve Cover
-
5420650560 Rubber RingRubber Ring
-
6420256650 Oil CollectorOil Collector
-
7420650695 O-RingO-Ring
-
8420256575 Oil SieveOil Sieve
-
9420440232 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
10420232430 Needle PinNeedle Pin
-
11420635191 Idle Gear (25 Teeth)Idle Gear (25 Teeth)
-
12420245330 Snap RingSnap Ring
-
13420229300 Location PinLocation Pin
-
14420927952 Thrust WasherThrust Washer
-
15420834267 Sprocket (32 Teeth)Sprocket (32 Teeth)
-
16420247080 SpacerSpacer
-
17420296505 Oil Pump Ass'y. Includes 17 - 25.Oil Pump Ass'y. Includes 17 - 25.
-
18420610220 Oil Pump HousingOil Pump Housing
-
19420256921 Piston ValvePiston Valve
-
20420238220 Compression SpringCompression Spring
-
21420641167 Screw Plug M16 x 1.25Screw Plug M16 x 1.25
-
22420220814 Oil Pump Shaft. Includes 22 - 23.Oil Pump Shaft. Includes 22 - 23.
-
23420256935 Oil Pump Outer RotorOil Pump Outer Rotor
-
24420232430 Needle PinNeedle Pin
-
25420610210 Oil Pump CoverOil Pump Cover
-
26420232430 Needle PinNeedle Pin
-
27420635220 Oil Pump Gear (32 Teeth)Oil Pump Gear (32 Teeth)
-
28420440322 Torx Flanged Screw M6 x 45Torx Flanged Screw M6 x 45
-
29420250405 O-RingO-Ring
-
30293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
31293600039 Engine Oil 4 strokes. 5W40, 12 x 1 literEngine Oil 4 strokes. 5W40, 12 x 1 liter
