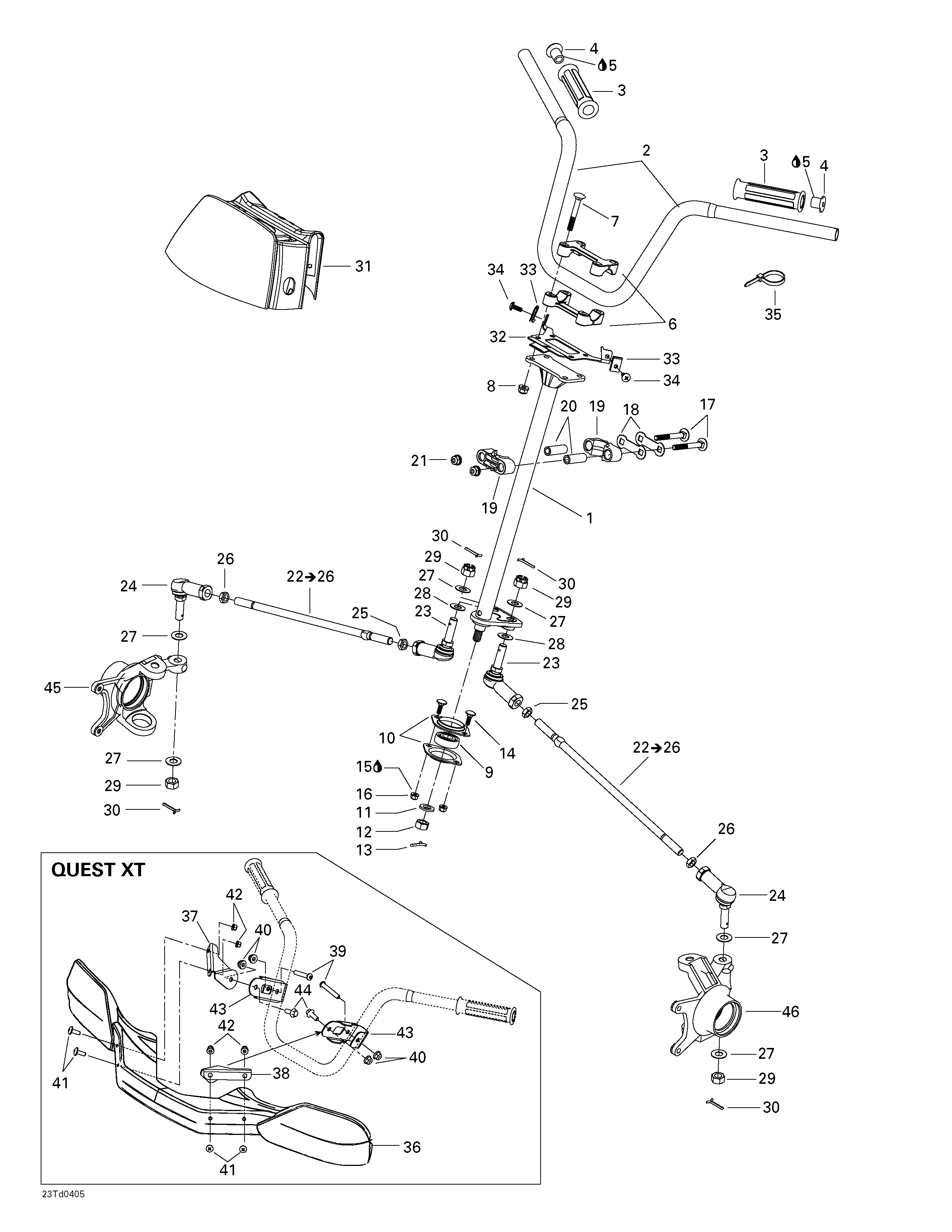

07- Steering System для BRP Quest XT - 2004
-
№АртикулНазвание
-
1709400089 Main tubeMain tube
-
2709400199 Handle barHandle bar
-
3709400157 Black gripBlack grip
-
4709400189 End pieceEnd piece
-
5293800100 Loctite 406, 7 ozLoctite 406, 7 oz
-
6709400028 Steering clampSteering clamp
-
7207786544 Carriage bolt M8 x 65Carriage bolt M8 x 65
-
8233281414 Hex flanged elastic nut M8Hex flanged elastic nut M8
-
9709400224 Thrust bearingThrust bearing
-
10709400152 Thrust washerThrust washer
-
11234021410 Flat washer M12Flat washer M12
-
12250100045 Nut M12Nut M12
-
13211400017 Cotter pinCotter pin
-
14207762544 Carriage bolt M6 x 25Carriage bolt M6 x 25
-
15293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
16233261414 Hex flanged elastic nut M6Hex flanged elastic nut M6
-
17207787044 Carriage bolt M8 x 70Carriage bolt M8 x 70
-
18506150600 Stopper plateStopper plate
-
19709400034 Half-housingHalf-housing
-
20506150500 Housing bushingHousing bushing
-
21233281414 Hex flanged elastic nut M8Hex flanged elastic nut M8
-
22709400240 Tie Rod ass'y. Includes 22 - 26.Tie Rod ass'y. Includes 22 - 26.
-
23709400241 R.h. ball jointR.h. ball joint
-
24709400242 LH ball jointLH ball joint
-
27706200281 Hardened washerHardened washer
-
28503189276 WasherWasher
-
29250100045 Nut M12Nut M12
-
30211400013 Cotter pinCotter pin
-
31709400229 Steering coverSteering cover
-
32709400077 Cover supportCover support
-
33211100050 Speed nut M6Speed nut M6
-
34211000123 Phillips screw M6 x 20Phillips screw M6 x 20
-
35414115200 Tie-rapTie-rap
-
293750008 Tie-rap 350 mmTie-rap 350 mm
-
36705000183 Hand protector. XT Quest XT.Hand protector. XT Quest XT.
-
37709400116 R.h. support. XT Quest XT.R.h. support. XT Quest XT.
-
38709400117 LH support. XT Quest XT.LH support. XT Quest XT.
-
39205484546 Phillips screw M8 x 45. XT Quest XT.Phillips screw M8 x 45. XT Quest XT.
-
40233281414 Hex flanged elastic nut m8. XT Quest XT.Hex flanged elastic nut m8. XT Quest XT.
-
41211000123 Phillips screw M6 x 20. XT Quest XT.Phillips screw M6 x 20. XT Quest XT.
-
42233261414 Hex flanged elastic nut M6. XT Quest XT.Hex flanged elastic nut M6. XT Quest XT.
-
43709400118 U'' shape bracket`XT Quest XT.``U'' shape bracket`XT Quest XT.``
-
44207682044 Hex flanged screw M8 x 20. XT Quest XT.Hex flanged screw M8 x 20. XT Quest XT.
-
45709400095 R.h. knuckleR.h. knuckle
-
46709400097 LH knuckleLH knuckle
