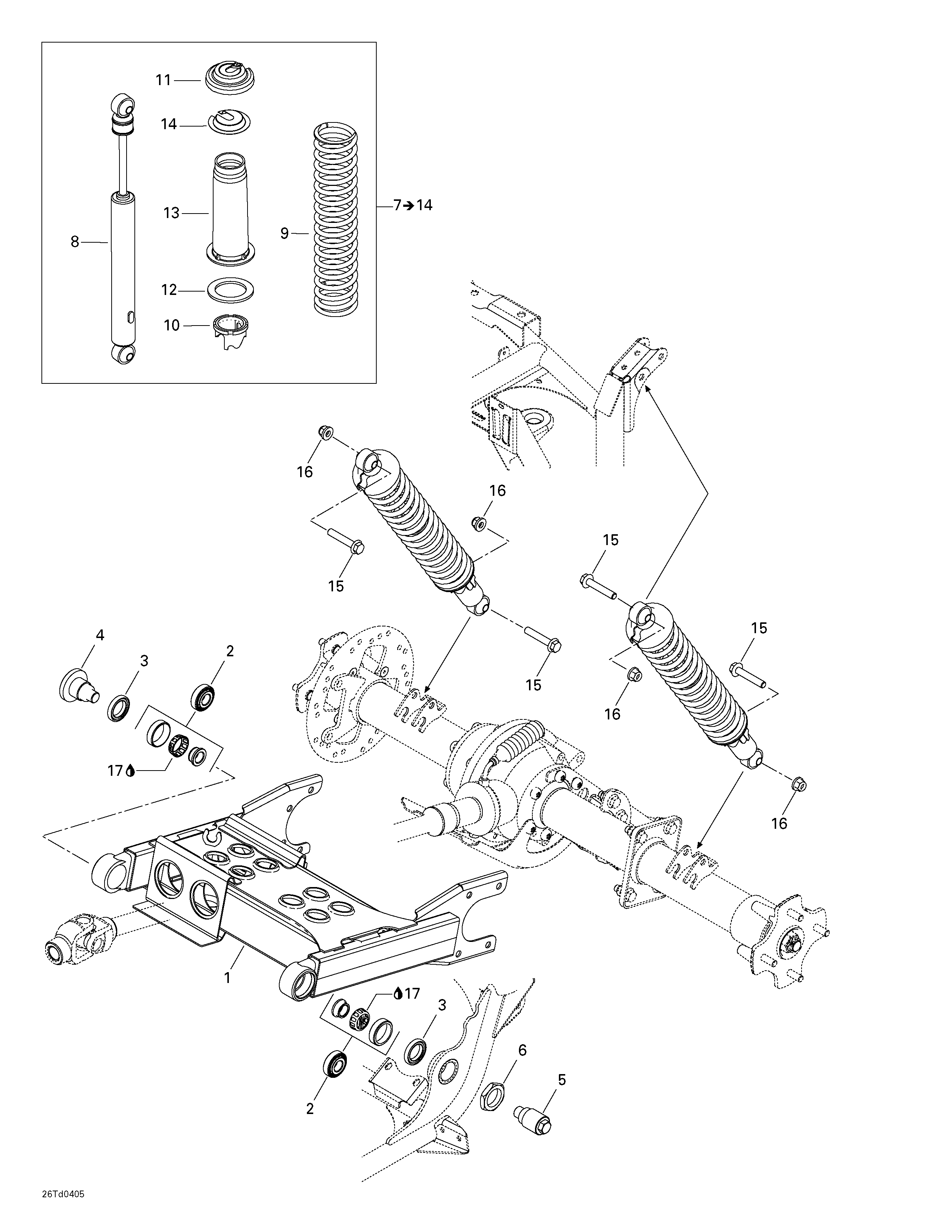

08- Rear Suspension для BRP Quest XT - 2004
-
№АртикулНазвание
-
1706000298 Swing ArmSwing Arm
-
2706000169 Cone bearingCone bearing
-
3706000010 Oil sealOil seal
-
4706000092 R.h. pivot boltR.h. pivot bolt
-
5706000093 LH pivot boltLH pivot bolt
-
6706000006 Hex. jam nutHex. jam nut
-
8706000328 Rear shockRear shock
-
9706000301 Rear springRear spring
-
706000304 Rear spring. (camo)Rear spring. (camo)
-
10706000317 Adjuster ringAdjuster ring
-
11503140600 Spring stopperSpring stopper
-
12706000028 Ring HolderRing Holder
-
13706000032 ProtectorProtector
-
14503141600 CapCap
-
15207605544 Hex. flanged Screw M10 x 55Hex. flanged Screw M10 x 55
-
16233201414 Hex. flanged elastic nut M10Hex. flanged elastic nut M10
-
17293550010 Synthetic grease, 400 gSynthetic grease, 400 g
