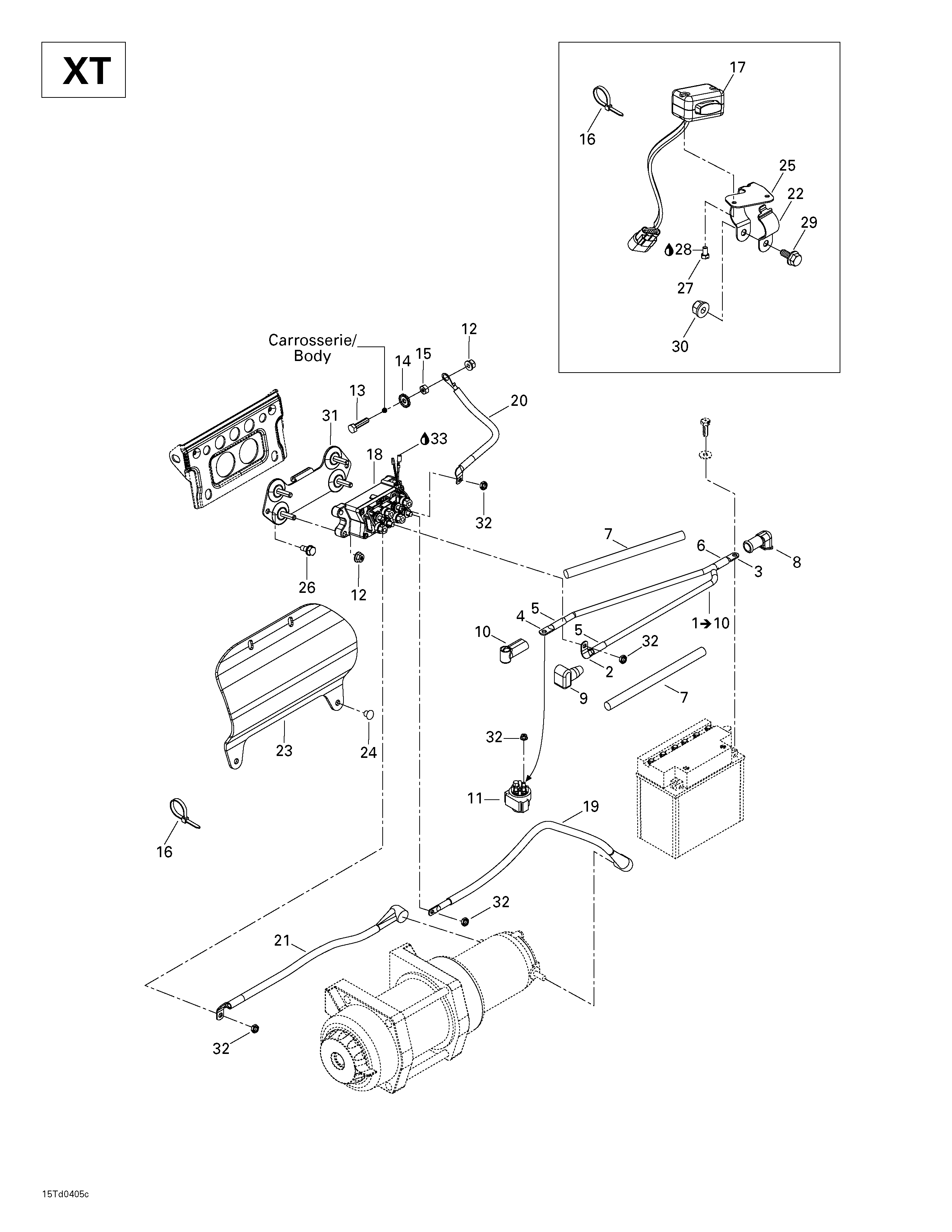

10- Electrical Accessories (Quest XT) для BRP Quest XT - 2004
-
№АртикулНазвание
-
1710000434 Battery Cable. Includes 1 - 10. Quest XT.Battery Cable. Includes 1 - 10. Quest XT.
-
2710000475 Open barrel. Quest XT.Open barrel. Quest XT.
-
3710000478 Open barrel. Quest XT.Open barrel. Quest XT.
-
4710000479 Open barrel. Quest XT.Open barrel. Quest XT.
-
5710000483 Heat Shrink. Quest XT.Heat Shrink. Quest XT.
-
6275500578 Heat Shrink. Quest XT.Heat Shrink. Quest XT.
-
7710000497 Protector tube. Quest XT.Protector tube. Quest XT.
-
8710000495 Protector cap. Quest XT.Protector cap. Quest XT.
-
9710000523 Cap. Quest XT.Cap. Quest XT.
-
10710000527 Cap. Quest XT.Cap. Quest XT.
-
11710000344 Starter relay. Quest XT.Starter relay. Quest XT.
-
12232261414 Elastic stop nut M6. Quest XT.Elastic stop nut M6. Quest XT.
-
13207162044 Hex. screw M6 x 20. Quest XT.Hex. screw M6 x 20. Quest XT.
-
14234461608 External tooth lock washer 6 mm. Quest XT.External tooth lock washer 6 mm. Quest XT.
-
15232061414 Hex. nut M6. Quest XT.Hex. nut M6. Quest XT.
-
16414115200 Tie rap. Quest XT.Tie rap. Quest XT.
-
293750008 Tie rap 350 mm. Quest XT.Tie rap 350 mm. Quest XT.
-
17710000405 Interrupter. Quest XT.Interrupter. Quest XT.
-
18710000409 Solenoid. Quest XT.Solenoid. Quest XT.
-
19710000438 Solenoid cable. Quest XT.Solenoid cable. Quest XT.
-
20710000439 Solenoid cable. Quest XT.Solenoid cable. Quest XT.
-
21710000440 Solenoid cable. Quest XT.Solenoid cable. Quest XT.
-
22710000566 Collar. Quest XT.Collar. Quest XT.
-
23710000511 Protector pad. Quest XT.Protector pad. Quest XT.
-
24293730011 Black dart. Quest XT.Black dart. Quest XT.
-
25710000564 Black support. Quest XT.Black support. Quest XT.
-
26210261080 Hex. flanged forming screw M6 x 10. Quest XT.Hex. flanged forming screw M6 x 10. Quest XT.
-
27250000153 Hex. slotted head screw. Quest XT.Hex. slotted head screw. Quest XT.
-
28293800060 Loctite 243, 10 ml. Quest XT.Loctite 243, 10 ml. Quest XT.
-
29207661684 Hex. flanged screw M6 x 16. Quest XT.Hex. flanged screw M6 x 16. Quest XT.
-
30233261494 Elastic flanged nut M6. Quest XT.Elastic flanged nut M6. Quest XT.
-
31710000535 Support. Quest XT.Support. Quest XT.
-
32232561414 Elastic Stop Nut M6. Quest XT.Elastic Stop Nut M6. Quest XT.
-
33293550004 Dielectric Grease, 150 g. Quest XT.Dielectric Grease, 150 g. Quest XT.
