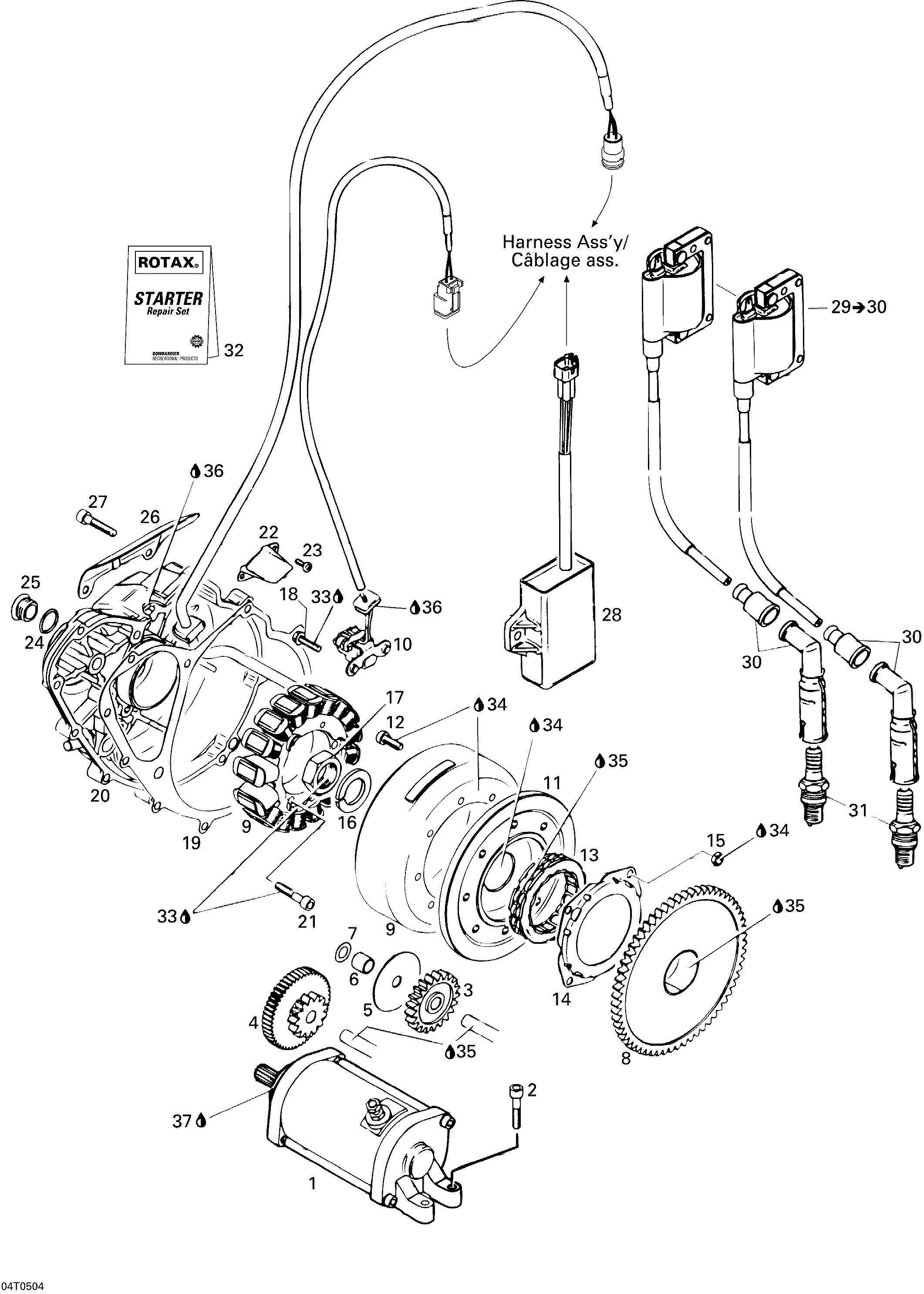

03- Ignition And Magneto для BRP DS 650/DS 650 X - 2005
-
№АртикулНазвание
-
1293300103 O-Ring For Starter (Not Illustrated)O-Ring For Starter (Not Illustrated)
-
1420294351 Electric StarterElectric Starter
-
1420294354 Brush Kit For Starter (Not Illustrated)Brush Kit For Starter (Not Illustrated)
-
2205063044 Socket Head Screw M6 X 30Socket Head Screw M6 X 30
-
3420234655 Intermediate Gear (24 Teeth)Intermediate Gear (24 Teeth)
-
4420234756 Intermediate Gear (11/52 Teeth)Intermediate Gear (11/52 Teeth)
-
5420627080 Thrust WasherThrust Washer
-
6420247785 SpacerSpacer
-
7420827590 Thrust WasherThrust Washer
-
8420634319 Starting Gear (61 Teeth)Starting Gear (61 Teeth)
-
9420295172 Magneto Ass'Y 12V/280WMagneto Ass'Y 12V/280W
-
10420265153 Pickup Ass'YPickup Ass'Y
-
11420264577 Flywheel HubFlywheel Hub
-
12420640980 Hex. Locking Screw M6 X 16Hex. Locking Screw M6 X 16
-
13420958857 Sprag ClutchSprag Clutch
-
14420259192 Sprag Clutch HousingSprag Clutch Housing
-
15420242031 Nut Bm6Nut Bm6
-
16420945759 Lock WasherLock Washer
-
17420842237 Hex Nut M22Hex Nut M22
-
18420941925 Tapping Screw M5 X 16Tapping Screw M5 X 16
-
19420250920 GasketGasket
-
20420211291 Ignition CoverIgnition Cover
-
21420241811 Socket Screw M6 X 35Socket Screw M6 X 35
-
22420251880 Cable Inner CoverCable Inner Cover
-
23420240195 Tapping ScrewTapping Screw
-
24420250890 O-RingO-Ring
-
25420241801 Drain PlugDrain Plug
-
26420251990 Cable External CoverCable External Cover
-
27205063044 Socket Head Screw M6 X 30Socket Head Screw M6 X 30
-
28420664170 Amplifier BoxAmplifier Box
-
29420265357 Ignition Coil. Includes 29 to 30Ignition Coil. Includes 29 to 30
-
30420665010 Spark Plug CapSpark Plug Cap
-
31707000008 Spark Plug (Ngk/Dr8Ea)Spark Plug (Ngk/Dr8Ea)
-
32420294354 Brush KitBrush Kit
-
33293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
34413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
35293600039 Engine Oil 4 Strokes, 5w40, 12 X 1 LiterEngine Oil 4 Strokes, 5w40, 12 X 1 Liter
-
36420297906 Sealing Compound, 30 mlSealing Compound, 30 ml
-
37420899271 Petamo Grease, Ghy133n, 400 GPetamo Grease, Ghy133n, 400 G
