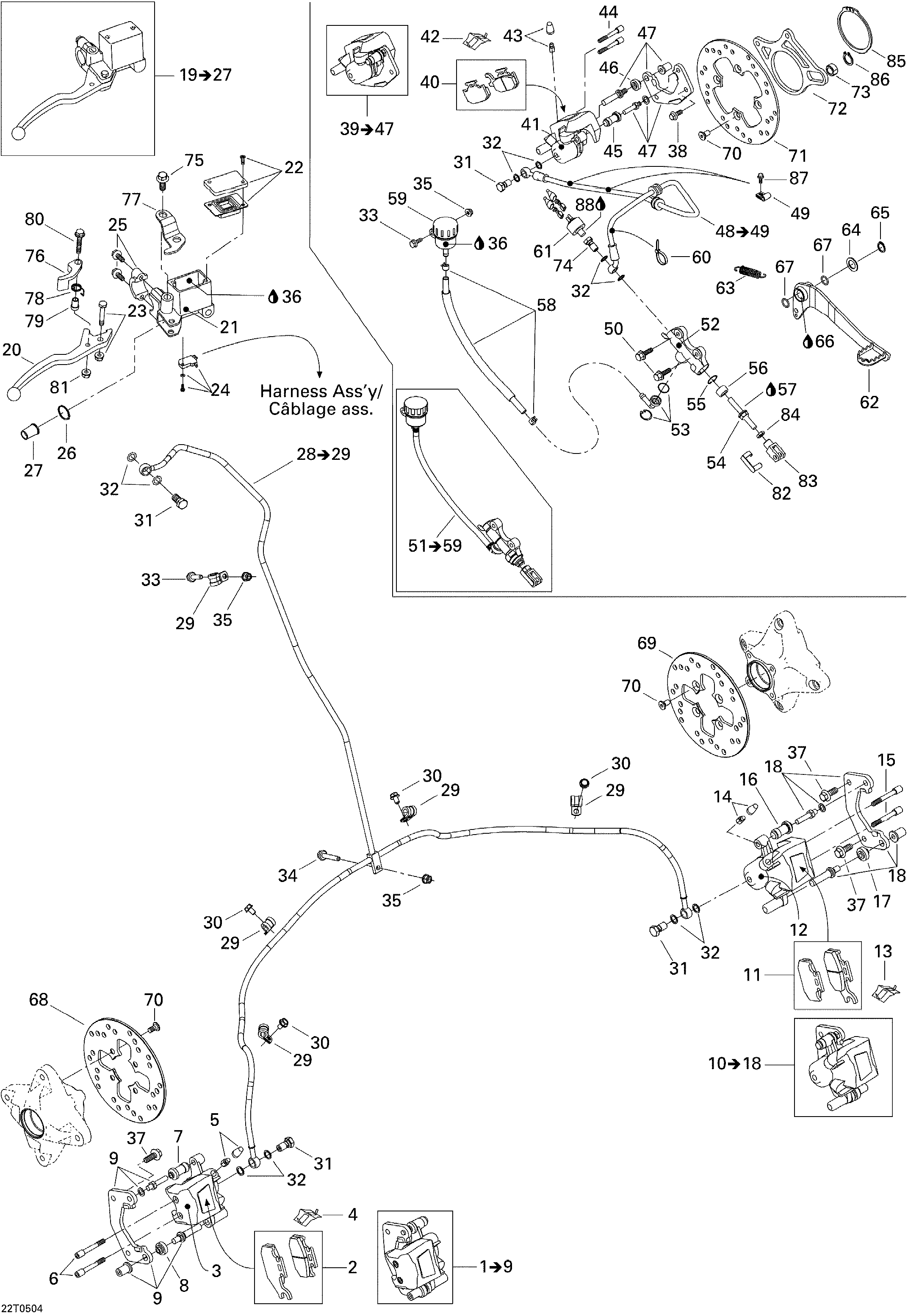

06- Hydraulic Brake для BRP DS 650/DS 650 X - 2005
-
№АртикулНазвание
-
1705600043 RH Caliper. Includes 1 To 9RH Caliper. Includes 1 To 9
-
2705600004 Brake Pad KitBrake Pad Kit
-
3705600078 Piston SetPiston Set
-
4705600079 SpringSpring
-
5705600080 Bleeder ScrewBleeder Screw
-
6705600081 Pin SetPin Set
-
7705600082 Compression BootCompression Boot
-
8705600083 Compression BootCompression Boot
-
9705600062 RH Brake SupportRH Brake Support
-
10705600044 LH Caliper. Includes 10 To 18LH Caliper. Includes 10 To 18
-
11705600014 Brake Pad KitBrake Pad Kit
-
12705600078 Piston SetPiston Set
-
13705600079 SpringSpring
-
14705600080 Bleeder ScrewBleeder Screw
-
15705600081 Pin SetPin Set
-
16705600082 Compression BootCompression Boot
-
17705600083 Compression BootCompression Boot
-
18705600061 LH Brake SupportLH Brake Support
-
19705600045 Master Cylinder. Includes 19 To 27Master Cylinder. Includes 19 To 27
-
20705600057 Arm LeverArm Lever
-
21705600058 Piston KitPiston Kit
-
22705600084 Boot KitBoot Kit
-
23705600085 Bolt KitBolt Kit
-
24705600086 Switch KitSwitch Kit
-
25705600087 Bracket KitBracket Kit
-
26705600088 CirclipCirclip
-
27705600089 Compression BootCompression Boot
-
28705600303 Front Brake Hose. Includes 28 To 29Front Brake Hose. Includes 28 To 29
-
30210261080 Hex Flanged Forming Screw M6 X 10Hex Flanged Forming Screw M6 X 10
-
31705600396 Banjo BoltBanjo Bolt
-
32414920600 Washer For Hose ConnectionWasher For Hose Connection
-
33207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
34207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
35233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
36293600063 Brake Fluid, Srf (dot 4)Brake Fluid, Srf (dot 4)
-
36293600062 Brake Fluid, Gtlma (dot 4) 12 X 354 mlBrake Fluid, Gtlma (dot 4) 12 X 354 ml
-
37207582044 Hex Flanged Screw M8 X 20 (scotch Grip)Hex Flanged Screw M8 X 20 (scotch Grip)
-
38207581244 Hex Flanged Screw M8 X 12 (scotch Grip)Hex Flanged Screw M8 X 12 (scotch Grip)
-
39705600345 Rear Caliper. Includes 39 To 47Rear Caliper. Includes 39 To 47
-
40705600014 Brake Pad KitBrake Pad Kit
-
41705600078 Piston SetPiston Set
-
42705600079 SpringSpring
-
43705600080 Bleeder ScrewBleeder Screw
-
44705600081 Pin SetPin Set
-
45705600082 Compression BootCompression Boot
-
46705600083 Compression BootCompression Boot
-
47705600298 LH Caliper SupportLH Caliper Support
-
48705600304 Rear Brake Hose. Includes 48 To 49Rear Brake Hose. Includes 48 To 49
-
50207581646 Flanged Screw M8 X 16 (scotch Grip)Flanged Screw M8 X 16 (scotch Grip)
-
51705600300 Master Cylinder Ass'Y. Includes 51 To 59Master Cylinder Ass'Y. Includes 51 To 59
-
52705600063 Piston SetPiston Set
-
53705600064 Pusher BracketPusher Bracket
-
54705600301 Rod Ass'y. Includes 54 To 57Rod Ass'y. Includes 54 To 57
-
55705600068 CirclipCirclip
-
56705600090 Compression BootCompression Boot
-
58705600190 Hose Ass'yHose Ass'y
-
59705600182 Oil TankOil Tank
-
60414115200 Tie-RapTie-Rap
-
61710000099 Brake SwitchBrake Switch
-
62705600094 Brake PedalBrake Pedal
-
63705600098 Break Pedal SpringBreak Pedal Spring
-
64503107800 WasherWasher
-
65293370012 CirclipCirclip
-
66293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
67293300053 O-RingO-Ring
-
68705600042 RH Brake DiscRH Brake Disc
-
69705600093 LH Brake DiscLH Brake Disc
-
70235381646 Torx Screw M8 X 16 (scotch Grip)Torx Screw M8 X 16 (scotch Grip)
-
71705500059 Brake DiscBrake Disc
-
72705600305 Rear Caliper SupportRear Caliper Support
-
73705500068 Caliper GuideCaliper Guide
-
74705600092 Banjo BoltBanjo Bolt
-
75250000029 Hex Screw M10 X 16Hex Screw M10 X 16
-
76705600095 Lever ArmLever Arm
-
77705600389 Lever StopperLever Stopper
-
78705600055 SpringSpring
-
79705600097 Snap RingSnap Ring
-
80210264080 Hex Screw M6 X 40Hex Screw M6 X 40
-
81233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
82250400007 PinPin
-
83705600100 YokeYoke
-
84232180600 Nut M8Nut M8
-
85293370014 CirclipCirclip
-
86293370015 CirclipCirclip
-
87210261680 Hex Flanged Forming Screw M6 X 16Hex Flanged Forming Screw M6 X 16
-
88293800013 Loctite, Pipe Sealant, 250 mlLoctite, Pipe Sealant, 250 ml
