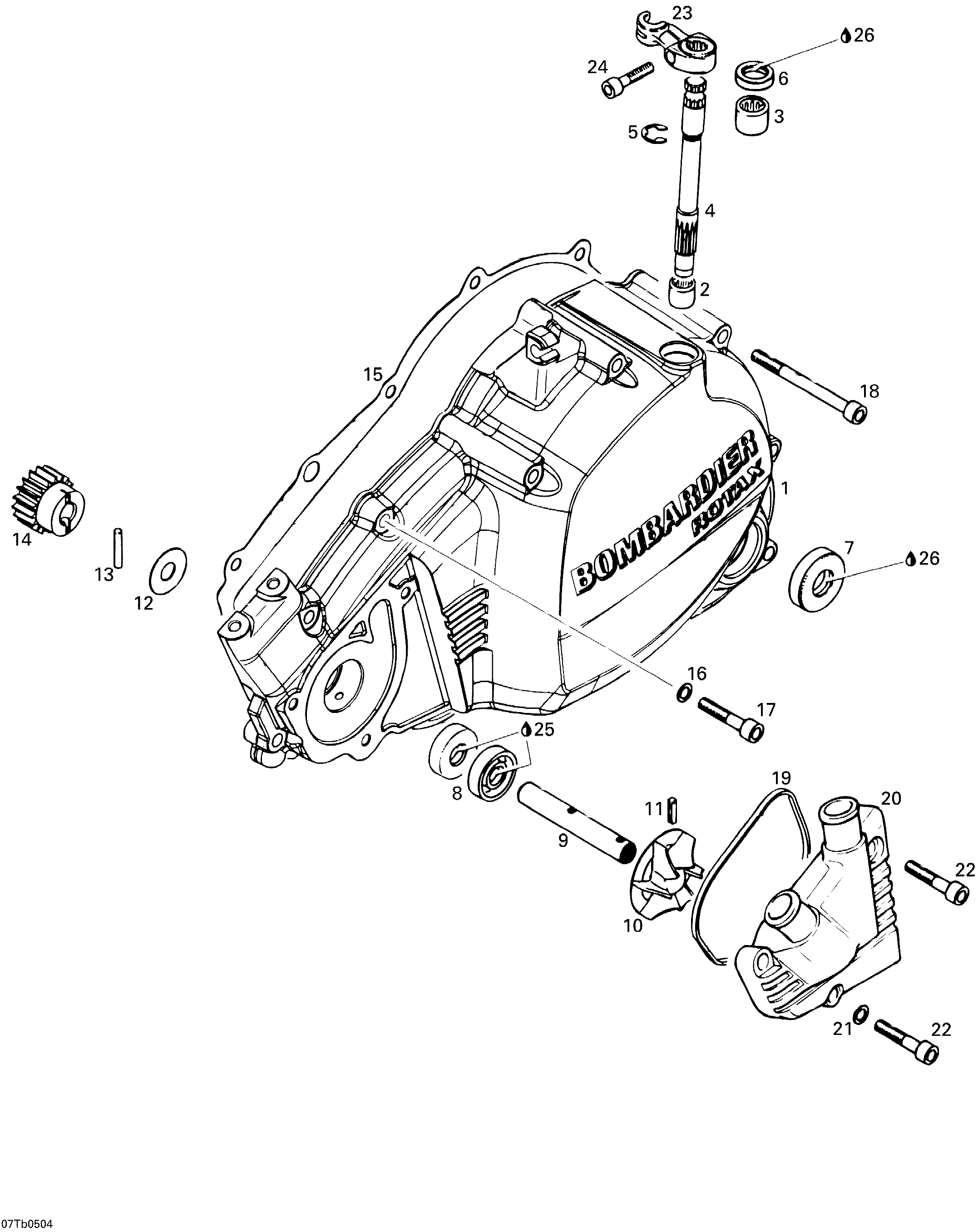

05- Clutch Housing And Water Pump для BRP DS 650/DS 650 X - 2005
-
№АртикулНазвание
-
1420610120 Clutch CoverClutch Cover
-
2420232275 Needle BushingNeedle Bushing
-
3420232480 Needle Bushing 12-16-10Needle Bushing 12-16-10
-
4420237023 Clutch Shaft Release (11 Dents)Clutch Shaft Release (11 Dents)
-
5420845390 Retaining RingRetaining Ring
-
6420250992 Oil SealOil Seal
-
7420250450 Oil SealOil Seal
-
8420230195 Oil SealOil Seal
-
9420237040 Water Pump ShaftWater Pump Shaft
-
10420222272 Water Pump ImpellerWater Pump Impeller
-
11420229280 Spring PinSpring Pin
-
12420827590 Thrust WasherThrust Washer
-
13420232420 Needle PinNeedle Pin
-
14420234620 Gear (18 Teeth)Gear (18 Teeth)
-
15420230581 GasketGasket
-
16420230415 Seal WasherSeal Washer
-
17205063044 Socket Head Screw M6 X 30Socket Head Screw M6 X 30
-
18420240532 Socket Head Screw M6 X 75Socket Head Screw M6 X 75
-
19420850430 O-RingO-Ring
-
20420211270 Waterpump CoverWaterpump Cover
-
21420230415 Seal WasherSeal Washer
-
22205062544 Socket Screw M6 X 25Socket Screw M6 X 25
-
23420248305 Lever-Release ClutchLever-Release Clutch
-
24205062544 Socket Screw M6 X 25Socket Screw M6 X 25
-
25413707000 Molykote 111, 150 GMolykote 111, 150 G
-
26293550030 Grease, Super LubeGrease, Super Lube
