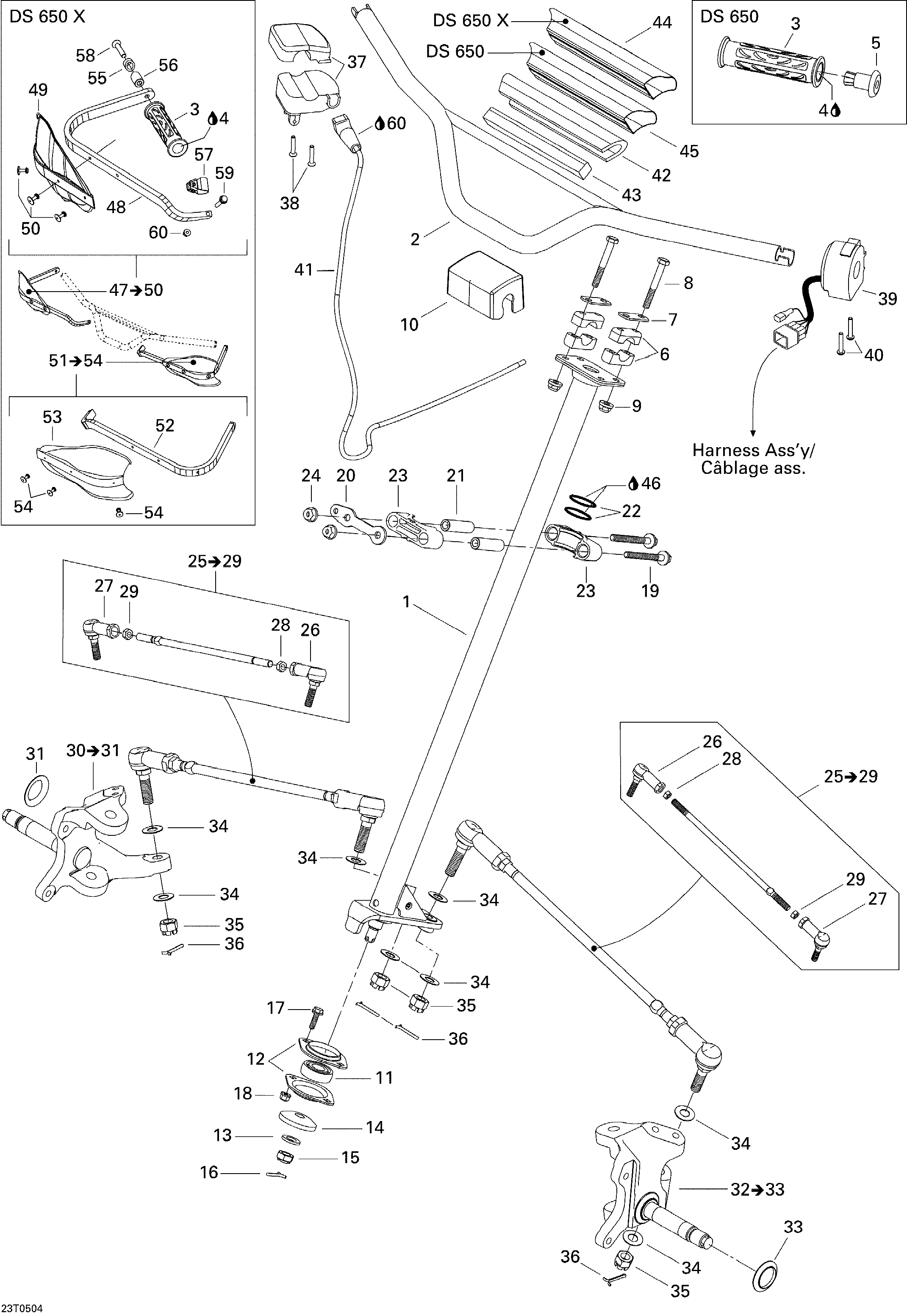

07- Steering System для BRP DS 650/DS 650 X - 2005
-
№АртикулНазвание
-
1709400222 Main TubeMain Tube
-
2709400218 Handle Bar (Black)Handle Bar (Black)
-
3709400157 Grip (Black)Grip (Black)
-
4293800100 Loctite 406, 7 OzLoctite 406, 7 Oz
-
5709400189 End Piece. DS 650End Piece. DS 650
-
6506151622 Steering SupportSteering Support
-
7506151196 ReinforcementReinforcement
-
8207086044 Hex Screw M8 X 60Hex Screw M8 X 60
-
9233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
10705000371 CoverCover
-
11709400224 Thrust BearingThrust Bearing
-
12709400152 Thrust WasherThrust Washer
-
13234021410 Flat Washer 12 mmFlat Washer 12 mm
-
14250200017 WasherWasher
-
15232220413 Hex Castellated Nut M12Hex Castellated Nut M12
-
16211400017 Cotter PinCotter Pin
-
17207562044 Flanged Screw M6 X 20 (Scotch Grip)Flanged Screw M6 X 20 (Scotch Grip)
-
18233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
19207687544 Hex Flanged Screw M8 X 75Hex Flanged Screw M8 X 75
-
20709400053 Stopper PlateStopper Plate
-
21709400072 BushingBushing
-
22293300068 O-RingO-Ring
-
23709400052 Half BushingHalf Bushing
-
24233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
25709400240 Tie Rod Ass'yTie Rod Ass'y
-
26709400241 RH Ball JointRH Ball Joint
-
27709400242 LH Ball JointLH Ball Joint
-
30709400208 RH KnuckleRH Knuckle
-
31705400056 Wear RingWear Ring
-
32709400210 LH KnuckleLH Knuckle
-
33705400056 Wear RingWear Ring
-
34706200281 Hard WasherHard Washer
-
35250100045 Nut M12Nut M12
-
36211400013 Cotter PinCotter Pin
-
37709400016 Throttle HandleThrottle Handle
-
38205353060 Screw M5 X 30Screw M5 X 30
-
39710000072 Multi Function SwitchMulti Function Switch
-
40205453046 Screw M5 X 30Screw M5 X 30
-
41709400048 Throttle CableThrottle Cable
-
42709400087 Steering Cover FoamSteering Cover Foam
-
43709400094 Foam InsertFoam Insert
-
44709400243 Steering Cover. DS 650 XSteering Cover. DS 650 X
-
45709400298 Steering Cover. DS 650Steering Cover. DS 650
-
46293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
47709400177 RH Protector Ass'y. DS 650 XRH Protector Ass'y. DS 650 X
-
48709400159 RH Handle Protector. DS 650 XRH Handle Protector. DS 650 X
-
49705000461 Protector Plate. DS 650 XProtector Plate. DS 650 X
-
50293150103 Pop Rivet. DS 650 XPop Rivet. DS 650 X
-
51709400179 LH Protector Ass'y. DS 650 XLH Protector Ass'y. DS 650 X
-
52709400160 LH Handle Protector. DS 650 XLH Handle Protector. DS 650 X
-
53705000461 Protector Plate. DS 650 XProtector Plate. DS 650 X
-
54293150103 Pop Rivet. DS 650 XPop Rivet. DS 650 X
-
55709400161 Bracket. DS 650 XBracket. DS 650 X
-
56709400162 Bracket. DS 650 XBracket. DS 650 X
-
57709400174 Handle Bracket. DS 650 XHandle Bracket. DS 650 X
-
58205384044 Socket Head Screw. DS 650 XSocket Head Screw. DS 650 X
-
59207663044 Hex Flanged Screw M6 X 30. DS 650 XHex Flanged Screw M6 X 30. DS 650 X
-
60233261414 Hex Flanged Elastic Nut M6. DS 650 XHex Flanged Elastic Nut M6. DS 650 X
-
61293600041 Cable Lubricant, 400 G. DS 650 XCable Lubricant, 400 G. DS 650 X
