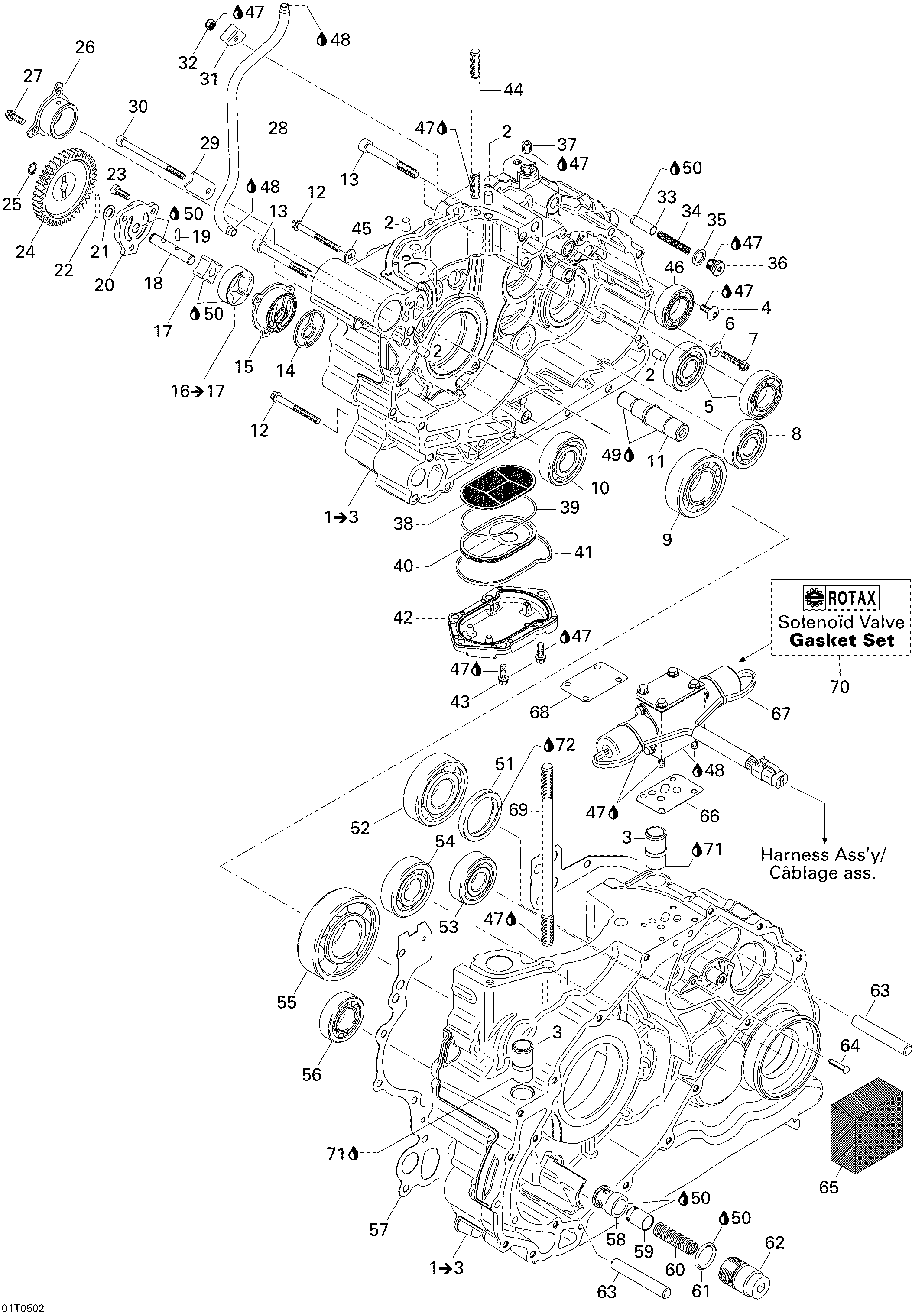

01- Crankcase для BRP Traxter 5 Speed - 2005
-
№АртикулНазвание
-
1420295881 Crankcase Ass'Y. Includes 1 to 2Crankcase Ass'Y. Includes 1 to 2
-
2420632010 Pin M8 X 12Pin M8 X 12
-
3420224260 TubeTube
-
4420241531 Screw M6 X 13Screw M6 X 13
-
5420232764 Ball Bearing 6205Ball Bearing 6205
-
6420627400 WasherWasher
-
7420241941 Hex Screw M6 X 30Hex Screw M6 X 30
-
8420932095 Ball Bearing 6304EBall Bearing 6304E
-
9420232490 Roller BearingRoller Bearing
-
10420632200 Ball Bearing 63/22Ball Bearing 63/22
-
11420220570 Intermediate Gear ShaftIntermediate Gear Shaft
-
12420640351 Hex Flanged Screw M6 X 65Hex Flanged Screw M6 X 65
-
13420841991 Socket Head Screw M8 X 70Socket Head Screw M8 X 70
-
14420650960 Rubber RingRubber Ring
-
15420610140 Ring HousingRing Housing
-
16420956275 Oil Pump Rotor Ass'Y. Includes 16 to 17Oil Pump Rotor Ass'Y. Includes 16 to 17
-
18420220592 Oil Pump ShaftOil Pump Shaft
-
19420232730 Needle PinNeedle Pin
-
20420211852 Oil Pump CoverOil Pump Cover
-
21420827590 Thrust WasherThrust Washer
-
22420232970 Needle Pin M4 X 25Needle Pin M4 X 25
-
23420240400 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
24420635030 Oil Pump Gear (40 Teeth)Oil Pump Gear (40 Teeth)
-
25420245330 Snap RingSnap Ring
-
26420610131 Ring HousingRing Housing
-
27420241751 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
28420224622 Oil PipeOil Pipe
-
29420627437 Holding StripHolding Strip
-
30420241481 Socket Head Screw M6 X 90Socket Head Screw M6 X 90
-
31420627432 Holding StripHolding Strip
-
32232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
33420256590 PistonPiston
-
34420238020 Compression SpringCompression Spring
-
35420250015 Sealing RingSealing Ring
-
36420241700 Plug Screw M12 X 1.5Plug Screw M12 X 1.5
-
37420840651 Plug Screw M12 X 1.5Plug Screw M12 X 1.5
-
38420256572 Oil SieveOil Sieve
-
39420931385 O-RingO-Ring
-
40420256652 Oil CollectorOil Collector
-
41420650950 Rubber RingRubber Ring
-
42420211941 Oil Sieve CoverOil Sieve Cover
-
43420241861 Hex Flanged Screw M6 X 20Hex Flanged Screw M6 X 20
-
44420241670 Stud M10 X 190Stud M10 X 190
-
45420230150 Oil SealOil Seal
-
46420932650 Ball Bearing 6005Ball Bearing 6005
-
47293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
48293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
49420297433 Molykote G-n, 50 GMolykote G-n, 50 G
-
50293600039 Engine Oil 4 Strokes, 5w40, 12 X 1 LiterEngine Oil 4 Strokes, 5w40, 12 X 1 Liter
-
51420650700 Oil SealOil Seal
-
52420932825 Ball Bearing 6305Ball Bearing 6305
-
53420932815 Ball Bearing 6303EBall Bearing 6303E
-
54420932095 Ball Bearing 6304EBall Bearing 6304E
-
55420432120 Ball Bearing 6307Ball Bearing 6307
-
56420232280 Roller BearingRoller Bearing
-
57420650422 Gasket (Crankcase)Gasket (Crankcase)
-
58420256602 Seat Valve SleeveSeat Valve Sleeve
-
59420256630 Piston ValvePiston Valve
-
60420938785 Compression SpringCompression Spring
-
61420250050 O-RingO-Ring
-
62420640790 Plug Screw M24 X 1.5Plug Screw M24 X 1.5
-
63420229470 Cylindrical Pin M10 X 65Cylindrical Pin M10 X 65
-
64420229170 Groove Pin M4 X 20Groove Pin M4 X 20
-
65420256720 Oil Separating FoamOil Separating Foam
-
66420650630 Solenoid Valve GasketSolenoid Valve Gasket
-
67420256540 Solenoid ValveSolenoid Valve
-
68420650635 GasketGasket
-
69420241670 Stud M10 X 190Stud M10 X 190
-
70420296375 Solenoid Valve Gasket SetSolenoid Valve Gasket Set
-
71413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
72293550030 Grease, Super LubeGrease, Super Lube
