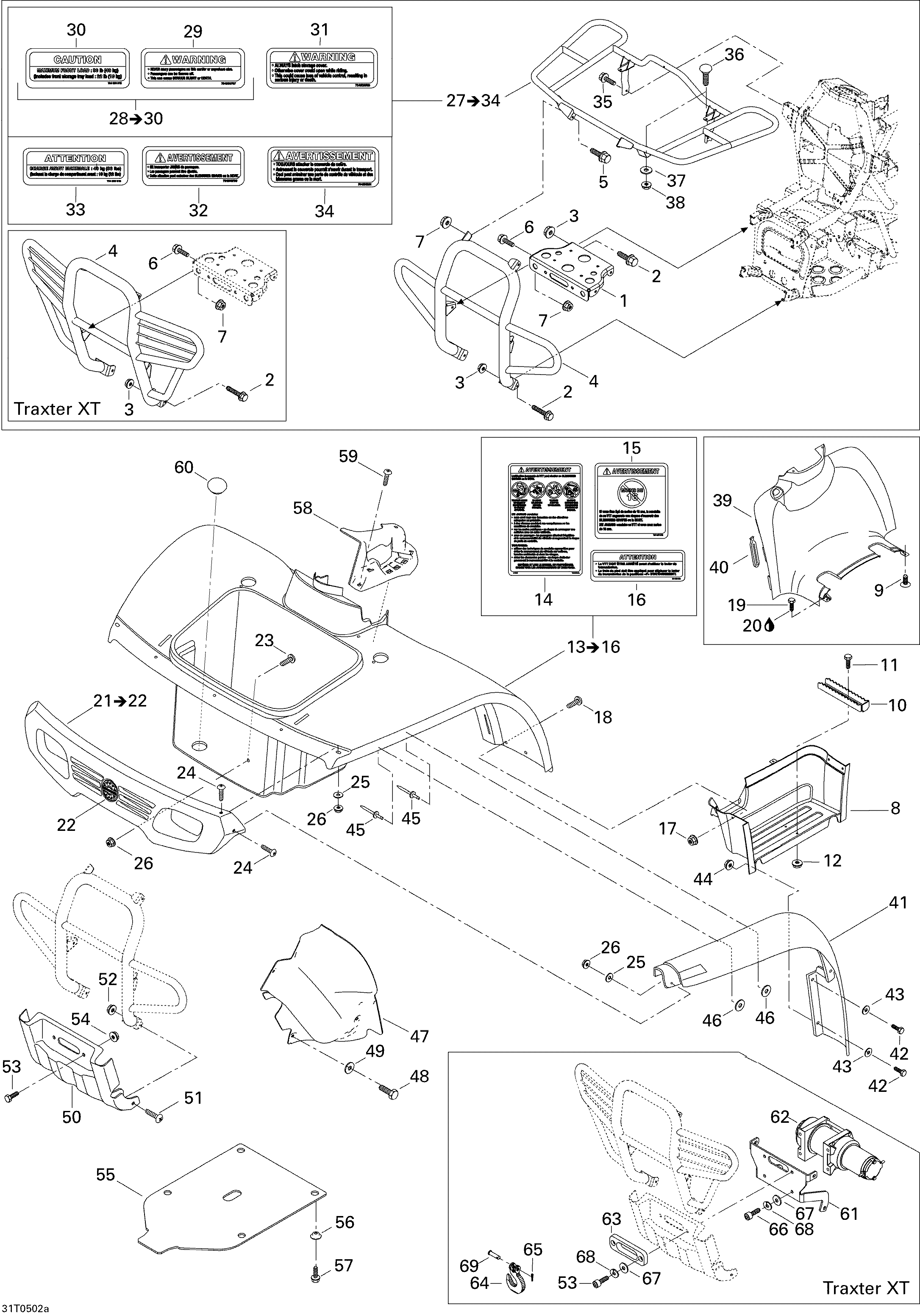

09- Body And Accessories (Front) для BRP Traxter 5 Speed - 2005
-
№АртикулНазвание
-
1705200196 Winch Latch (Black)Winch Latch (Black)
-
2207682544 Hex Flanged Screw M8 X 25Hex Flanged Screw M8 X 25
-
3233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
4705000585 Front Bumper (Black). Traxter 5 Speed XTFront Bumper (Black). Traxter 5 Speed XT
-
4705000591 Front Bumper (Black). Traxter 5 Speed STDFront Bumper (Black). Traxter 5 Speed STD
-
5207682044 Hex Flanged Screw M8 X 20Hex Flanged Screw M8 X 20
-
6207682544 Hex Flanged Screw M8 X 25Hex Flanged Screw M8 X 25
-
7233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
8705000017 RH. Footboard (Black)RH. Footboard (Black)
-
8705000018 LH. Footboard (Black)LH. Footboard (Black)
-
9293730011 Dart (Black)Dart (Black)
-
10705001083 Footrest (Black)Footrest (Black)
-
11207662584 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
12233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
13703500393 Front Fender (green). Green, Includes 13 To 16Front Fender (green). Green, Includes 13 To 16
-
13703500398 Front Fender (yellow). Yellow, Includes 13 To 16Front Fender (yellow). Yellow, Includes 13 To 16
-
13703500395 Front Fender (red). Red, Includes 13 To 16Front Fender (red). Red, Includes 13 To 16
-
14704900001 Warning Label (death And Injuries). English versionWarning Label (death And Injuries). English version
-
14704900002 Warning Label (death And Injuries). French versionWarning Label (death And Injuries). French version
-
15704900011 Warning Label (under 16 Years Old). English versionWarning Label (under 16 Years Old). English version
-
15704900012 Warning Label (under 16 Years Old). French versionWarning Label (under 16 Years Old). French version
-
16704900007 Warning Label (transmission Selector). English versionWarning Label (transmission Selector). English version
-
16704900008 Warning Label (transmission Selector). French versionWarning Label (transmission Selector). French version
-
17233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
18211000123 Truss Phillips Screw M6 X 20Truss Phillips Screw M6 X 20
-
19207661244 Hex Flanged Screw M6 X 12Hex Flanged Screw M6 X 12
-
20293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
21703500011 Front Fascia(black). Includes 21 To 22Front Fascia(black). Includes 21 To 22
-
22704900130 Bombardier Logo 68 mmBombardier Logo 68 mm
-
23211000123 Truss Phillips Screw M6 X 20Truss Phillips Screw M6 X 20
-
24211000123 Truss Phillips Screw M6 X 20Truss Phillips Screw M6 X 20
-
25224060201 Flat WasherFlat Washer
-
26233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
27703500452 Luggage Rack Kit. Includes 27 To 34Luggage Rack Kit. Includes 27 To 34
-
28704900799 Warning Label Ass'y. English Version, Includes 28 To 30Warning Label Ass'y. English Version, Includes 28 To 30
-
29704900797 Warning Label (death And Injuries). English VersionWarning Label (death And Injuries). English Version
-
30704900015 Maximum Load Label. English VersionMaximum Load Label. English Version
-
31704900800 Warning Label (cover Latch). English VersionWarning Label (cover Latch). English Version
-
32704900798 Warning Label (death And Injuries). French VersionWarning Label (death And Injuries). French Version
-
33704900016 Caution Decal, Maximum Load. French VersionCaution Decal, Maximum Load. French Version
-
34704900801 Warning Label (cover Latch). French VersionWarning Label (cover Latch). French Version
-
35207582044 Hex Flanged Screw M8 X 20 (scotch Grip)Hex Flanged Screw M8 X 20 (scotch Grip)
-
36250000035 Truss Phillips Screw M6 X 25Truss Phillips Screw M6 X 25
-
37224061121 Flat WasherFlat Washer
-
38233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
39705000010 Tank CoverTank Cover
-
40570023800 Windshield LatchWindshield Latch
-
41705001577 Front Mudguard R.H.Front Mudguard R.H.
-
41705001576 Front Mudguard L.H.Front Mudguard L.H.
-
42207162044 Hex Cap Screw M6 X 20Hex Cap Screw M6 X 20
-
43224060201 Flat WasherFlat Washer
-
44233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
45293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
46234082410 Flat Washer 8 mmFlat Washer 8 mm
-
47705000134 RH Tank ProtectorRH Tank Protector
-
47705000133 LH Tank ProtectorLH Tank Protector
-
48210261680 Hex Flanged Forming Screw M6 X 16Hex Flanged Forming Screw M6 X 16
-
49224061201 Flat WasherFlat Washer
-
50705000135 Front Protection Plate (black)Front Protection Plate (black)
-
51211000123 Truss Phillips Screw M6 X 20Truss Phillips Screw M6 X 20
-
52233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
53207602544 Hex Flanged Screw M10 X 25. Traxter 5 Speed STDHex Flanged Screw M10 X 25. Traxter 5 Speed STD
-
53250000042 Socket Screw 5/16-18 X 1 1/2''. Traxter 5 Speed XTSocket Screw 5/16-18 X 1 1/2''. Traxter 5 Speed XT
-
54233201414 Hex Flanged Elastic Nut M10. Traxter 5 Speed STDHex Flanged Elastic Nut M10. Traxter 5 Speed STD
-
55705200535 Skid PlateSkid Plate
-
56705200533 CupCup
-
57207581646 Flanged Screw M8 X 16 (scotch Grip)Flanged Screw M8 X 16 (scotch Grip)
-
58705000081 Lever IndicatorLever Indicator
-
59414745900 Tuflock Phillips Plastic ScrewTuflock Phillips Plastic Screw
-
60570041600 Rubber CoverRubber Cover
-
61705000994 Mounting Plate. Traxter 5 Speed XTMounting Plate. Traxter 5 Speed XT
-
62705000839 Winch. Traxter 5 Speed XTWinch. Traxter 5 Speed XT
-
63705000194 Cable Guide. Traxter 5 Speed XTCable Guide. Traxter 5 Speed XT
-
64705000618 Hook. Traxter 5 Speed XTHook. Traxter 5 Speed XT
-
65250400022 Cotter Pin. Traxter 5 Speed XTCotter Pin. Traxter 5 Speed XT
-
66250000041 Socket Screw 5/16-18 X 1''. Traxter 5 Speed XTSocket Screw 5/16-18 X 1''. Traxter 5 Speed XT
-
67234081410 Flat Washer 8 mm. Traxter 5 Speed XTFlat Washer 8 mm. Traxter 5 Speed XT
-
68234181401 Lock Washer 8 mm. Traxter 5 Speed XTLock Washer 8 mm. Traxter 5 Speed XT
-
69250400021 Clevis Pin. Traxter 5 Speed XTClevis Pin. Traxter 5 Speed XT
