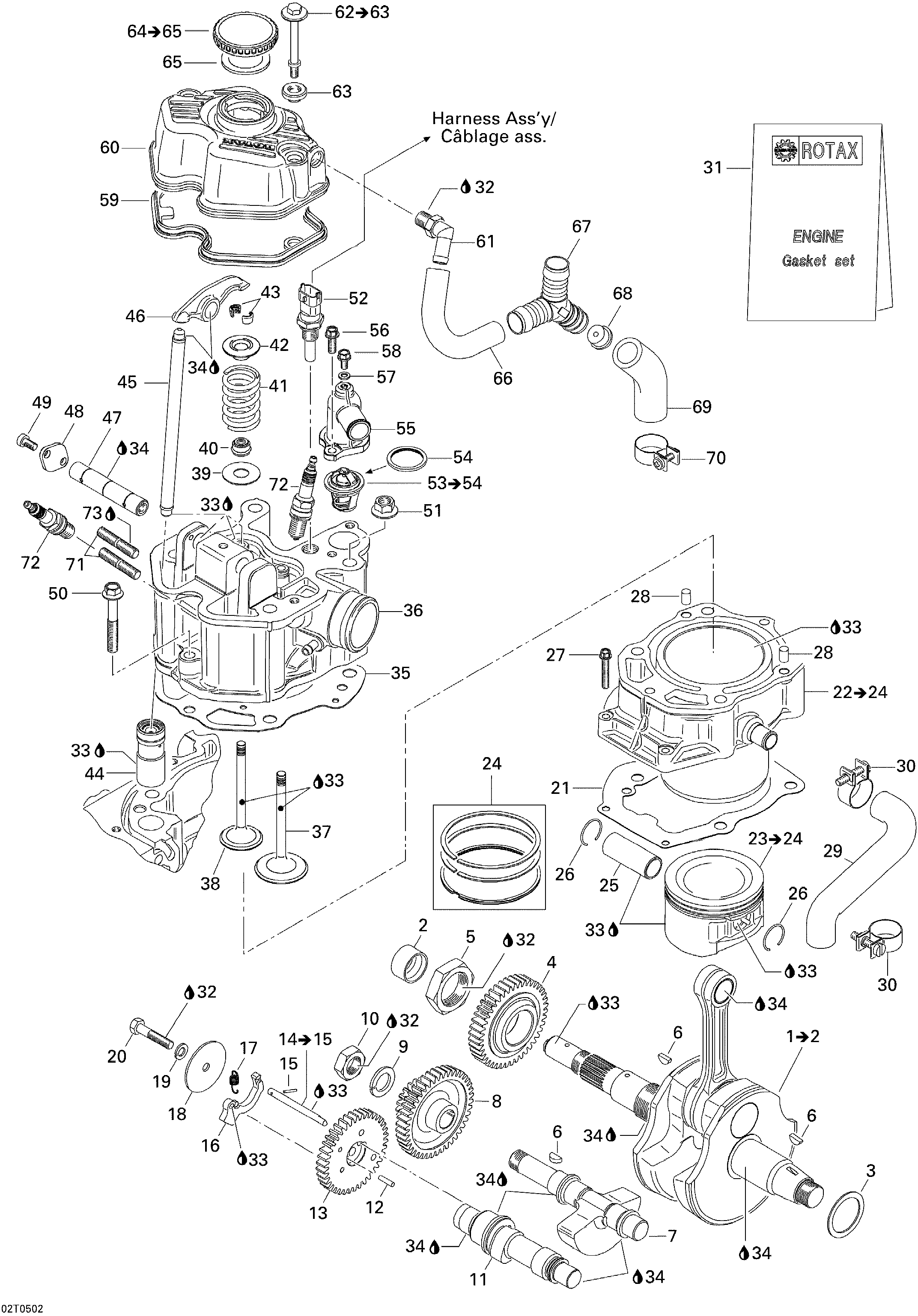

01- Crankshaft, Piston And Cylinder для BRP Traxter 5 Speed - 2005
-
№АртикулНазвание
-
1420295893 Crankshaft Ass'YCrankshaft Ass'Y
-
2420247070 SpacerSpacer
-
3420427505 Adjusting Washer 35 X 45 X 1.3Adjusting Washer 35 X 45 X 1.3
-
3420427506 Adjusting Washer 35 X 45 X 1.5Adjusting Washer 35 X 45 X 1.5
-
3420427507 Adjusting Washer 35 X 45 X 1.8Adjusting Washer 35 X 45 X 1.8
-
4420635011 Mating Gear (42 Teeth)Mating Gear (42 Teeth)
-
5420842605 Hex Nut M34Hex Nut M34
-
6420246570 Woodruff KeyWoodruff Key
-
7420220470 Balance ShaftBalance Shaft
-
8420635100 Balancing Gear DoubleBalancing Gear Double
-
9420945757 Lock Washer 18 mmLock Washer 18 mm
-
10420942220 Hex Nut M18Hex Nut M18
-
11420220462 Cam ShaftCam Shaft
-
12420232420 Needle PinNeedle Pin
-
13420634956 Cam Shaft Gear (38 Teeth)Cam Shaft Gear (38 Teeth)
-
14420220615 Deko Shaft Ass'Y. Includes 14 to 15Deko Shaft Ass'Y. Includes 14 to 15
-
16420231050 Centrifugal WeightCentrifugal Weight
-
17420239570 Tension SpringTension Spring
-
18420244260 RondelleRondelle
-
19420945752 Lock Washer 8 mmLock Washer 8 mm
-
20207084044 Hex Screw M8 X 40Hex Screw M8 X 40
-
21420650430 Cylinder GasketCylinder Gasket
-
22420613177 Cylinder/Piston. Includes 22 to 24Cylinder/Piston. Includes 22 to 24
-
23420296110 Piston 89 mm And Ring Set. Includes 23 to 24Piston 89 mm And Ring Set. Includes 23 to 24
-
24420296114 Piston Ring SetPiston Ring Set
-
25420216225 Piston PinPiston Pin
-
26420245431 Circlip 22 mmCirclip 22 mm
-
27420941126 Hex Flanged Screw M6 X 35Hex Flanged Screw M6 X 35
-
28420632010 Pin M8 X 12Pin M8 X 12
-
29420222285 Water Cooling HoseWater Cooling Hose
-
30420951760 ClampClamp
-
31420296372 Engine Gasket SetEngine Gasket Set
-
32293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
33293600039 Engine Oil 4 Strokes, 5w40, 12 X 1 LiterEngine Oil 4 Strokes, 5w40, 12 X 1 Liter
-
34420899271 Petamo Grease, Ghy133n, 400 GPetamo Grease, Ghy133n, 400 G
-
35420650446 Cylinder Head GasketCylinder Head Gasket
-
36420613375 Cylinder HeadCylinder Head
-
37420254050 Inlet Valve 42 mmInlet Valve 42 mm
-
38420254062 Inlet Valve 34 mmInlet Valve 34 mm
-
39420227980 Thrust WasherThrust Washer
-
40420230810 Valve SealValve Seal
-
41420239500 Valve SpringValve Spring
-
42420254100 Valve Spring RetainerValve Spring Retainer
-
43420253090 Valve CotterValve Cotter
-
44420854094 Hydraulic Valve TappetHydraulic Valve Tappet
-
45420854575 Push RodPush Rod
-
46420254083 Rocker ArmRocker Arm
-
47420254110 Rocker Arm ShaftRocker Arm Shaft
-
48420244250 Holding StripHolding Strip
-
49420241681 Socket Head Screw M6 X 10Socket Head Screw M6 X 10
-
50420240326 Hex Flanged Screw M8 X 53.5Hex Flanged Screw M8 X 53.5
-
51233101414 Hex Flanged Nut M10Hex Flanged Nut M10
-
52420222425 Temperature SensorTemperature Sensor
-
53420222495 Thermostat. Includes 53 to 54Thermostat. Includes 53 to 54
-
54420650300 Thermostat GasketThermostat Gasket
-
55420222560 Thermostat CoverThermostat Cover
-
56420241751 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
57404146600 Seal WasherSeal Washer
-
58420241751 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
59420650450 Gasket (Valve Cover)Gasket (Valve Cover)
-
60420211835 Valve CoverValve Cover
-
61420922245 Angular TubeAngular Tube
-
62420240906 Hex Screw M6 X 47.9. Includes 62 to 63Hex Screw M6 X 47.9. Includes 62 to 63
-
63420260050 Rubber BushingRubber Bushing
-
64420974644 Bayonet Filler Cap. Includes 64 to 65Bayonet Filler Cap. Includes 64 to 65
-
66420222610 Formed HoseFormed Hose
-
67420874380 Y-FittingY-Fitting
-
68420222590 FittingFitting
-
69420222600 Formed HoseFormed Hose
-
70420951760 ClampClamp
-
71420940366 Stud M8 X 23Stud M8 X 23
-
72707000008 Spark Plug (Ngk/Dr8Ea)Spark Plug (Ngk/Dr8Ea)
-
73413711400 Loctite 648, 10 mlLoctite 648, 10 ml
