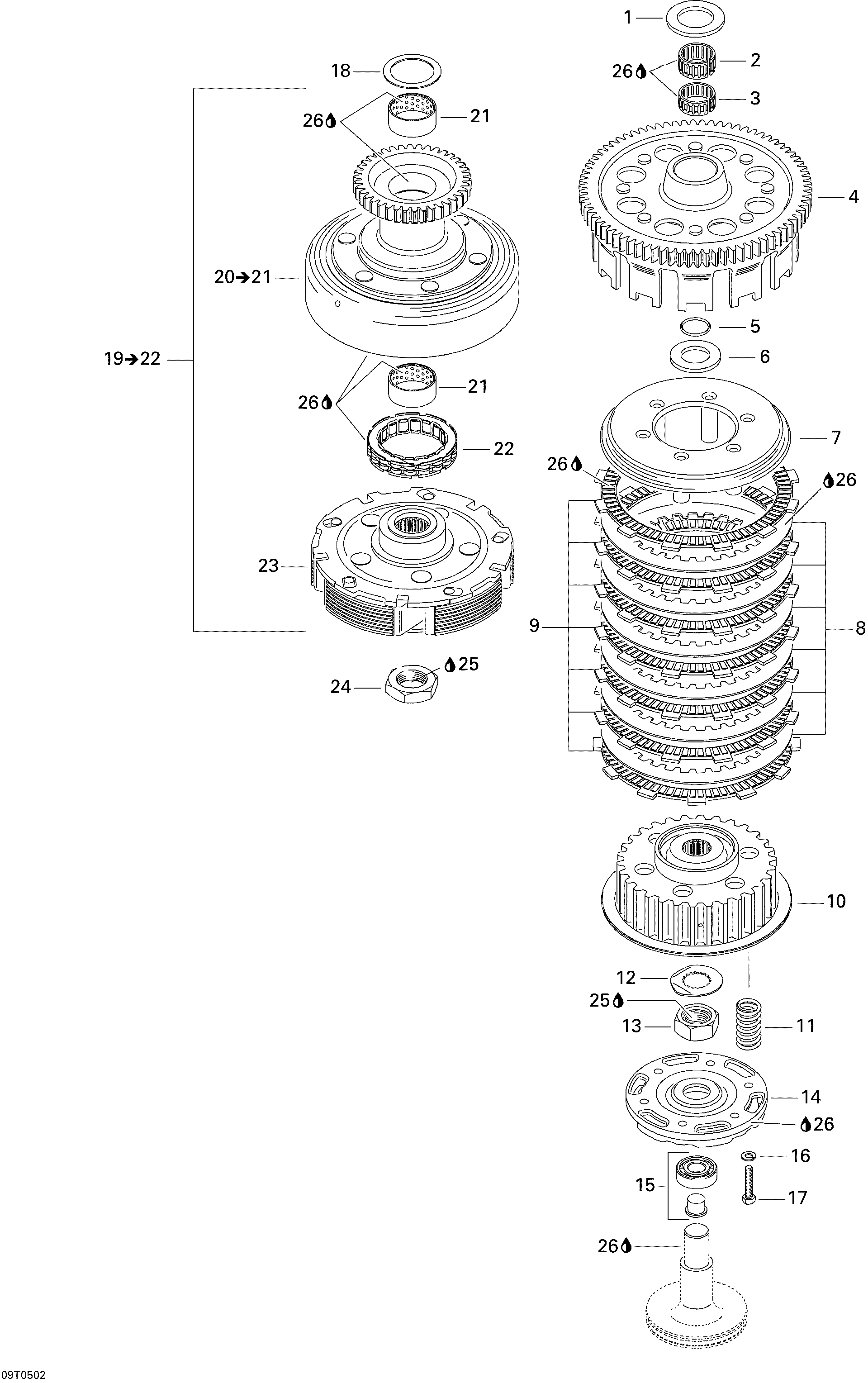

05- Clutch для BRP Traxter 5 Speed - 2005
-
№АртикулНазвание
-
1420227390 Thrust WasherThrust Washer
-
2420632070 Needle BearingNeedle Bearing
-
3420232655 Needle CageNeedle Cage
-
4420659203 Clutch DrumClutch Drum
-
5293300018 O-RingO-Ring
-
6420227600 Thrust WasherThrust Washer
-
7420659230 Inner PlateInner Plate
-
8420259915 Plate 1.5 mmPlate 1.5 mm
-
9420259907 Lamella 3 mmLamella 3 mm
-
10420259876 Clutch HubClutch Hub
-
11420239741 Clutch SpringClutch Spring
-
12420245320 Tab WasherTab Washer
-
13420242605 Hex Nut M18Hex Nut M18
-
14420259131 Retaining PlateRetaining Plate
-
15420259143 Hub Thrust With Ball BearingHub Thrust With Ball Bearing
-
16420945750 Lock WasherLock Washer
-
17420241770 Hex Screw M5 X 25Hex Screw M5 X 25
-
18420427130 Thrust WasherThrust Washer
-
19420296093 Clutch Ass'Y. Includes 19 to 23Clutch Ass'Y. Includes 19 to 23
-
20420659177 Clutch. Includes 20 to 21Clutch. Includes 20 to 21
-
21420233765 Clutch BushingClutch Bushing
-
22420659240 Sprag ClutchSprag Clutch
-
23420659180 Clutch HubClutch Hub
-
24420842234 Hex Nut M22Hex Nut M22
-
25293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
26293600039 Engine Oil 4 Strokes, 5w40, 12 X 1 LiterEngine Oil 4 Strokes, 5w40, 12 X 1 Liter
