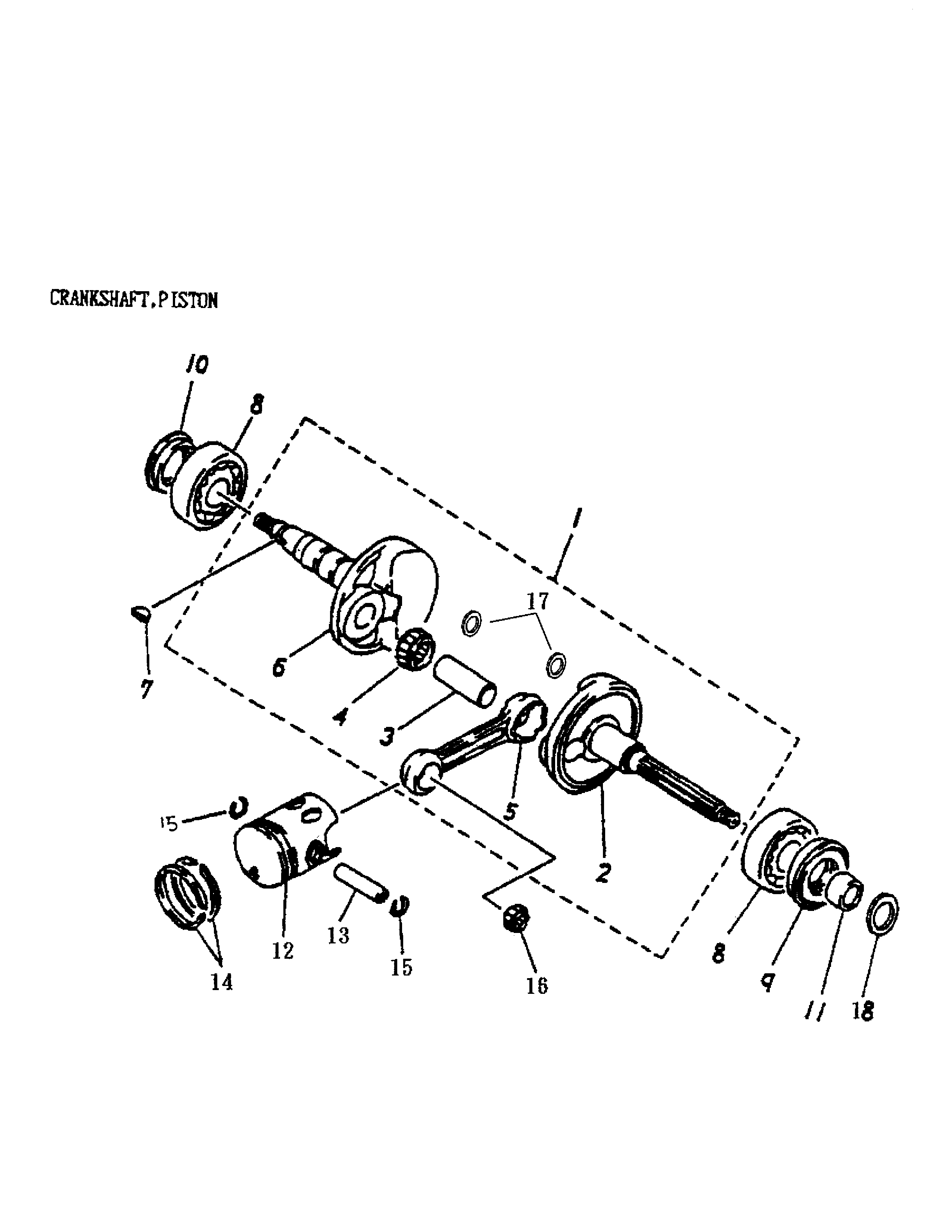

01- Crankshaft And Pistons для BRP Mini DS 90 2-strokes - 2006

№

Артикул

Название
1

A13000146000 Crankshaft Ass'y

Crankshaft Ass'y

25 650 ₽
2

A13321146000 Left Crank

Left Crank

7 710 ₽
3

A13381117000 Crank Pin

Crank Pin

2 330 ₽
4

A96200182412 Needle Bearing (18 x 24 x 12)

Needle Bearing (18 x 24 x 12)

2 320 ₽
5

A13201117000 Crank Connecting Rod

Crank Connecting Rod

3 490 ₽
6

A13311146000 R.H. Crank

R.H. Crank

7 710 ₽
7

A90471104000 Semicycle Key (3 x 13)

Semicycle Key (3 x 13)

1 150 ₽
8

A9610062040 Radial Ball Bearing (6204C3)

Radial Ball Bearing (6204C3)

1 980 ₽
9

A9650020428 Oil Seal (20 x 42/43 x 8/9)

Oil Seal (20 x 42/43 x 8/9)

830 ₽
10

A9650020306 Oil Seal (20x 30/33 x 6)

Oil Seal (20x 30/33 x 6)

880 ₽
11

A13316117000 Left Crank Collar (16 x 21 x 12)

Left Crank Collar (16 x 21 x 12)

1 150 ₽
12

A13100146000 Piston

Piston

3 730 ₽
13

A13111117000 Piston Pin (9 x 12 x 40)

Piston Pin (9 x 12 x 40)

1 660 ₽
14

A13011146000 Piston Ring Set

Piston Ring Set

4 600 ₽
15

A13115101000 Piston Pin Clip (1.0 x 14)

Piston Pin Clip (1.0 x 14)

660 ₽
16

A96200121516 Needle Bearing (12 x 15 x 16.6)

Needle Bearing (12 x 15 x 16.6)

1 980 ₽
17

A941011830010 Plain Washer (18 x 30 x 1)

Plain Washer (18 x 30 x 1)

950 ₽
18

A941011624005 Plain Washer (16.5 x 24 x 0.5)

Plain Washer (16.5 x 24 x 0.5)

320 ₽
