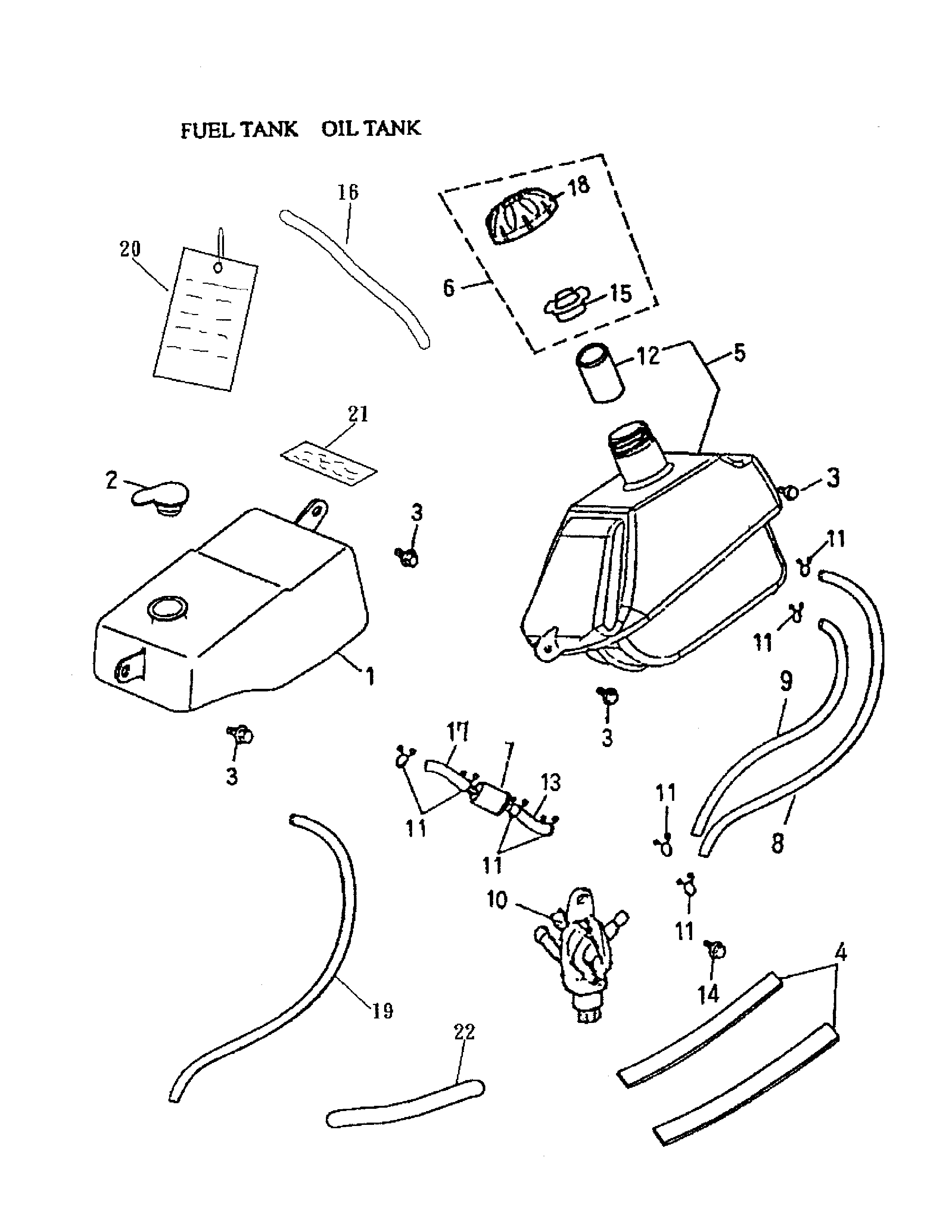

02- Fuel Tank, Oil Tank для BRP Mini DS 90 2-strokes - 2006
-
№АртикулНазвание
-
1A55100145000 Oil TankOil Tank
-
2A55105145000 Oil Tank CapOil Tank Cap
-
3A920000601410 Hex. Bolt M6 x 14Hex. Bolt M6 x 14
-
4A1750514500A Sponge PadSponge Pad
-
5A17500166000 Fuel Tank CompFuel Tank Comp
-
6A1762014500A Fuel Tank CapFuel Tank Cap
-
7A16952145000 Petrol FilterPetrol Filter
-
8A944000408300 Fuel TubeFuel Tube
-
9A944000408280 Fuel TubeFuel Tube
-
10A16950145000 Fuel CupFuel Cup
-
11A9451008000 ClipClip
-
12A17633145000 Fuel Tank TubeFuel Tank Tube
-
13A944000408160 Oil TubeOil Tube
-
14A960000601210G Hex. Washer Face Bolt M6 x 12Hex. Washer Face Bolt M6 x 12
-
15A17631145000 Fuel Tank Cap GasketFuel Tank Cap Gasket
-
16A944000408355 Breather HoseBreather Hose
-
17A944000408075 TubeTube
-
18A1762114500A Fuel Tank Cap BodyFuel Tank Cap Body
-
19A944021617190 Tube CoverTube Cover
-
20704900301 Warning Tag (Mini DS)Warning Tag (Mini DS)
-
21A87723116000 Warning Decal (Battery)Warning Decal (Battery)
-
22A944020911090 Tube CoverTube Cover
