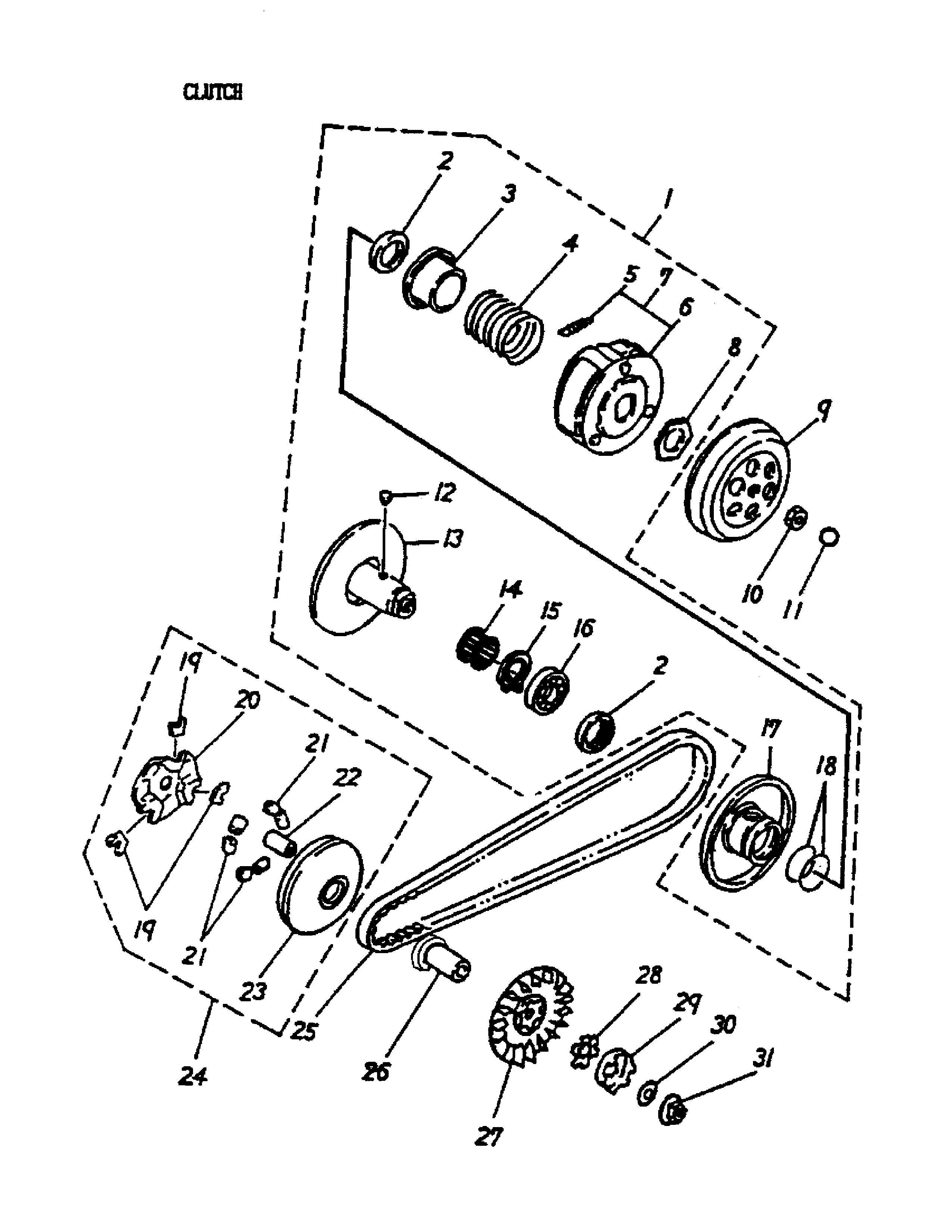

05- Clutch для BRP Mini DS 90 2-strokes - 2006
-
№АртикулНазвание
-
1A22000117000 Drive Face Ass'yDrive Face Ass'y
-
2A9650033394 Oil Seal (33 x 39 x 4)Oil Seal (33 x 39 x 4)
-
3A23237116000 Secondary Spring SeatSecondary Spring Seat
-
4A23233117000 Compression SpringCompression Spring
-
5A22401116000 Clutch Weight SpringClutch Weight Spring
-
6A22350116000 Clutch CarrierClutch Carrier
-
7A22535116000 Clutch Weight SetClutch Weight Set
-
8A90202116000 Nut M28Nut M28
-
9A22100116000 Clutch Cover CompClutch Cover Comp
-
10A9400110000 Hex. Nut M10Hex. Nut M10
-
11A91313104000 Oil RingOil Ring
-
12A23225116000 Guide PinGuide Pin
-
13A23200116000 Secondary Fix Slot WheelSecondary Fix Slot Wheel
-
14A96200172518 Needle Bearing (HKS-17 x 25 x 18)Needle Bearing (HKS-17 x 25 x 18)
-
15A945122400R Internal CirclipInternal Circlip
-
16A961006901U Radial Ball Bearing (6901LU)Radial Ball Bearing (6901LU)
-
17A23220116000 Secondary Sliding Slot WheelSecondary Sliding Slot Wheel
-
18A91336104000 Oil RingOil Ring
-
19A22132104000 Cam Plate SliderCam Plate Slider
-
20A22131117000 Cam PlateCam Plate
-
21A22121117000 Weight RollerWeight Roller
-
22A96401212622 BushingBushing
-
23A22110117000 Primary Sliding Slot WheelPrimary Sliding Slot Wheel
-
24A22103117000 Sliding Drive Face Ass'y (A)Sliding Drive Face Ass'y (A)
-
25A23100117000 V-BeltV-Belt
-
26A964011621375 BushingBushing
-
27A22102117000 Primary Fix SheavePrimary Fix Sheave
-
28A22150104000 Claw WasherClaw Washer
-
29A22140104000 Oneway ClutchOneway Clutch
-
30A22145104000 Cone Spring WasherCone Spring Washer
-
31A9405010000 Hex. Flanged Nut With Serration M10Hex. Flanged Nut With Serration M10
