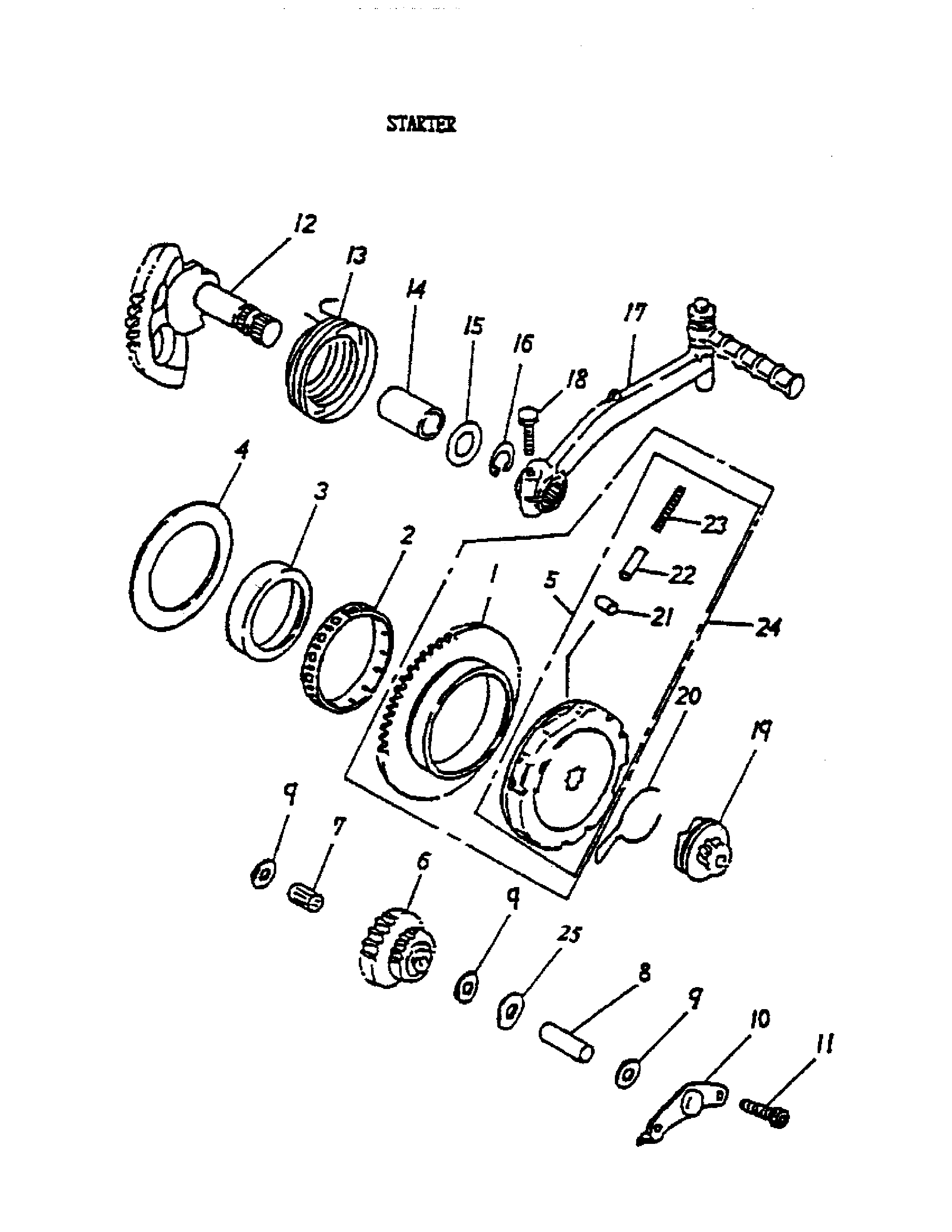

04- Starter для BRP Mini DS 90 2-strokes - 2006

№

Артикул

Название
1

A28220116000 Starter Wheel

Starter Wheel

7 250 ₽
2

A96200555912 Needle Bearing (55 x 59 x 12.5)

Needle Bearing (55 x 59 x 12.5)

3 970 ₽
3

A96202116000 Boss

Boss

1 980 ₽
4

A941015676006 Plain Washer (56 x 76 x 0.6)

Plain Washer (56 x 76 x 0.6)

920 ₽
5

A28410117000 Electric Starter Clutch Set

Electric Starter Clutch Set

0 ₽
6

A23422116000 Idler Gear

Idler Gear

2 970 ₽
7

A96200081210 Needle Bearing (HK8 x 12 x 10)

Needle Bearing (HK8 x 12 x 10)

1 660 ₽
8

A96300080320 Shaft Idler

Shaft Idler

990 ₽
9

A941010818008 Plain Washer (8.2 x 18 x 0.8)

Plain Washer (8.2 x 18 x 0.8)

310 ₽
10

A11206116000 Idler Gear Plate

Idler Gear Plate

1 490 ₽
11

A9100006010 Hex. Socket Bolt M6 x 10

Hex. Socket Bolt M6 x 10

310 ₽
12

A28250116000 Starting Shaft Ass'y

Starting Shaft Ass'y

0 ₽
13

A28281110000 Starting Shaft Reset Spring

Starting Shaft Reset Spring

1 760 ₽
14

A96401152030 Bushing

Bushing

660 ₽
15

A941011528010 Plain Washer (15.2 x 28 x 1)

Plain Washer (15.2 x 28 x 1)

660 ₽
16

A945111500S External Circlip

External Circlip

660 ₽
17

A28300145000 Kick Crank Ass'y

Kick Crank Ass'y

4 800 ₽
18

A960000602510 Hex. Washer Face Bolt M6 x 25

Hex. Washer Face Bolt M6 x 25

330 ₽
19

A28230104000 Kick Pinion Ass'y

Kick Pinion Ass'y

5 790 ₽
20

A28223104000 Kick Pinion Spring Clip

Kick Pinion Spring Clip

660 ₽
21

A28411116001 Clutch Roller

Clutch Roller

990 ₽
22

A28412116000 Clutch Guider

Clutch Guider

950 ₽
23

A28413116001 Clutch Spring

Clutch Spring

310 ₽
24

A28400117001 Electric Starter Clutch Ass'y

Electric Starter Clutch Ass'y

0 ₽
25

A92022851618 Wave Washer (8.5 x 16 x 1.8)

Wave Washer (8.5 x 16 x 1.8)

310 ₽
