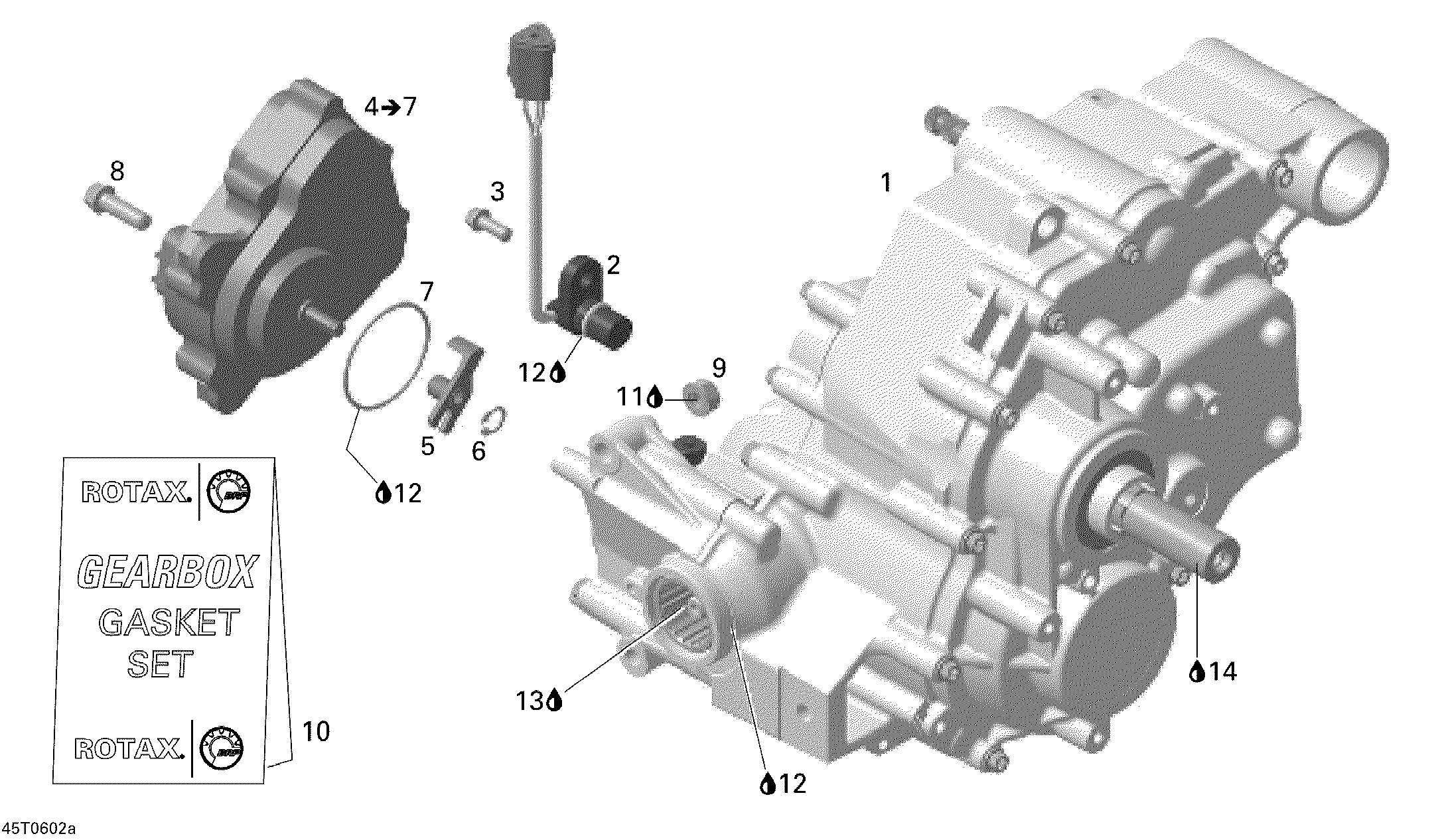

01- Gear Box 1 для BRP Outlander MAX 800 STD 4 X 4 - 2006
-
№АртикулНазвание
-
1420684780 Gear BoxGear Box
-
2420265622 Speed SensorSpeed Sensor
-
3420440167 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
4420891087 Actuator. Includes 4 to 7Actuator. Includes 4 to 7
-
5420257760 Shifting ForkShifting Fork
-
6420245150 CirclipCirclip
-
7293300117 O-RingO-Ring
-
8420440372 Flanged Torx Screw M8 X 25Flanged Torx Screw M8 X 25
-
9420842616 Hex. Nut M8Hex. Nut M8
-
10420684135 Gasket Set, GearboxGasket Set, Gearbox
-
11293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
12293550030 Grease, Super LubeGrease, Super Lube
-
13293600039 Engine Oil 4 Strokes, 5w40, 12 X 1 LiterEngine Oil 4 Strokes, 5w40, 12 X 1 Liter
-
14293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
