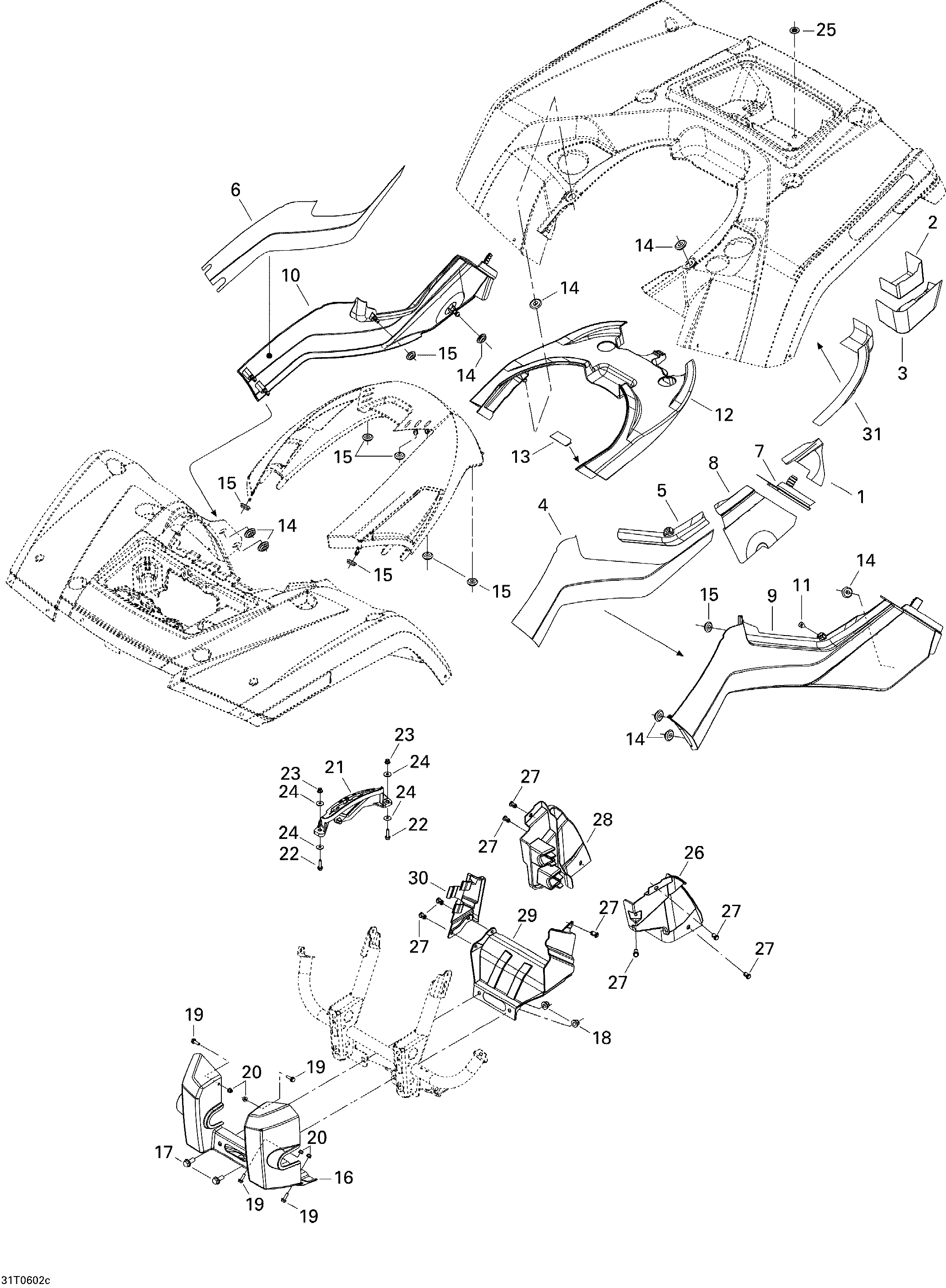

09- Body And Accessories 3 для BRP Outlander MAX 800 STD 4 X 4 - 2006
-
№АртикулНазвание
-
1705002014 Reflective SheetReflective Sheet
-
2705002191 Reflective SheetReflective Sheet
-
3705002189 Reflective SheetReflective Sheet
-
4705001990 LH Reflective SheetLH Reflective Sheet
-
5705001989 Reflective SheetReflective Sheet
-
6705002126 RH Reflective SheetRH Reflective Sheet
-
7705002183 LH Reflective SheetLH Reflective Sheet
-
8705002184 LH Reflective SheetLH Reflective Sheet
-
9705001942 L.h. Lateral Panel, Red. Viper Red B-176L.h. Lateral Panel, Red. Viper Red B-176
-
9705002115 L.h. Lateral Panel, Yellow. Yellow B-190L.h. Lateral Panel, Yellow. Yellow B-190
-
9705002116 L.h. Lateral Panel, Green. Laurentian Green B-241L.h. Lateral Panel, Green. Laurentian Green B-241
-
10705001943 R.h. Lateral Panel, Red. Viper Red B-176R.h. Lateral Panel, Red. Viper Red B-176
-
10705002117 R.h. Lateral Panel, Yellow. Yellow B-190R.h. Lateral Panel, Yellow. Yellow B-190
-
10705002118 R.h. Lateral Panel, Green. Laurentian Green B-241R.h. Lateral Panel, Green. Laurentian Green B-241
-
11293830005 Rubber Plug, BlackRubber Plug, Black
-
12705001947 Storage Tray, Red. Viper Red B-176Storage Tray, Red. Viper Red B-176
-
12705002119 Storage Tray, Yellow. Yellow B-190Storage Tray, Yellow. Yellow B-190
-
12705002120 Storage Tray, Green. Laurentian Green B-241Storage Tray, Green. Laurentian Green B-241
-
13705002185 Reflective SheetReflective Sheet
-
14705005156 Oblong WasherOblong Washer
-
15705002149 GrommetGrommet
-
16705001530 Front Protection PlateFront Protection Plate
-
17207602544 Hex Flanged Screw M10 X 25Hex Flanged Screw M10 X 25
-
18233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
19207662044 Hex. Flanged Screw M6 x 20Hex. Flanged Screw M6 x 20
-
20233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
21705001532 Lever IndicatorLever Indicator
-
22207663044 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
23233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
24224061201 Flat WasherFlat Washer
-
25414859400 CapCap
-
26705002125 LH Inner FenderLH Inner Fender
-
27293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
28705002124 RH Inner FenderRH Inner Fender
-
29705002134 LH DeflectorLH Deflector
-
30705002135 RH DeflectorRH Deflector
-
31705002085 Reflective SheetReflective Sheet
