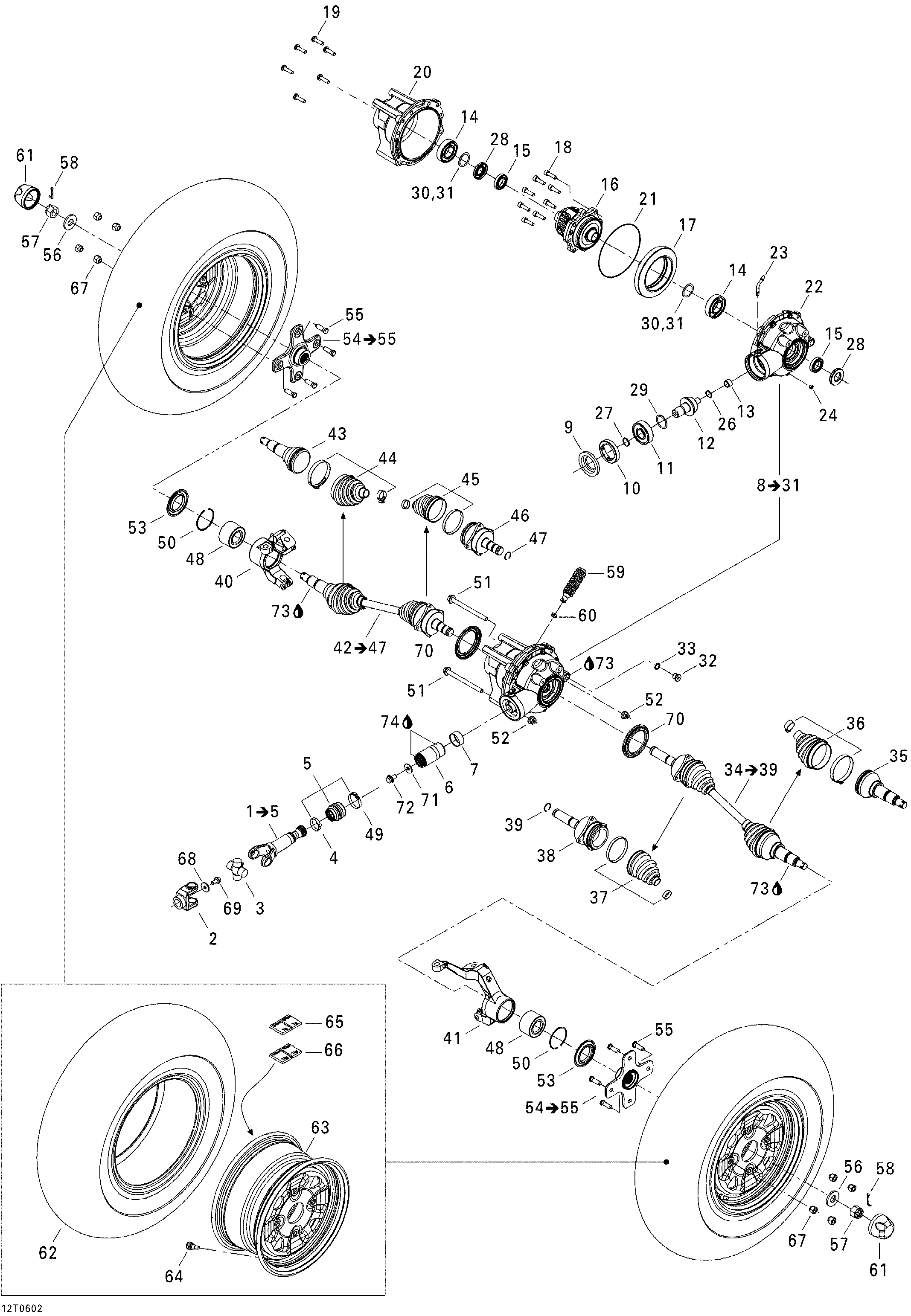

07- Drive System, Front STD для BRP Outlander MAX 800 STD 4 X 4 - 2006
-
№АртикулНазвание
-
1705400272 Front Drive Axle Ass'y. Includes 1 to 5Front Drive Axle Ass'y. Includes 1 to 5
-
2705400391 Yoke, Fixed JointYoke, Fixed Joint
-
4705400148 CollarCollar
-
5703500255 Rubber Boot KitRubber Boot Kit
-
6705400149 Coupling SleeveCoupling Sleeve
-
7705400036 Wear RingWear Ring
-
8705400425 Front Differential Ass'y. Includes 8 to 31Front Differential Ass'y. Includes 8 to 31
-
9705400027 Oil SealOil Seal
-
10705500266 NutNut
-
11705500260 Ball BearingBall Bearing
-
12705500268 Gear, 10 TeethGear, 10 Teeth
-
13705500261 Needle BearingNeedle Bearing
-
14705500259 Ball BearingBall Bearing
-
15293350044 Ball BearingBall Bearing
-
16705400320 DifferentialDifferential
-
17705400192 Gear, 36 TeethGear, 36 Teeth
-
18705400101 Ring Gear ScrewRing Gear Screw
-
19705500264 ScrewScrew
-
20705400297 Differential CapDifferential Cap
-
21705500265 SealSeal
-
22705400299 Differential CarrierDifferential Carrier
-
23705500262 Vent ValveVent Valve
-
24705500245 Drain PlugDrain Plug
-
26705500269 Retaining RingRetaining Ring
-
27705500267 O-RingO-Ring
-
28705500255 Oil SealOil Seal
-
29703500049 Pinion Shim KitPinion Shim Kit
-
30703500288 Differential Shim KitDifferential Shim Kit
-
31703500050 Differential Shim KitDifferential Shim Kit
-
32705500504 Fill Level PlugFill Level Plug
-
33705500506 Copper WasherCopper Washer
-
34705400292 RH Cv Joint. Includes 34 to 39RH Cv Joint. Includes 34 to 39
-
35705500560 Cv JointCv Joint
-
36705500562 Boot Wheel KitBoot Wheel Kit
-
37705400417 Boot Differential KitBoot Differential Kit
-
38705400294 RH Plunging JointRH Plunging Joint
-
39705400042 CirclipCirclip
-
40709400284 LH KnuckleLH Knuckle
-
41709400288 RH KnuckleRH Knuckle
-
42705400293 LH Cv Joint. Includes 42 to 47LH Cv Joint. Includes 42 to 47
-
43705500560 Cv JointCv Joint
-
44705500562 Boot Wheel KitBoot Wheel Kit
-
45705400417 Boot Differential KitBoot Differential Kit
-
46705400295 LH Plunging JointLH Plunging Joint
-
47705400042 CirclipCirclip
-
48293350040 Cone BearingCone Bearing
-
49293650138 Oetiker ClampOetiker Clamp
-
50293370019 CirclipCirclip
-
51230602546 Hex Flanged Screw M10 X 125Hex Flanged Screw M10 X 125
-
52233201416 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
53705500564 Wear SleeveWear Sleeve
-
54705500596 Wheel Hub Ass'y. Includes 54 to 55Wheel Hub Ass'y. Includes 54 to 55
-
55250300020 Wheel StudWheel Stud
-
56250200049 Spring WasherSpring Washer
-
57250100047 Hex Castellated Nut M18Hex Castellated Nut M18
-
58250400016 Cotter PinCotter Pin
-
59705400352 Rubber BellowRubber Bellow
-
60293650042 Oetiker ClampOetiker Clamp
-
61705400012 Wheel CapWheel Cap
-
62705400382 Front Tire. STDFront Tire. STD
-
63705400383 Front Rim (Grey-Silvermist)Front Rim (Grey-Silvermist)
-
63705400435 Front Rim (Black)Front Rim (Black)
-
64705400193 Rim ValveRim Valve
-
65705501430 Adhesive Weight, 1/4 OzAdhesive Weight, 1/4 Oz
-
66705500824 Adhesive Weight, 1/2 OzAdhesive Weight, 1/2 Oz
-
67250100042 Wheel NutWheel Nut
-
68211200041 WasherWasher
-
69207581646 Hex Flanged Screw M8 X 16, Scotch GripHex Flanged Screw M8 X 16, Scotch Grip
-
70705400309 Wear SleeveWear Sleeve
-
71250200014 Flat WasherFlat Washer
-
72250000060 Flanged Screw M10 X 16, Scotch GripFlanged Screw M10 X 16, Scotch Grip
-
73293600011 Pump Oil, 75w90, 12 X 6 OzPump Oil, 75w90, 12 X 6 Oz
-
74293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
