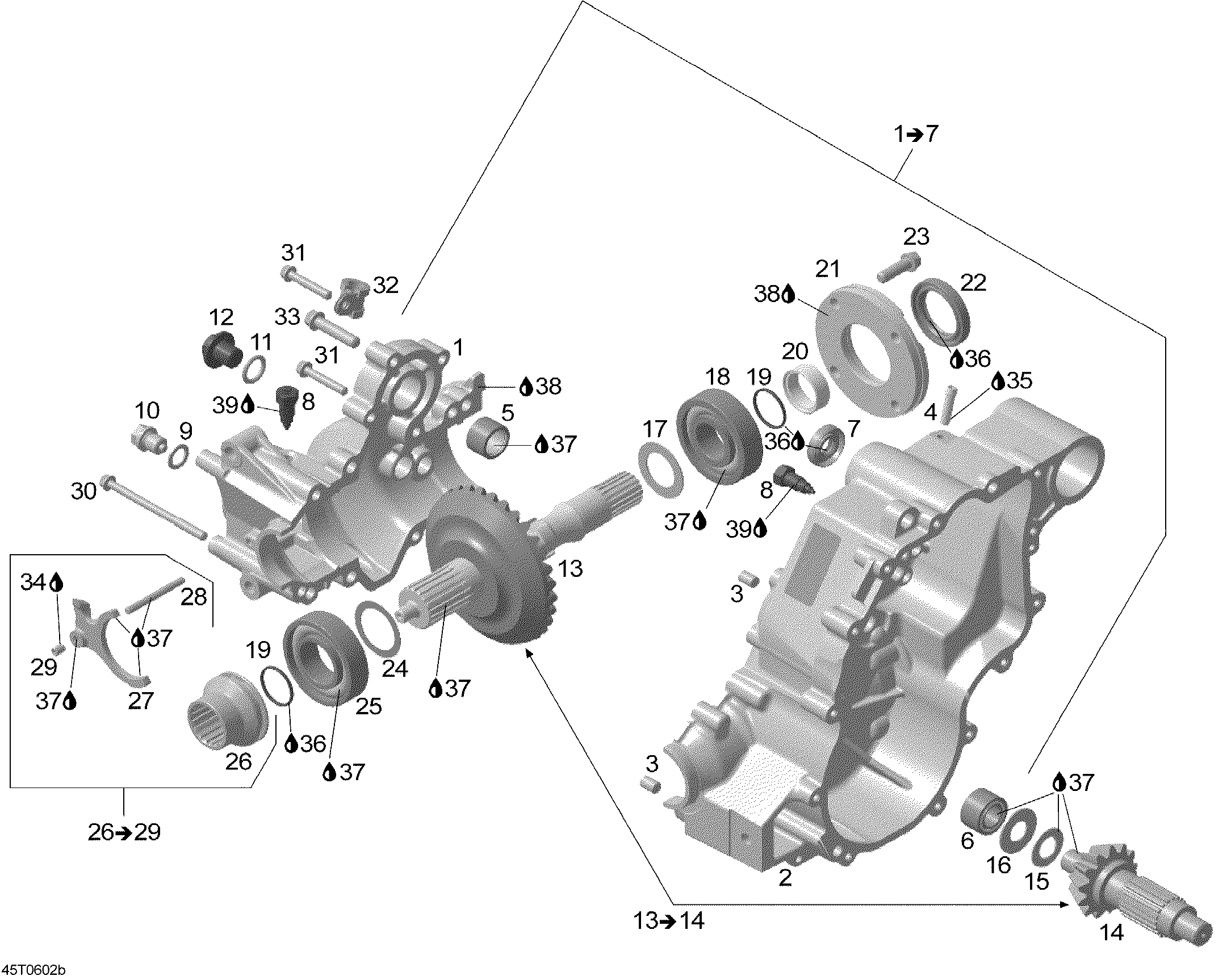

01- Gear Box 2 для BRP Outlander MAX 800 STD 4 X 4 - 2006
-
№АртикулНазвание
-
1420684775 Gear Housing Ass'y. Includes 1 to 7Gear Housing Ass'y. Includes 1 to 7
-
3420632010 Pin 8 X 12Pin 8 X 12
-
5420832240 Needle BushingNeedle Bushing
-
6420232085 Needle BushingNeedle Bushing
-
7420250450 Oil SealOil Seal
-
8420241856 Contact Screw M10Contact Screw M10
-
9420250640 GasketGasket
-
10420241786 Magnetic Drain PlugMagnetic Drain Plug
-
11420650350 O-ringO-ring
-
12420241660 Plug Screw M14 X 1.5Plug Screw M14 X 1.5
-
13420296540 Drive Ass'y. Includes 13 to 14Drive Ass'y. Includes 13 to 14
-
15420632300 Needle BearingNeedle Bearing
-
16420281306 Thrust Washer Set, Mag SideThrust Washer Set, Mag Side
-
17420281312 Thrust Washer Set, Mag SideThrust Washer Set, Mag Side
-
18420932825 Ball BearingBall Bearing
-
19420631615 O-ringO-ring
-
20420247111 Distance RingDistance Ring
-
21420611440 Bearing CoverBearing Cover
-
22420950087 Oil SealOil Seal
-
23420440372 Flanged Torx Screw M8 X 25Flanged Torx Screw M8 X 25
-
24420944584 ShimShim
-
25420232785 Ball BearingBall Bearing
-
26420257675 Shifting Sleeve Kit. Includes 26 to 29Shifting Sleeve Kit. Includes 26 to 29
-
29420841771 Set Screw M6 X 8Set Screw M6 X 8
-
30420440347 Flanged Torx Screw M6 X 85Flanged Torx Screw M6 X 85
-
31420440277 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
32420251690 Cable ClampCable Clamp
-
33420440867 Flanged Torx Screw M8 X 35Flanged Torx Screw M8 X 35
-
34293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
35413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
36293550030 Grease, Super LubeGrease, Super Lube
-
37293600039 Engine Oil 4 Strokes, 5w40, 12 X 1 LiterEngine Oil 4 Strokes, 5w40, 12 X 1 Liter
-
38293800081 Loctite 5910, 300 mlLoctite 5910, 300 ml
