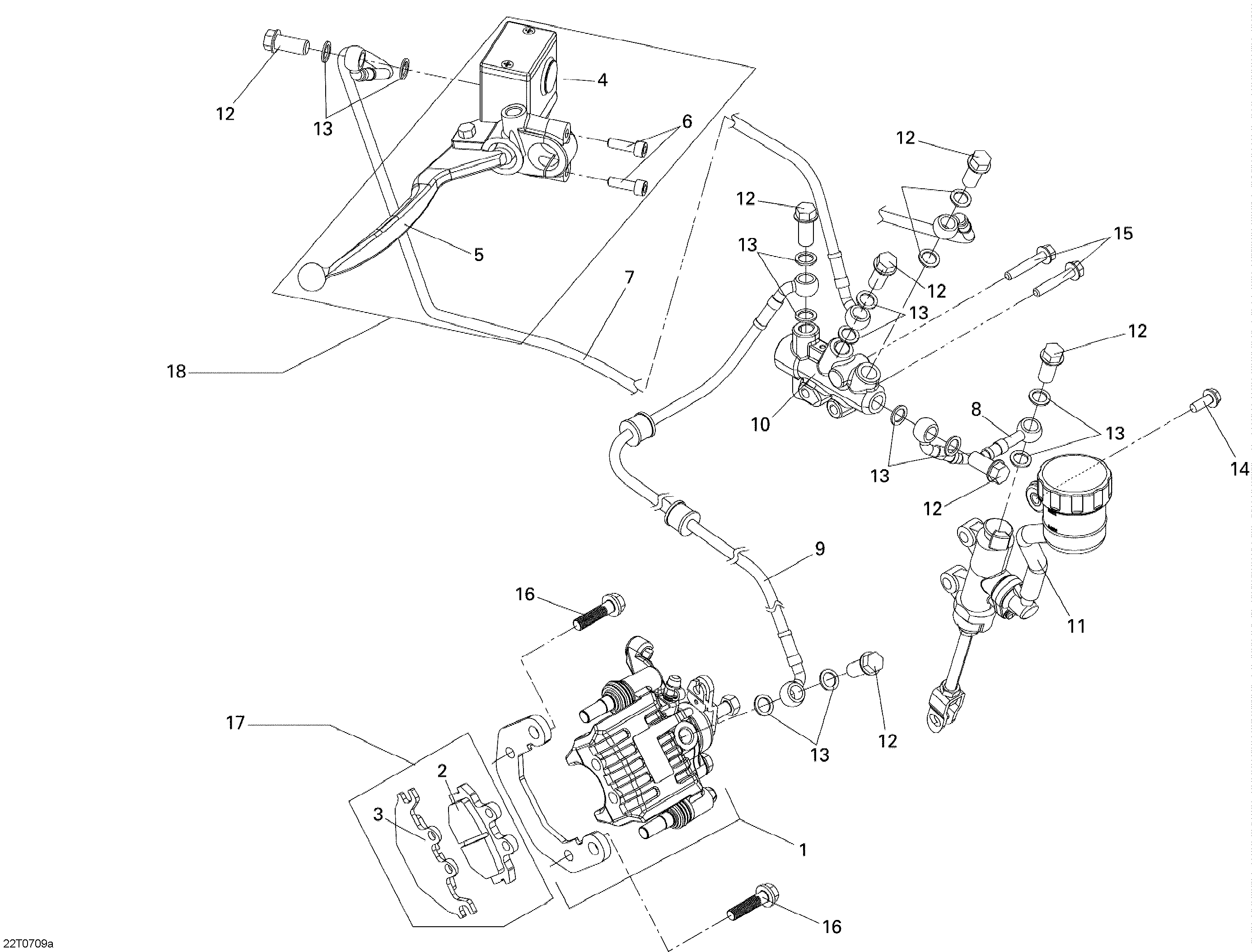

06- Brakes Rear для BRP DS 250, CE - 2007
-
№АртикулНазвание
-
1S43100RCA000 Rear Brake Caliper AssyRear Brake Caliper Assy
-
6S967000602507 Socket Bolt M6 X 25Socket Bolt M6 X 25
-
7S46202RCA000 Brake HoseBrake Hose
-
8S46205RCA000 Brake HoseBrake Hose
-
9S46206RCA000 Rear Brake Caliper HoseRear Brake Caliper Hose
-
10S46300RA1000 Pressure Control ValvePressure Control Valve
-
11S46500RCA000 Foot Master Cylinder AssyFoot Master Cylinder Assy
-
12S90145M9Q000 Banjo BoltBanjo Bolt
-
13S90545M9Q000 WasherWasher
-
14S958010601807 Flanged Bolt M6 X 18Flanged Bolt M6 X 18
-
15S958010604007 Flanged Bolt M6 X 40Flanged Bolt M6 X 40
-
16S958010803007 Flanged Bolt M8 X 30Flanged Bolt M8 X 30
-
17S4311ARCA000 Rear Brake Pad KitRear Brake Pad Kit
-
18S43500RCA000 Rear Master Cylinder Ass'yRear Master Cylinder Ass'y
