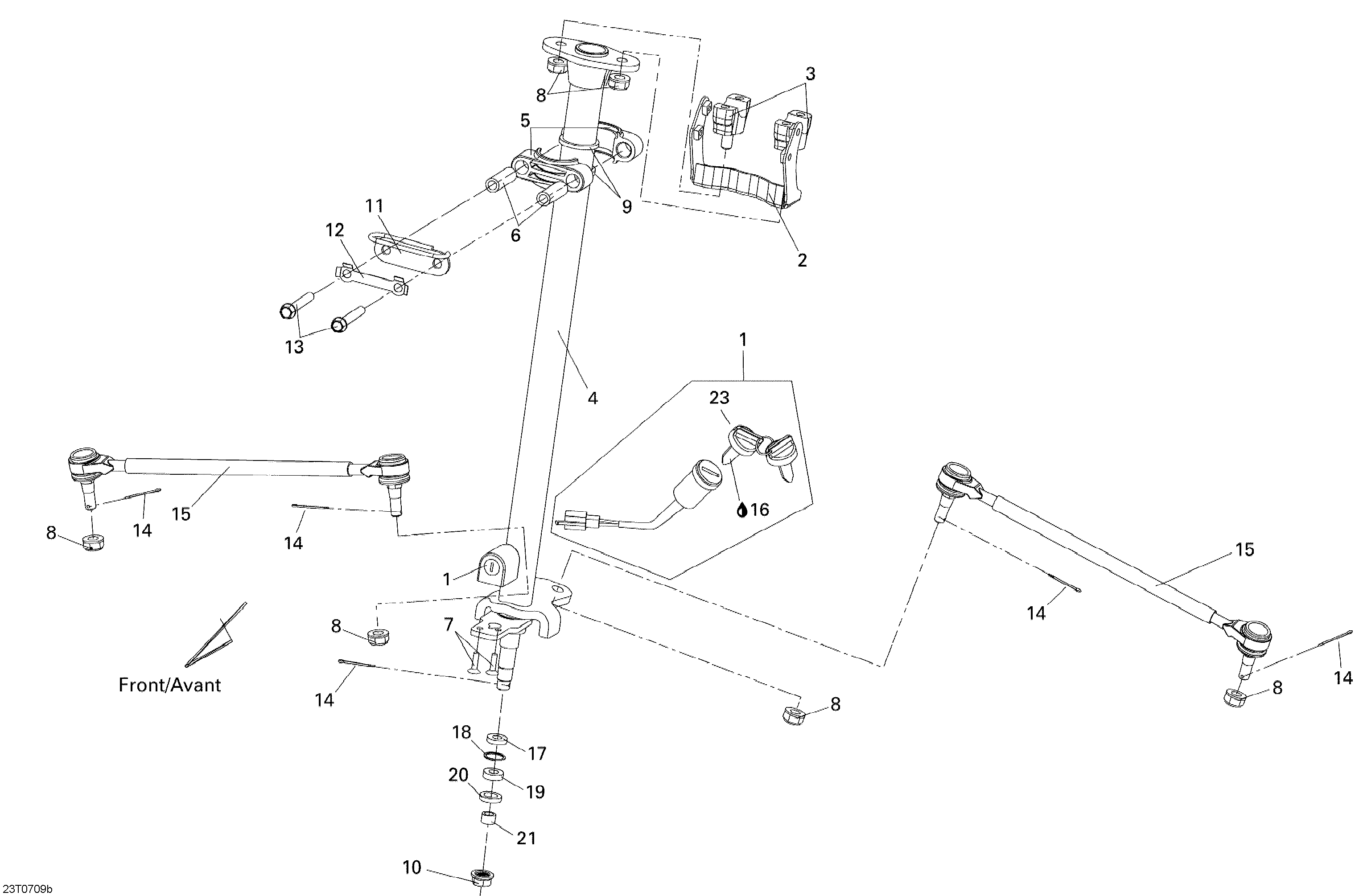

07- Steering Linkage для BRP DS 250, CE - 2007
-
№АртикулНазвание
-
1S35010RCA000 Ignition Switch And Key SetIgnition Switch And Key Set
-
2S53106RCA000 Speedometer SupportSpeedometer Support
-
3S53121RCA000 Handle Bar Bottom ClampHandle Bar Bottom Clamp
-
4S53200RCA000 Steering ShaftSteering Shaft
-
5S53202RCA000 Half BushingHalf Bushing
-
6S53203RCA000 BushingBushing
-
7S90164X01000 Flat Lock Screw M6 X 12Flat Lock Screw M6 X 12
-
8S90304M9Q000 Flange U Nut 10 mmFlange U Nut 10 mm
-
9S91208RCA000 Oil SealOil Seal
-
10S90305GW0901A Self Lock Nut 14 mmSelf Lock Nut 14 mm
-
11S53204RCA000 Steering Shaft Holder PlateSteering Shaft Holder Plate
-
12S53206RCA000 Lock TabLock Tab
-
13S958010806007 Flanged Bolt M8 X 60Flanged Bolt M8 X 60
-
14S9420125250 Split PinSplit Pin
-
15S50258RCA000 Tie-rod Ass'yTie-rod Ass'y
-
16293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
17S91210RCA000 Oil SealOil Seal
-
18S9452032000 CirclipCirclip
-
19S961306002310 Ball BearingBall Bearing
-
20S91211RCA000 Oil SealOil Seal
-
21S53207RCA000 Steering Column CollarSteering Column Collar
-
23S35115RCA0000A Blank Ignition Key ABlank Ignition Key A
-
23S35115RCA0000B Blank Ignition Key BBlank Ignition Key B
-
23S35115RCA0000C Blank Ignition Key CBlank Ignition Key C
-
23S35115RCA0000D Blank Ignition Key DBlank Ignition Key D
