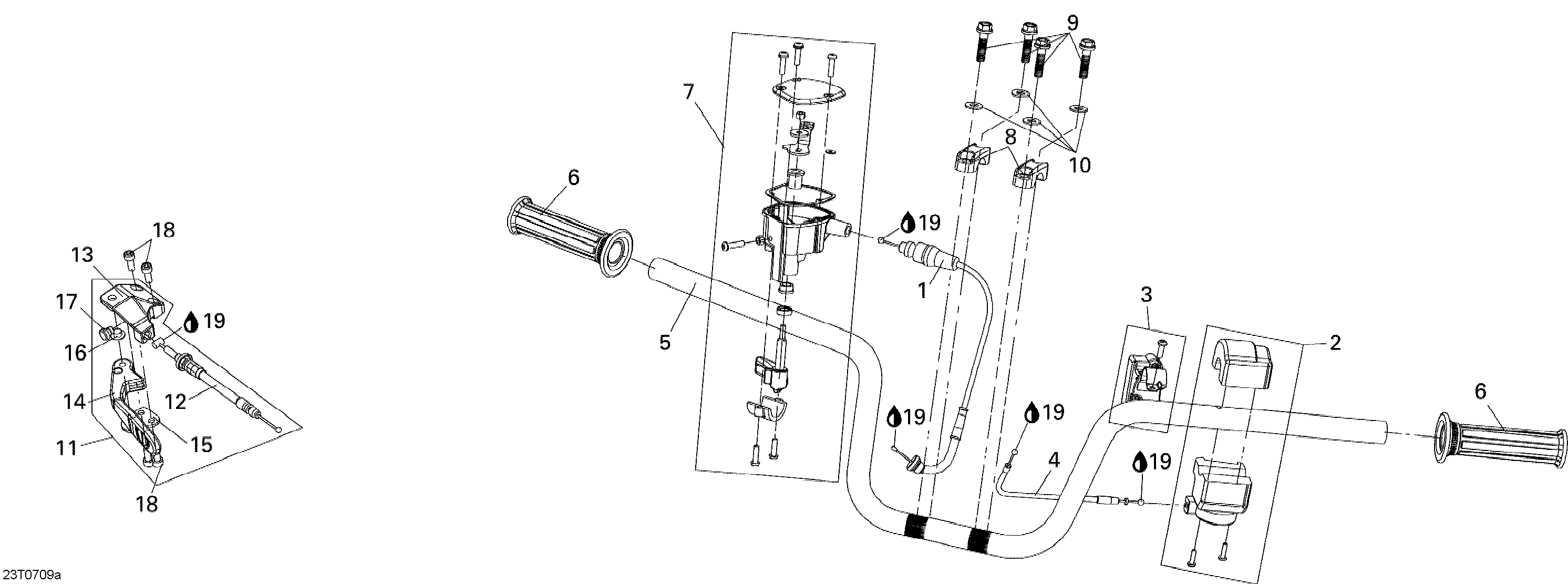

07- Handlebar для BRP DS 250, CE - 2007
-
№АртикулНазвание
-
1S17910RCA000 Throttle CableThrottle Cable
-
2S35200RCA000 Multifunction Switch Assy.Multifunction Switch Assy.
-
3S35250RCA000 Auxiliary Switch Ass'yAuxiliary Switch Ass'y
-
4S44850RCA000 Choke CableChoke Cable
-
5S53100RCA000 Handle BarHandle Bar
-
6S53166N01000 Handle GripHandle Grip
-
7S53190RCA000 Throttle Lever Ass'yThrottle Lever Ass'y
-
8S53131RCA000 Handle Pipe Up HolderHandle Pipe Up Holder
-
9S958010803507 Flanged Bolt M8 X 35Flanged Bolt M8 X 35
-
10S9410108700 Washer 8 mmWasher 8 mm
-
12S45450RCA000 Parking Brake CableParking Brake Cable
-
13S53170RCA000 Parking Brake Lever HousingParking Brake Lever Housing
-
14S53171RCA000 Parking Brake LeverParking Brake Lever
-
15S53172RCA000 Parking Brake Lever HingeParking Brake Lever Hinge
-
16S53173RCA000 Parking Brake Lever HingeParking Brake Lever Hinge
-
17S53174RCA000 Rubber StopperRubber Stopper
-
18S967000601607 Socket Bolt M6 X 16Socket Bolt M6 X 16
-
19293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
